RF-330NA

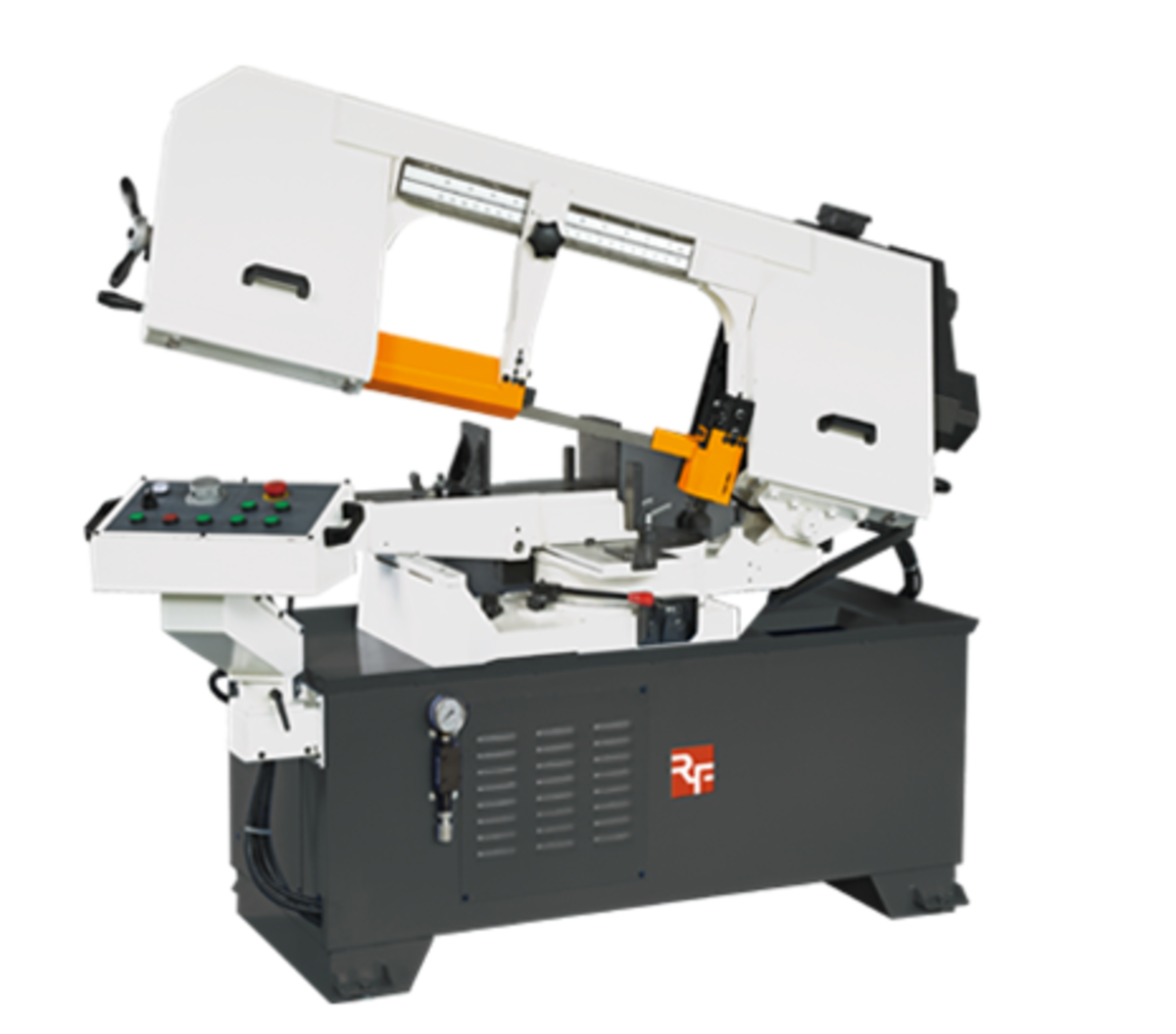

Product Image

New type one-piece stand cooperated with swivel control box for very convenient operation High efficiency gear drive system cooperated to variable step pulley provides fast changing speed Enlarged hydraulic cylinder and buffer spring enhance the cutting stability Tungsten blade guide helps to maintain the cutting stability and extend the blade life Dual swivel cutting angle from 0 to -45 and +60 degrees without moving stock Cleaning hose and nozzle assist in washing chips away Coolant system for wet cutting With Bi-metal blade, chip brush and length stop set Optional selection includes laser indicator and hydraulic tension meter Professional semi-auto hydraulic system can make a perfect cutting cycle with lifting the saw bow to certain height and cutting down

Request Quote on This Model

Technical Specifications

ITEM UNIT RF-330NA
Main Motor HP 2
Speed Mt/min 60HZ / 30~120
Ft/min 50HZ / 25~100
Saw Blade mm (WxTxL) 27x 0.9 x 3810
inch (WxTxL) 1.06 x 0.035 x 150
Machine Dimentions mm (LxWxH) 2030 x 1315 x 1425
inch (LxWxH) 80 x 51.7 x 56.1
Weight NW/GW 610 / 650 kgs
1345 / 1390 lbs
PACKING DIMENSIONS mm (LxWxH) 2120 x 940 x 1515
inch (LxWxH) 83.5 x 37 x 60

CUTTING CAPACITY
