RF-250N

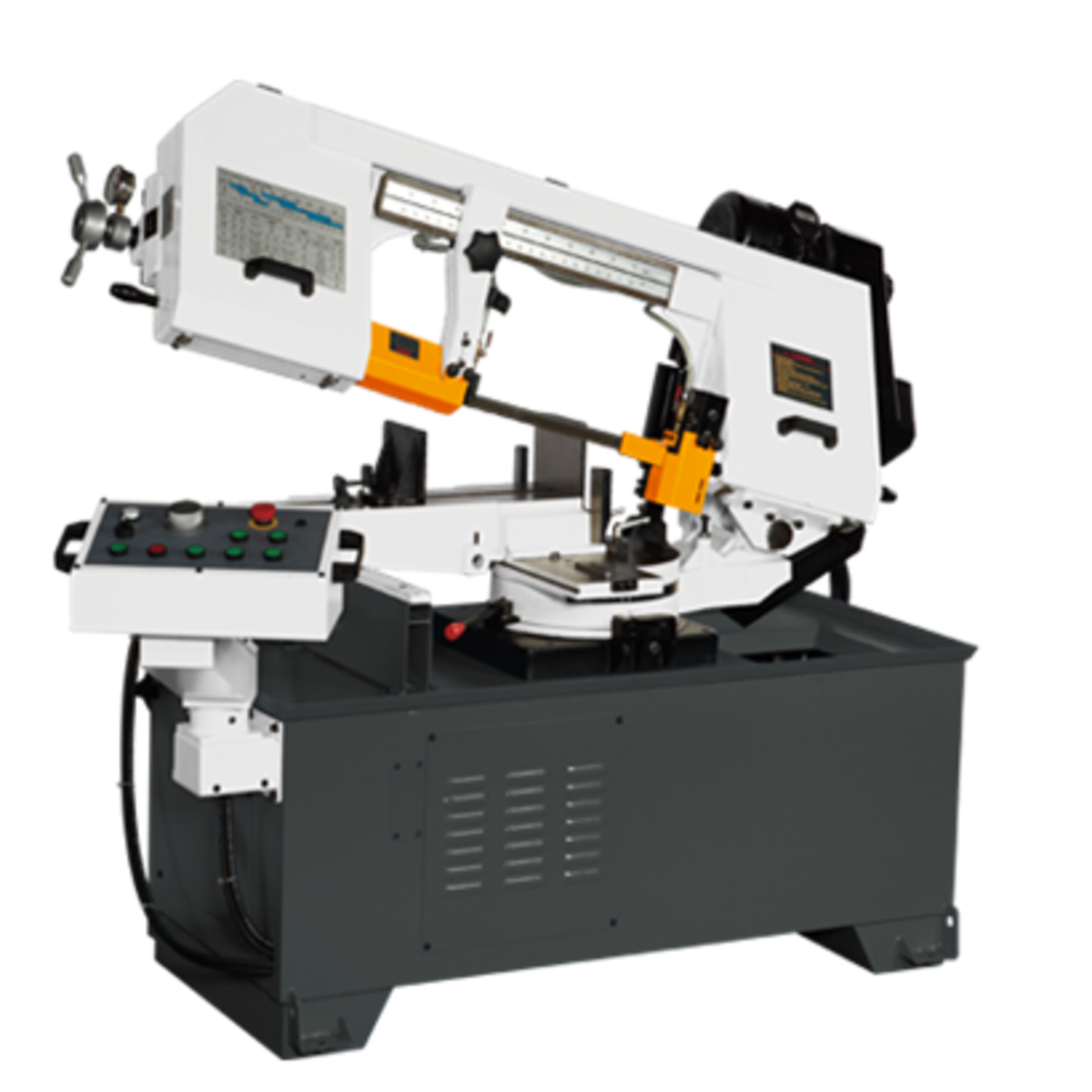

Product Image

The chip tray stand is jointed with saw base. It can swivel with saw bow and no need to move the workpiece. Fully adjustable hydraulic downfeed controls the rate of descent Control panel installed on top of saw bow for more convenient operation High efficiency gear drive system cooperated to variable step pulley provides fast changing speed Dual swivel cutting angle from 0 to -45 and +60 degrees without moving stock Bearing carbide guide enhances cutting stability and extends the blade life Stand jointed with water pan for collecting chips and water Cleaning hose and nozzle assist in washing chips away Coolant system for wet cutting. With Bi-metal blade, chip brush and length stop set CSA Electrics

Request Quote on This Model

Technical Specifications

ITEM UNIT RF-250N
MAIN MOTOR   2HP  3PH
SPEED Mt/min 60HZ / 30~120 ,50HZ / 25~100
Ft/min 60HZ / 98~393 , 50HZ / 81~327
SAW BLADE mm (WxTxL) 27 x 0.9 x 3352
inch (WxTxL) 1.06 x 0.035 x 132
MACHINE DIMENTIONS mm (LxWxH) 1930 x 700 x 1524
inch (LxWxH) 76 x 27.5 x 60
WEIGHT NW/GW 530 / 570 kgs
1165 / 1255 lbs
PACKING DIMENSIONS mm (LxWxH) 1900 x 940 x 1460
inch (LxWxH) 75 x 37 x 58

CUTTING CAPACITY
