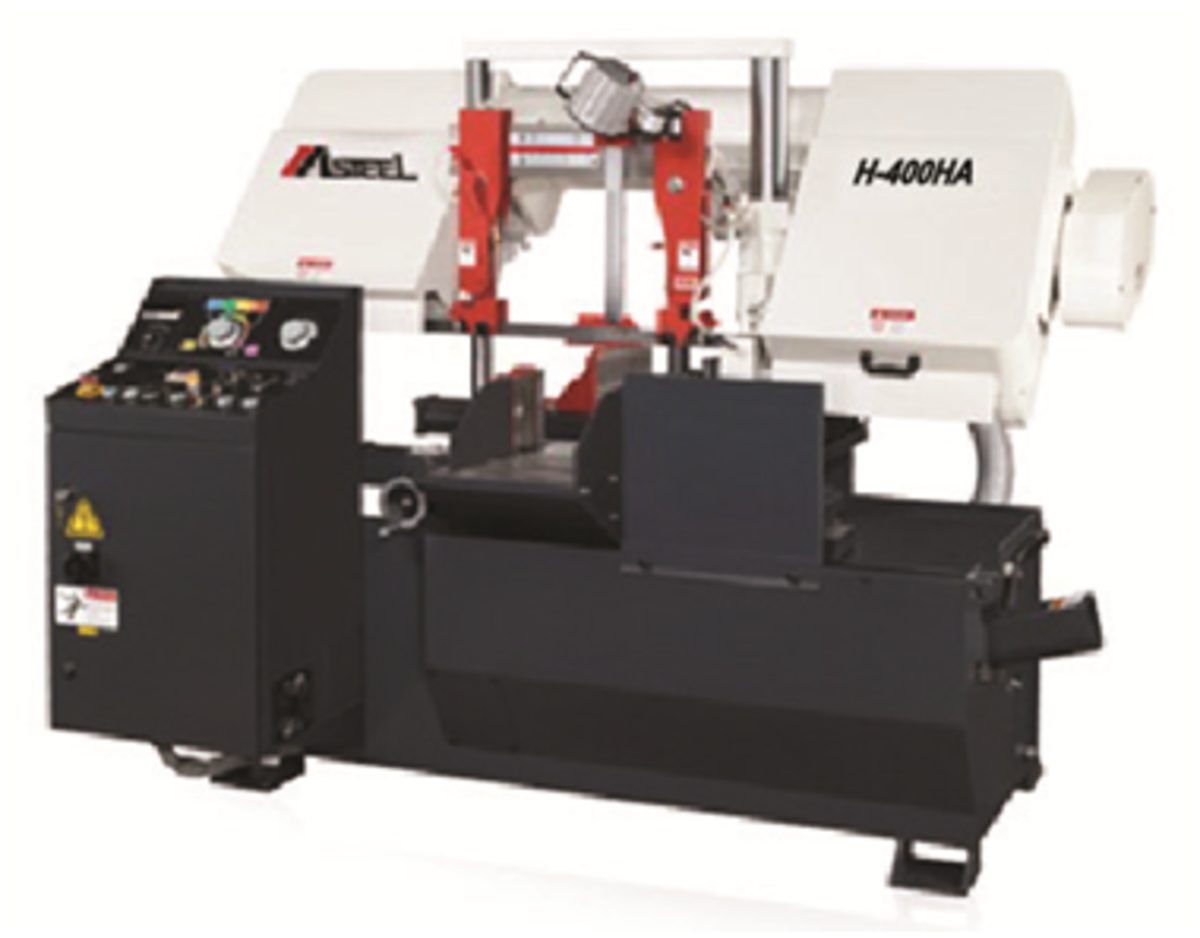

H-400HA

Product Image

Standard Features:

Shuttle Type Automatic Feed

3pcs Carbide blade guide system

Present cut-counter with shut-off

Power Driven Blade Brush

Nesting fixture for bundle cutting

Infinitely variable speed controlled by inverter

Hydraulic Blade Tension

PLC control for all electronic and Hydraulic functions

Work light

Automatic Chipping Conveyor Lead Screw

LED Display of Blade Speed

Check Device of Saw Blade Breaking

Flushing Hose for Machine Cleaning

Multiple Index (9 times)

Automatic Work Height Control and Fast Approach

Split Front Vise

Floating Shuttle Vise

2 M Roller Table

One Bi-Metal Saw Blade

Tool Box

Request Quote on This Model

Technical Specifications

Capacity
Round Bar Dia.  400mm
Square Bar 400x400mm

Blade size 4880 x 41 x 1.3mm
Blade Speed 20-100m/min.
Voltage 415V
Weight 2500kg
Blade Motor 7PH
Hydraulic Pump 1HP
Coolant Pump 1/8 HP

Optional equipment

NC Control System

Full Stroke – Hydraulic Clamping Vise
