H-300HA

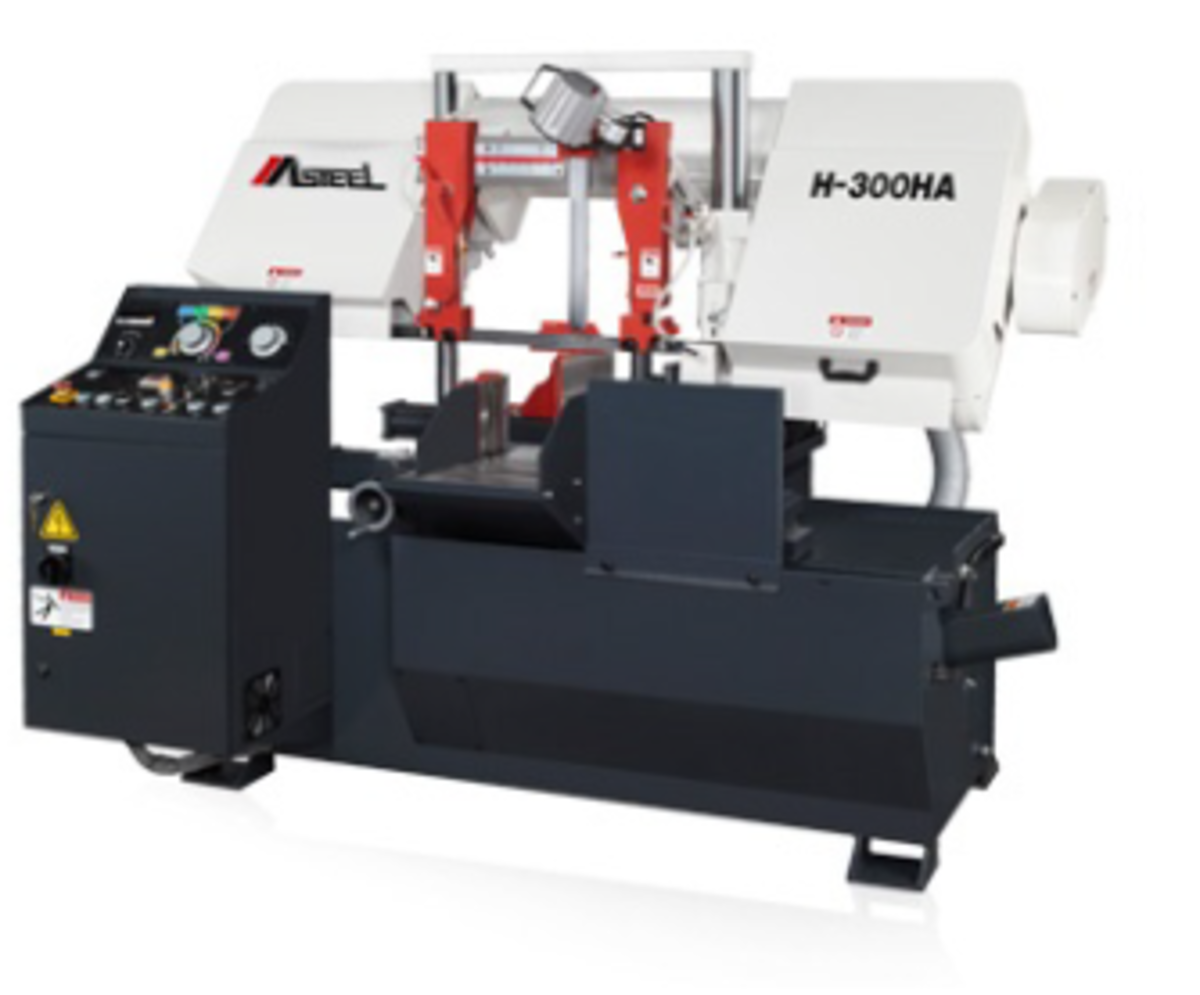

Product Image

Standard Features: Shuttle Type Automatic Feed 3pcs Carbide blade guide system Present cut-counter with shut-off Power Driven Blade Brush Nesting fixture for bundle cutting Infinitely variable speed controlled by inverter Hydraulic Blade Tension PLC control for all electronic and Hydraulic functions Work light Automatic Chipping Conveyor Lead Screw LED Display of Blade Speed Check Device of Saw Blade Breaking Flushing Hose for Machine Cleaning Multiple Index (9 times) Automatic Work Height Control and Fast Approach Split Front Vise Floating Shuttle Vise 2 M Roller Table One Bi-Metal Saw Blade Tool Box

Request Quote on This Model

Technical Specifications

Specifications H-300HA
Capacity
Round Bar Dia.  300mm
Square Bar 300x300mm

Blade size 3920x34xT 1.1mm
Blade Speed 20-100m/min. inverter
Blade Motor 5HP 3PH
Hydraulic Pump 1HP
Coolant Pump 1/8 HP

Optional equipment

NC Control System

Full Stroke – Hydraulic Clamping Vise
