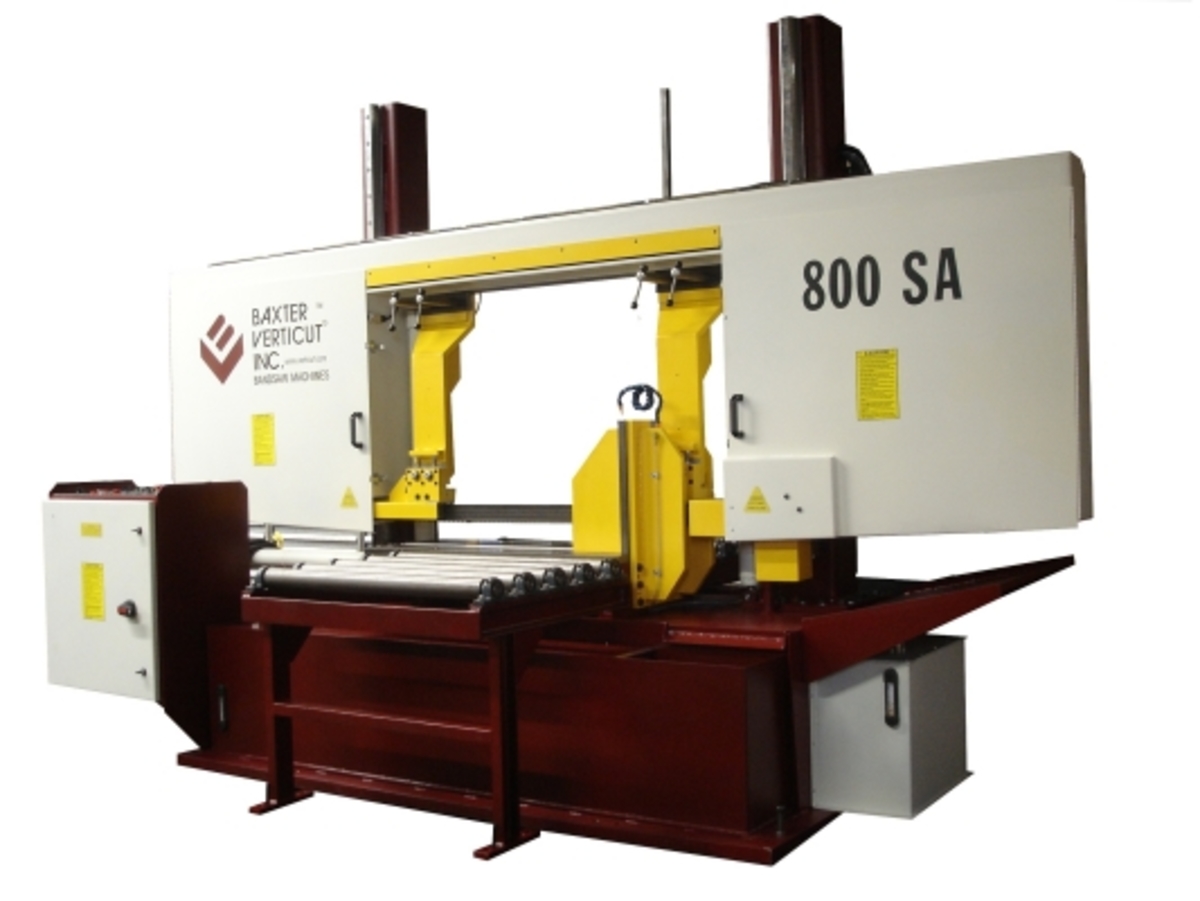

BAXTER 800SA
SEMI-AUTOMATIC HORIZONTAL BANDSAW
The model 800SA is a large capacity machine designed for cutting solids. The machine uses a 2⅝” (67mm) blade.
The blade drive is a heavy-duty high torque, planetary-style gearbox.
The motor is mounted directly on the gearbox eliminating the use of belts.
Request Quote on This Model
Table Specification
| CUTTING CAPACITY | |
| Round | 32″ (810 mm) |
| Square | 32″ (810 mm) |
| SPECIFICATIONS | |
| Blade Size | 2 5/8″ x 26′ 6” (67 x 8077 mm) |
| Blade Speeds | 60 to 340 ft/min (18 to 104 m/min) |
| Blade Tension (hydraulic) | 30,000 psi (207 MPa) |
| Blade Guides | Carbide with rollers |
| Table Height | 27″ (686 mm) |
| Maximum Work Load | 7,500 lb. (3400 kg) |
| Machine Weight | 6,500 lb. (2950 kg) |
| Overall Dimensions | 155”x82”x98”(3937x2080x2490mm) |
| DRIVE | |
| Blade Drive | 10 Hp (15 kW) |
| Hydraulic Drive | 3 Hp (2.25 kW) |
| Voltage (three phase) | 460, 575 |
FEATURES INCLUDED AS STANDARD EQUIPMENT
- Double column machine provides maximum capacity and rigidity
- Design utilizes linear bearings for high stiffness and smooth motion
- Hydraulic tensioning of 2-5/8” bandsaw blade
- Hydraulic lift of the saw head
- Saw up travel can be set to minimize distance between the blade and the top of the material
- Saw down travel can be set to allow notching of blocks
- Semi-automatic cut cycle and manual saw control, saw up, rapid saw down, saw cut
- Cutting feed rate hydraulically adjusted
- Load sensing valve stops the feed if the blade starts to overload, typical cutting structural shapes
- Magnetic motor starter with automatic shut off at the end of cut, motors thermal overload protection
- Blade speed controlled by a variable frequency drive
- Lockable power disconnect on machine
- Blade guards
- Powered blade brush to remove cutting chips
- Split vise design clamps material on both side of blade
- Infeed conveyor and material discharge conveyor
- Alarms for broken blade / under tension and doors open
- Steel wheels with ductile iron hubs
- Blade guides are carbide faced with rollers to remove blade twist and dampen vibration
- Flood coolant system to both saw guides and a adjustable nozzle mounted on stationary vise, all with adjustable flow rates
- Gear box designed for heavy duty bandsaw machines, high efficiency planetary gear system
- All ball bearings are totally enclosed and lubricated for life
- Electric system uses only C.S.A./UL approved components and is electrically approved
- Premium quality bimetal bandsaw blade
- Instruction and parts manual
Options
Conveyor 10’
