BAXTER 700SA

Download
  • BAXTER 700SA

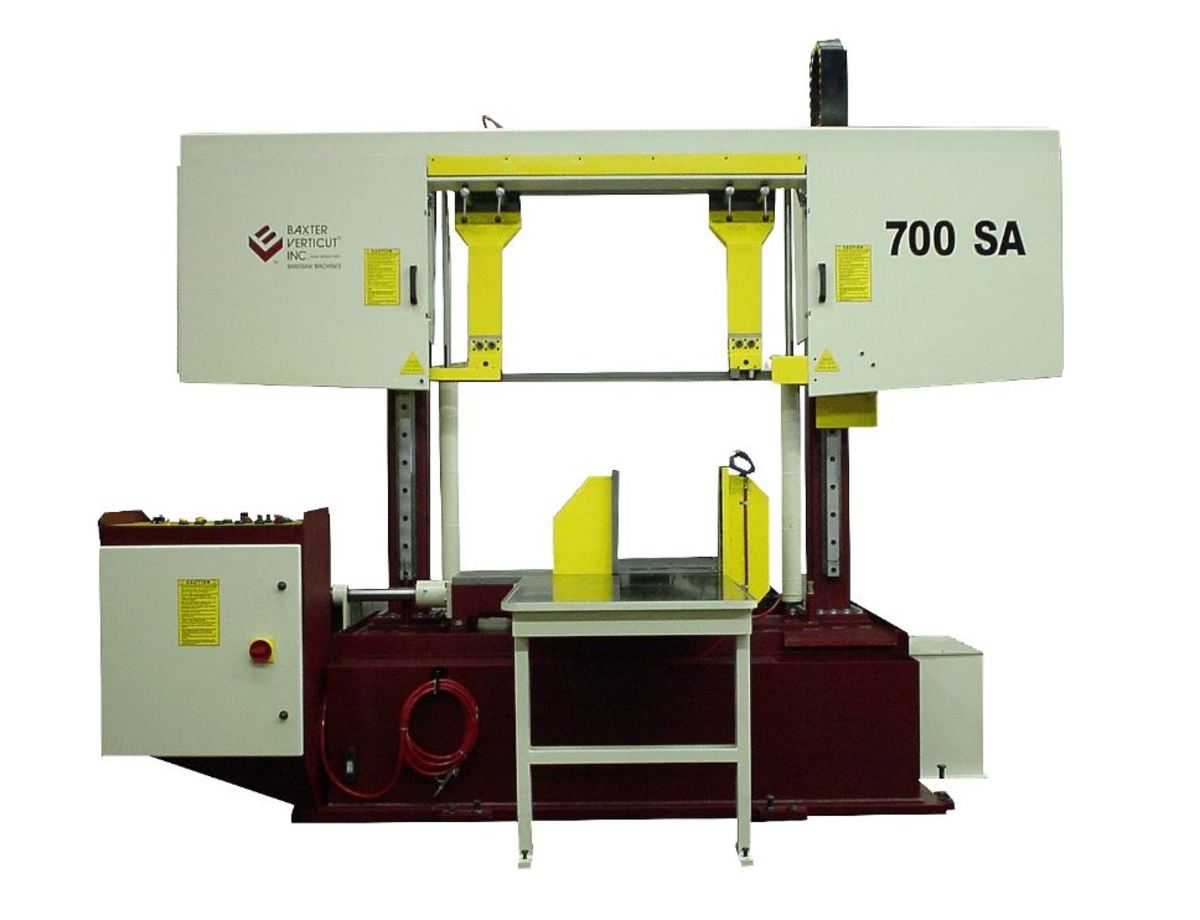

Product Image



SEMI-AUTOMATIC HORIZONTAL BANDSAW


The model 700SA has a large capacity and uses an economical 1½” (41mm) blade.

The split vise clamps on both sides of the blade. Machine is ideal for service centers and pipe cutting.

Request Quote on This Model

Table Specifications

CUTTING CAPACITY
Round 27 1/2″ (700 mm)
Square 27 1/2″ (700 mm)
SPECIFICATIONS
Blade Size 1 1/2″ x 23′ (41 x 7010 mm)
Blade Speeds 60 to 400 ft/min (18 to 122 m/min)
Blade Tension (spring compensated) 30,000 psi (207 MPa)
Blade Guides Carbide with rollers
Table Height 27″ (686 mm)
Maximum Work Load 6,500 lb. (2950 kg)
Machine Weight 4,500 lb. (2045 kg)
Overall Dimensions 12′ x 5′ x 7′ (3650x1520x2130 mm)
DRIVE
Blade Drive 10 Hp (7.5 kW)
Hydraulic Drive 2 Hp (1.5 kW)
Voltages available (three phase) 575 and 460

FEATURES INCLUDED AS STANDARD EQUIPMENT


  • Double column machine provides maximum capacity and rigidity
  • Design utilizes linear bearings for high stiffness and smooth motion
  • Hydraulic lift of the saw head
  • Saw up travel can be set to minimize distance between the blade and the top of the material
  • Saw down travel can be set to allow notching of blocks
  • Semi-automatic cut cycle
  • Manual saw control, saw up, rapid saw down, saw cut
  • Cutting feed rate hydraulically adjusted
  • Load sensing valve stops the feed if the blade starts to overload, typical cutting structural shapes
  • Magnetic motor starter with automatic shut off at the end of cut, motors thermal overload protection
  • Power disconnect on machine
  • Blade guards
  • Powered blade brush to remove cutting chips
  • Split vise design clamps material on both side of blade
  • Infeed conveyor and material discharge table
  • Alarms for broken blade / under tension and doors open
  • Blade guides are carbide faced with rollers to remove blade twist and dampen vibration
  • Flood coolant system to both saw guides and a adjustable nozzle mounted on stationary vise, all with adjustable flow rates
  • Gear box designed for heavy duty bandsaw machines, precision planetary gear system supported on tapered roller bearings, oil bath lubrication
  • All ball bearings are totally enclosed and lubricated for life
  • Electric system uses only C.S.A./UL approved components and is electrically approved
  • Premium quality bimetal bandsaw blade
  • Instruction and parts manual

Options

Hydraulic Vises Full Stroke

Conveyor 10 ft
