BAXTER 700C-HFA

Download
  • BAXTER 700C-HFA

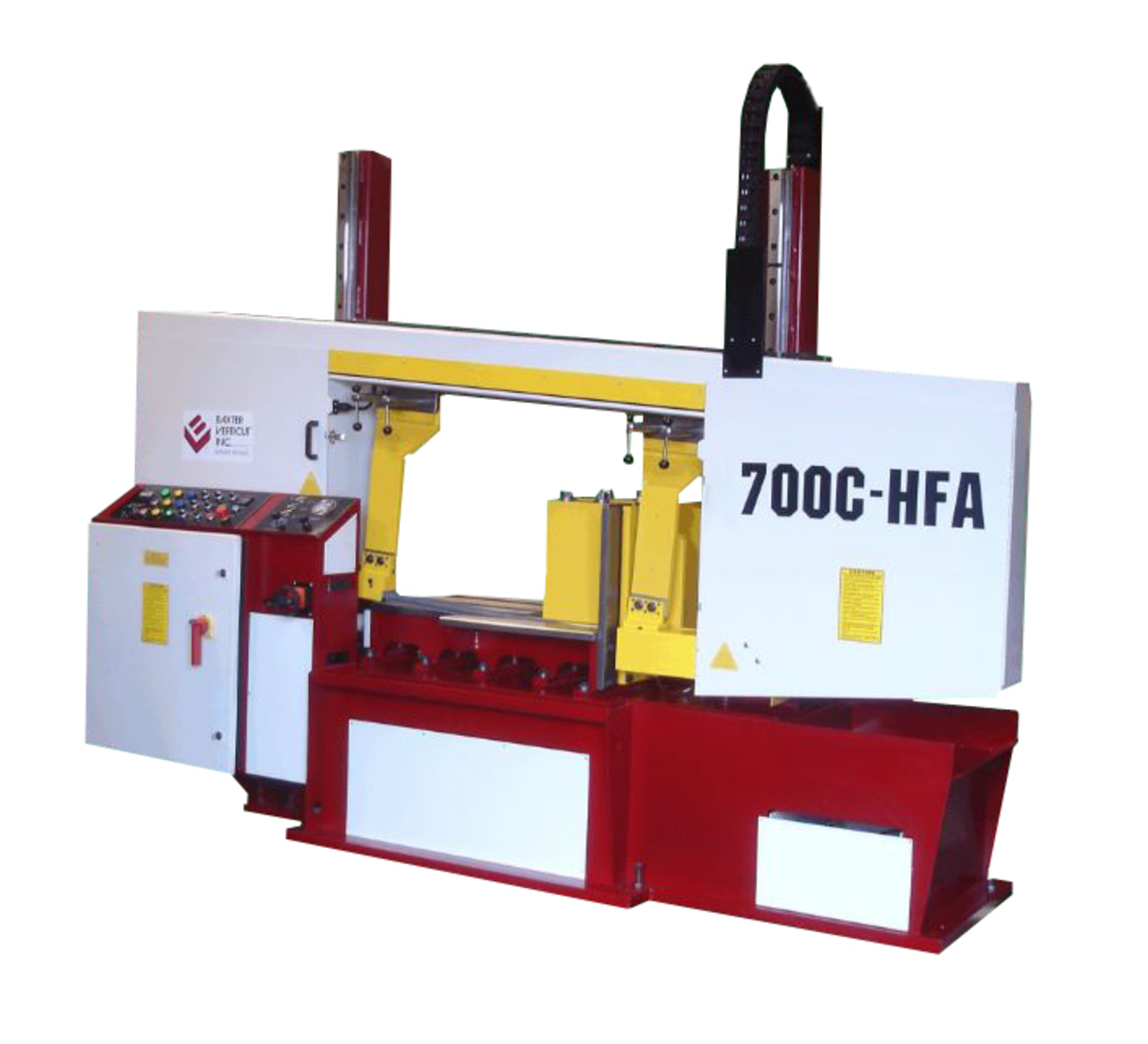

Product Image




FULLY AUTOMATIC HORIZONTAL BANDSAW

Request Quote on This Model

Table Specifications

CUTTING CAPACITY
Round at 90 degrees 26″ (660 mm)
Rectangular 25″ x 28″ (635 x 710 mm)
SPECIFICATIONS
Blade size 1 1/2″ x 23′ (41 x 7010 mm)
Blade speeds (ft/min) 60 to 400 (18 to 122 m/min)
Blade tension (spring compensated) 25,000 psi
Table height 30″ (686 mm)
Maximum work load 12,000 lb. (5450 kg)
Machine weight 8,700 ln/ (4400 kg)
Overall dimensions 128″ x 97″ (3250 x 2460 x 2500 mm)
DRIVE
Blade drive 10 Hp (7.5 kW)
Hydraulic drive 3 Hp (2.25 kW)
Voltages available (three phase) 575, 460 / 3 phase / 60 Hz

FEATURES INCLUDED AS STANDARD EQUIPMENT

  • Double column machine provides maximum capacity and rigidity
  • Design utilizes linear bearings for high stiffness and smooth motion
  • Hydraulic lift of the saw head
  • Saw up travel can be set to minimize distance between the blade and the
    top of the material
  • Saw down travel can be set to allow notching of blocks
  • Manual saw control, saw up, rapid saw down, saw cut
  • Cutting feed rate hydraulically adjusted
  • Load sensing valve which stops the feed if the blade starts to overload,
    typical when cutting the web of structural shapes
  • Full stroke hydraulic vises
  • Steel wheel swith ductile iron hubs
  • Blade guides are carbide faced with rollers to remove blade twist and
    dampen vibration
  • Flood coolant system to both saw guides with adjustable flow rates
  • Gear box designed for heavy duty bandsaw machines, high efficiency
    planetary drive, oil bath lubrication
  • Electric system uses only C.S.A./UL approved comonents and is
    electrically approved
  • Premium quality bimetal bandsaw blade
  • Instruction and parts manual

Options

CNC controls

Bundle clamping

Variable vise pressure

Conveyor 10 ft long (9 rolls)

Conveyor 20 ft long (17 rolls) with vertical rollers
