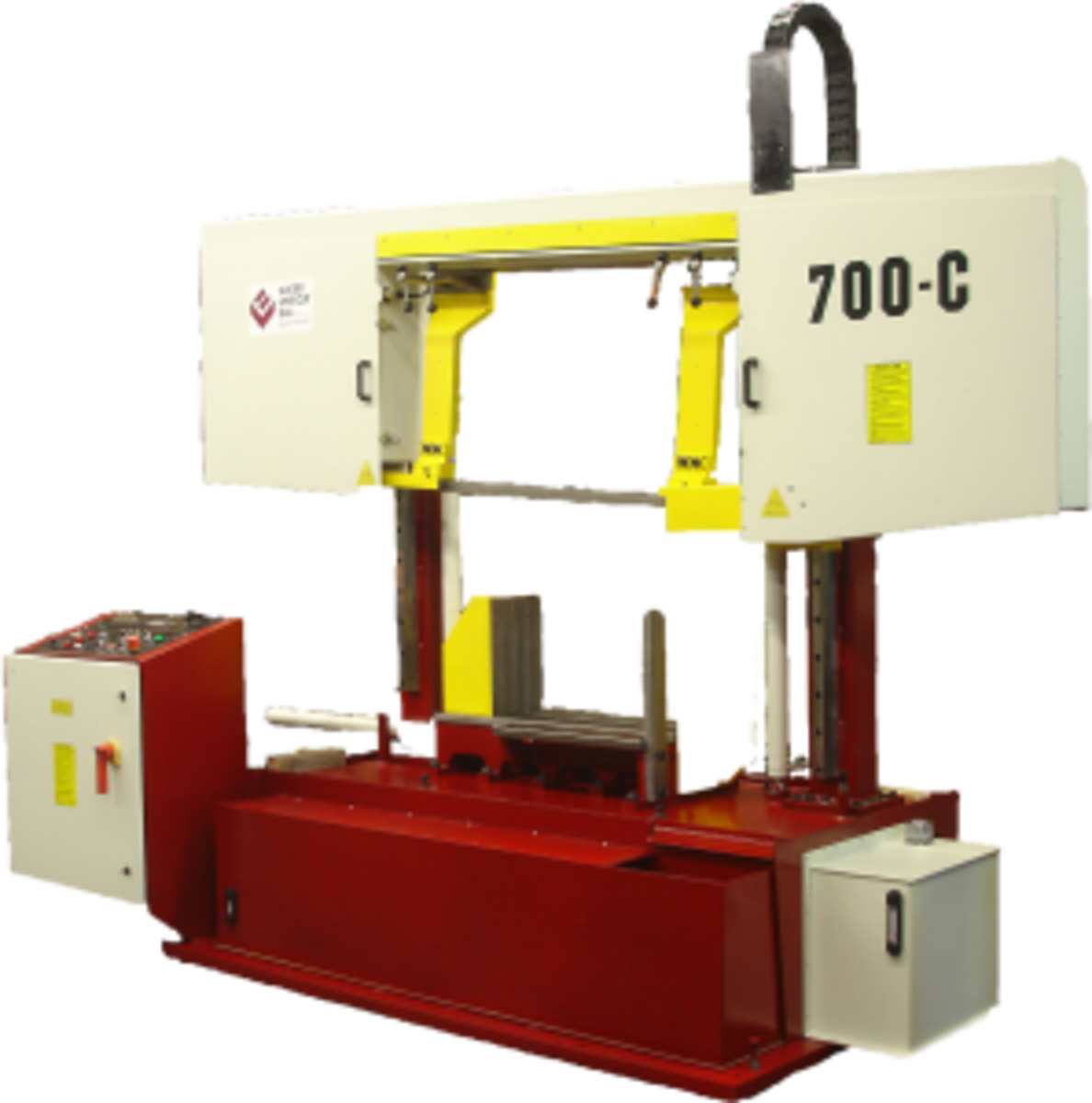

Saws | BAXTER 700C

CUTTING CAPACITY
Round	26″ (660 mm)
Rectangular	25″ x 28″ (635 x 710 mm)
SPECIFICATIONS
Blade size	1 1/2″ x 23′ (38 x 7010 mm)
Blade speeds (ft/min)	60 to 400 (18 to 122 m/min)
Blade tension (spring compensated)	25,000 psi
Table height	30″ (760 mm)
Maximum work load	6,500 lb. (2950 kg)
Machine weight	6,700 lb. (3045 kg)
Overall dimensions	135″ x 94″ x 98″ (3430 x 2390 x 2490 mm)
DRIVE
Blade drive	10 Hp (7.5 kW)
Hydraulic drive	2 Hp (1.5 kW)
Voltages available (three phase)	575, and 460

Double column machines provides maximum capacity and rigidity
Design utilizes linear bearings for high stiffness and smooth motion
Blade is canted at 4 degrees to aid in cutting structural steel
profiles
Hydraulic lift of the saw head
Saw up travel can be set to minimize distance between the blade and the
top of the material
Semi-automatic cut cycle
Manual saw control, saw up, rapid saw down, saw cut, vise open and vise
close
Cutting feed rate hydraulically adjusted
Load sensing valve stops the feed if the blade starts to overload,
typical cutting structural shapes
Magnetic motor starter with automatic sht off at the end of cut, motors
thermal overload protection
Manually adjusted vise
Powered blade brush to remove cutting chips
In-feed and out-feed conveyor
Warnings for broken blade and doors open
Steel wheels with ductile iron hubs
Blade guides are carbide faced with rollers to remove blade twist and
dampen vibration
Flood coolant system to both saw guides and an adjusted nozzle mounted on
stationary vise, adjustable flow rates
Direct blade drive using a planetary gear box for a high efficiency
drive
Electric system uses only C.S.A./UL approved components
Premium quality bimetal bandsaw blade
Instruction and parts manual

Hydraulic full stroke vise

Bundle clamping

Variable vise pressure

Laser light cut indicator

Blade on hour meter

Conveyor 10 ft long

Conveyor 20 ft long

Powered conveyor 10 ft long

Work light
