BAXTER 600SA

Download
  • BAXTER 600SA

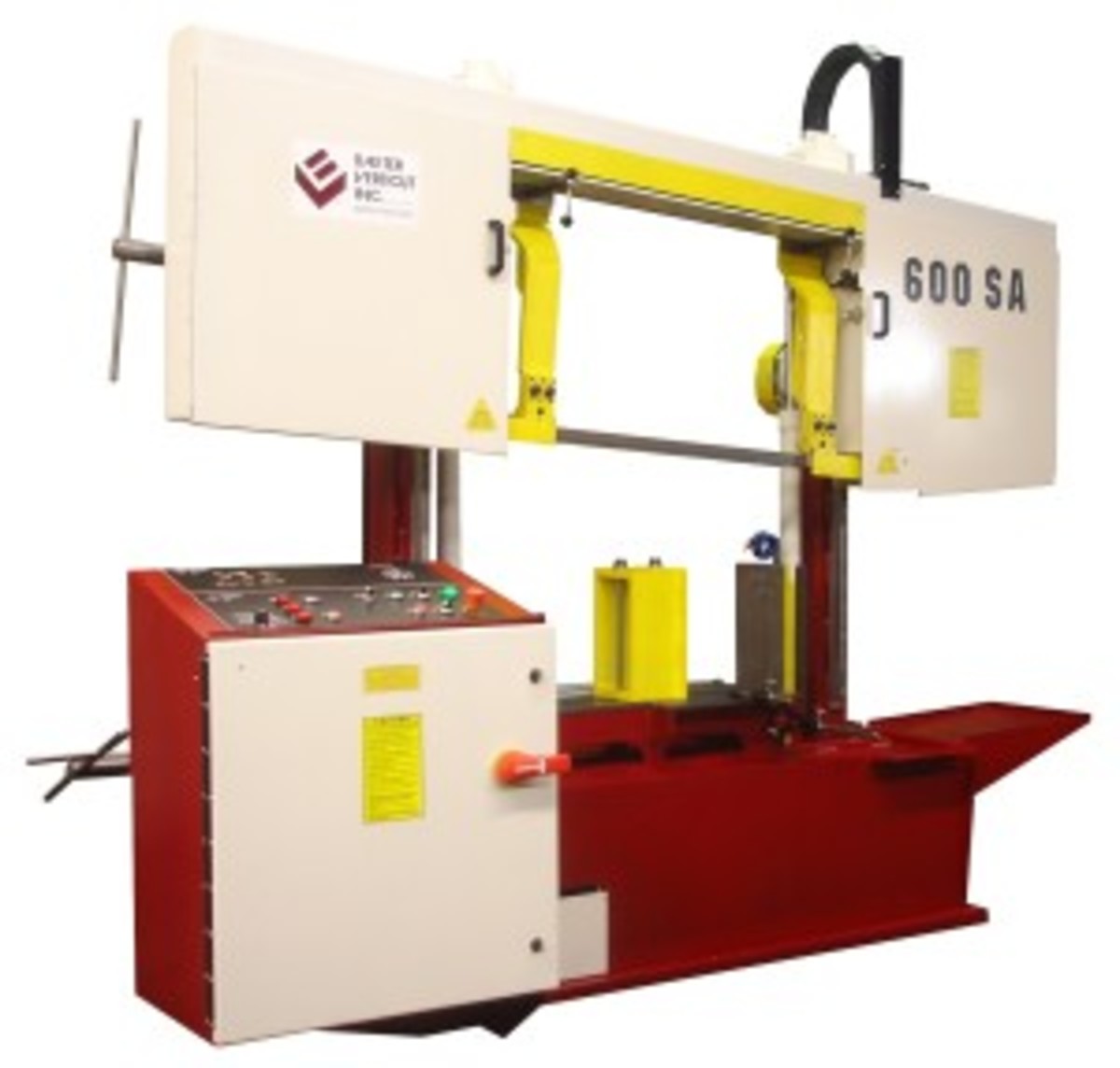

Product Image



SEMI-AUTOMATIC HORIZONTAL BANDSAW

Request Quote on This Model

Table Specifications

CUTTING CAPACITY
Round 24″ (610 mm)
Rectangular 22″ x 28″ (560 x 710 mm)
SPECIFICATIONS
Blade size 1 1/2″ x 20′ (41 x 6096 mm)
Blade speeds (ft/min) 60 to 360 ft/min (18 to 110 m/min)
Blade tension (hydraulic) 25,000 psi
Blade guides Carbide with rollers
Table height 26 1/4″ (665 mm)
Maximum work load 6,000 lb. (2700 kg)
Machine weight 4,100 lb. (1860 kg)
Overall dimensions 119″ x 64″ x 84″ (3020 x 1620 x 130 mm)
DRIVE
Blade drive 7.5 Hp (5 kW)
Hydraulic drive 1 Hp (2.2 kW)
Voltages available (three phase) 575, and 460

FEATURES INCLUDED AS STANDARD EQUIPMENT

  • Double column machine provides maximum capacity and rigidity
  • Blade canted at 4 degrees to aid in cutting structural steel and
    flats
  • Design utilizes linear bearings for high stiffness and smooth motion
  • Electronic variable speed drive
  • Blade breakage and open door shut off with warning indicator
  • Hydraulic lift of the saw head
  • Saw up travel can be set to minimize distance between the blade and the
    top of the material
  • Saw down travel limit can be set
  • Semi-auomatic cut cycle. Manual saw control, saw up, rapid saw down, saw
    cut
  • Cuting feed rate hydraulically adjusted
  • Load sensing valve stops the feed if the blade starts to overload,
    typical when cutting the web of structural shapes
  • Magnetic motor starter with shut off at the end of the cut, motors
    thermal overload protection
  • Power disconnect on machine
  • Blade guard. Powered blade brush
  • Manually adjusted vise
  • Adjustable material length stop for repetitive cutting
  • Steel wheels with ductile iron hubs
  • Blade guides are carbide faced with rollers to remove blade twist and
    dampen vibration
  • Flood coolant system to both saw guides with adjustable flow rates
  • Direct blade drive using a planetary gearbox for a high efficiency
    drive
  • Electric system uses only C.S.A./UL approved components and is
    electrically approved
  • Premium quality bimetal bandsaw blade
  • Instruction and parts manual

Options

Hydraulic vise

Variable vise pressure

Laser light cut indicator

Conveyor 10 ft long
