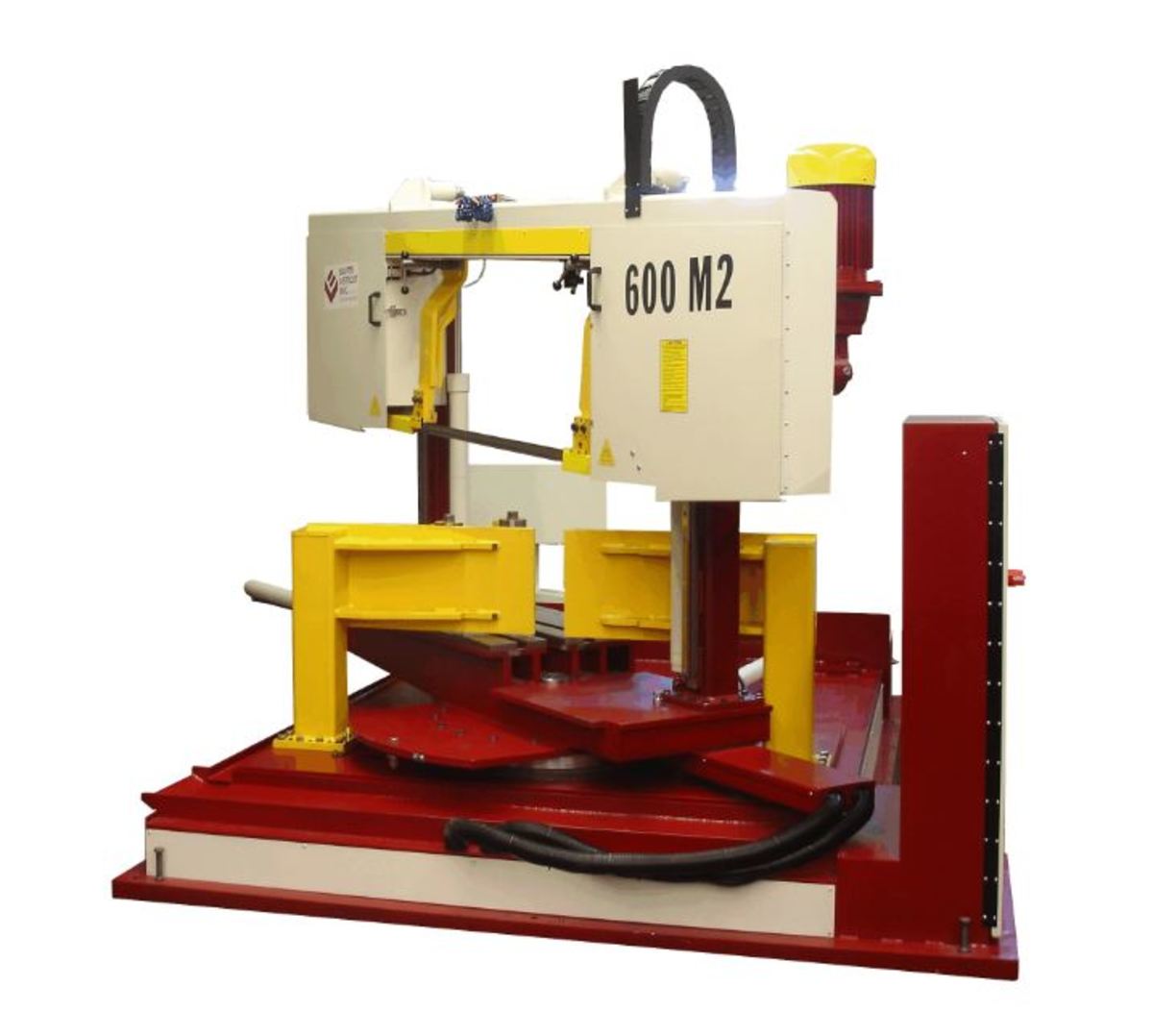

BAXTER 600M2
HORIZONTAL DOUBLE COLUMN MITERING BANDSAW
Request Quote on This Model
Table Specifications
| CUTTING CAPACITY | |
| Round | 24″ (610 mm) |
| Rectangular | 20″ x 30″ (510 x 760 mm) |
| Rectangular at 45 degrees | 17″w x 20″h (445 mm x 510 mm) |
| Rectangular at 60 degrees | 10″w x 20″h (255 mm x 510 mm) |
| SPECIFICATIONS | |
| Blade size | 1 1/2″ x 22″ (41 x 6705 mm) |
| Blade speeds (ft/min) | 70 to 400 ft/min (21 to 122 m/min) |
| Blade tension (hydraulic) | 25,000 psi |
| Blade guides | Carbide with rollers |
| Table height | 26 1/4″ (665 mm) |
| Maximum work load | 10,000 lb. (4545 kg) |
| Machine height | 9,000 lb. (4090 kg) |
| Overall dimensions | 12″x12″x7″ (3660x3660x2150 mm) |
| DRIVE | |
| Blade drive | 10 Hp (7.5kW) |
| Hydraulic drive | 3 Hp (2.2kW) |
| Voltages available (three phase) | 575 and 460 |
FEATURES INCLUDED AS STANDARD EQUIPMENT
- Double column machine provides maximum capacity and rigidity
- Miter cutting to the front 45 degrees and rear 60 degrees
- Hydraulic tilt of saw head with digitial display with preset pause. Tilt
has variable speed to aid in accurate positioning - Blade canted at 4 degrees to aid in cutting structural steel and
flats - Design utilizes linear bearings for high stiffness and smooth motion
- Stationary front and rear horizontal vises
- Full stroke hydraulic vises on both sides of the blade with variable vise
pressure - Hydraulic lift of the saw head
- Saw up travel can be set to minimize distance between the blade and the
top of the material - Saw down travel limit can be set
- Cutting feed rate hydraulically adjusted
- Rapid down to prevent unnecessary adjustment of the feed rate
- Load sensing valve stops the feed if the blade starts to overload,
typical when cutting the web of structural shapes - Steel wheels with ductile iron hubs
- Blade guides are carbide faced with rollers to remove blade twist and
dampen vibration - Flood coolant system to both saw guides with adjustable flow rates
- Gearbox designed for heavy-duty bandsaw machines, high efficieny
planetary drive, oil bath lubrication - Control panel mounted on pivot to aid operator positioning
- Electric system uses only C.S.A./UL approved components and is
electrically approved - Premimum quality bimetal bandsaw blade
- Instruction and parts manual
Options
Laser light cut indicator
Conveyor 10' long
Powered conveyor 10' long
