BAXTER 475X1000SA

Download
  • BAXTER 475X1000SA

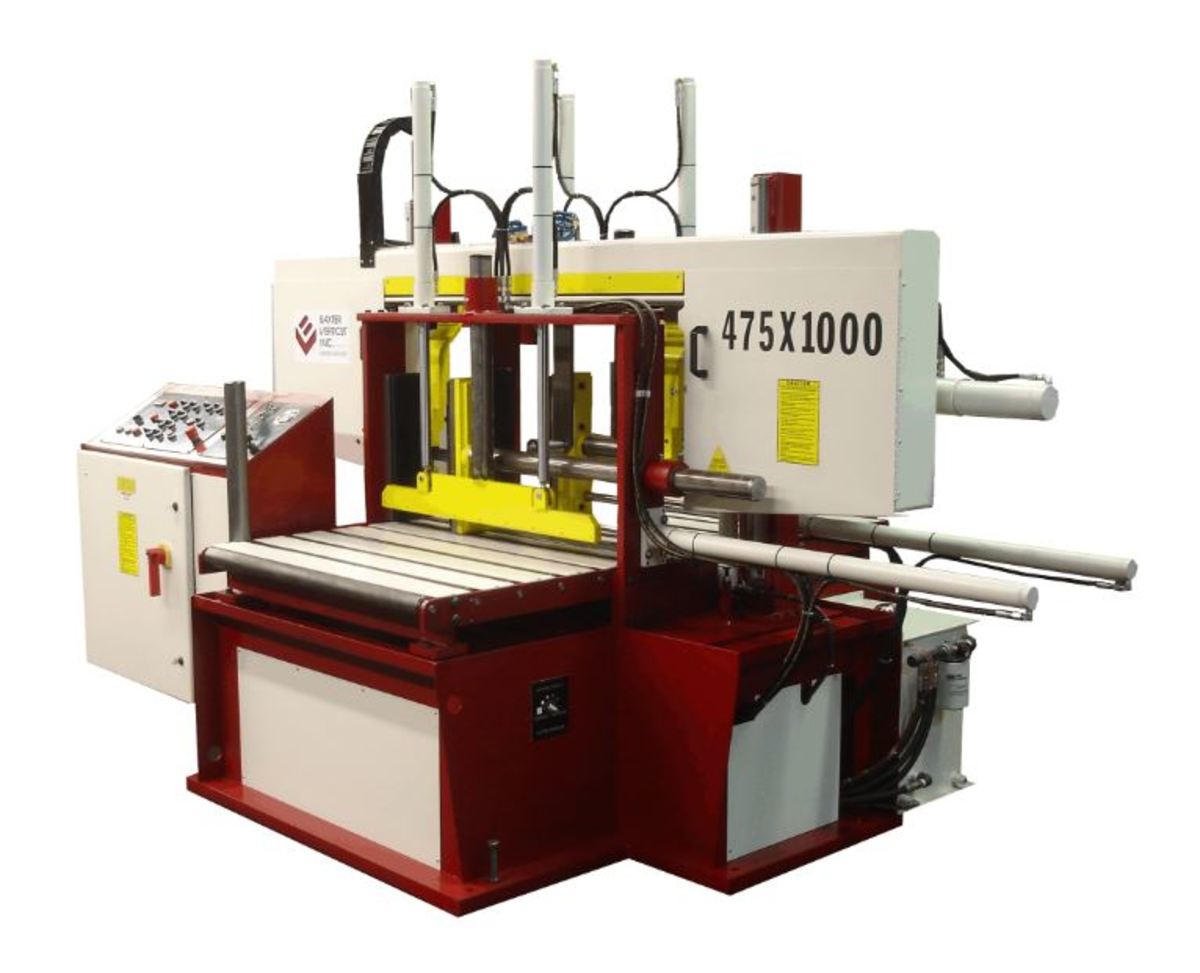

Product Image



SEMI-AUTOMATIC HORIZONTAL BANDSAW

Request Quote on This Model

Table Specifications

CUTTING CAPACITY
Round 18″ (460 mm)
Rectangular 18″ x 36″ (460 x 915 mm)
SPECIFICATIONS
Blade Size 1 1/2″ x 18′ 8″ (38 x 5690 mm)
Blade Speeds (ft/min) 60 to 400 (18 to 122 m/min)
Blade Tension (spring compensated) 25,000 psi
Table Height 30″ (760 mm)
Maximum Work Load 7,000 lb. (3180 kg)
Machine Weight 6,300 lb. (2860 kg)
Overall Dimensions 132″ x 74″ x 83″ (3325 x 1880 x 2110 mm)
DRIVE
Blade Drive 7.5 Hp (6 kW)
Hydraulic Drive 2 Hp (2.25 kW)
Voltages Available (three phases) 575, and 460

FEATURES INCLUDED AS STANDARD EQUIPMENT

Double column machine provides maximum capacity and rigidity

 Design utilizes linear bearings for high stiffness and smooth motion

 Hydraulic lift of the saw head

 Saw up travel can be set to minimize distance between the blade and the top of the material

 Saw down travel can be set to allow notching of blocks

 Electronic variable speed drive, panel adjustable

 Manual saw control, saw up, rapid saw down, saw cut, vises open/close, shuttle advance/retract

 Cutting feed rate hydraulically adjusted

 Load sensing valve, which stops the feed if the blade starts to overload, typical when cutting structural shapes.

 Roller on top of blade located at the mid stroke to dampen vibration.

 Full stroke hydraulic vises top and side.

 Top vises on both sides of blade replaceable heavy flexible strip to clamp uneven material

 Vises have variable clamping pressure.

 In feed and discharge conveyor table 37” wide by 24” long

 Steel wheel with ductile iron hubs

 Blade guides are carbide faced with rollers to remove blade twist and dampen vibration

 Adjustable flood coolant system to both saw guides and separate nozzle to allow coolant to center of cut

 High efficiency direct drive planetary gear drive system

 Electric system uses only C.S.A./UL approved components and is electrically approved

 Premium quality bimetal bandsaw blade, Instruction and parts manual

Options

Out Feed Horizontal and Vertical Vise

Rubber Face Horizontal Vise Jaws

Hydraulic Blade Tension

Laser Light Cut Indicator

Conveyor 10'

Conveyor Table With Infill Between Rollers

Powered Conveyor 10'
