BAXTER 475SA

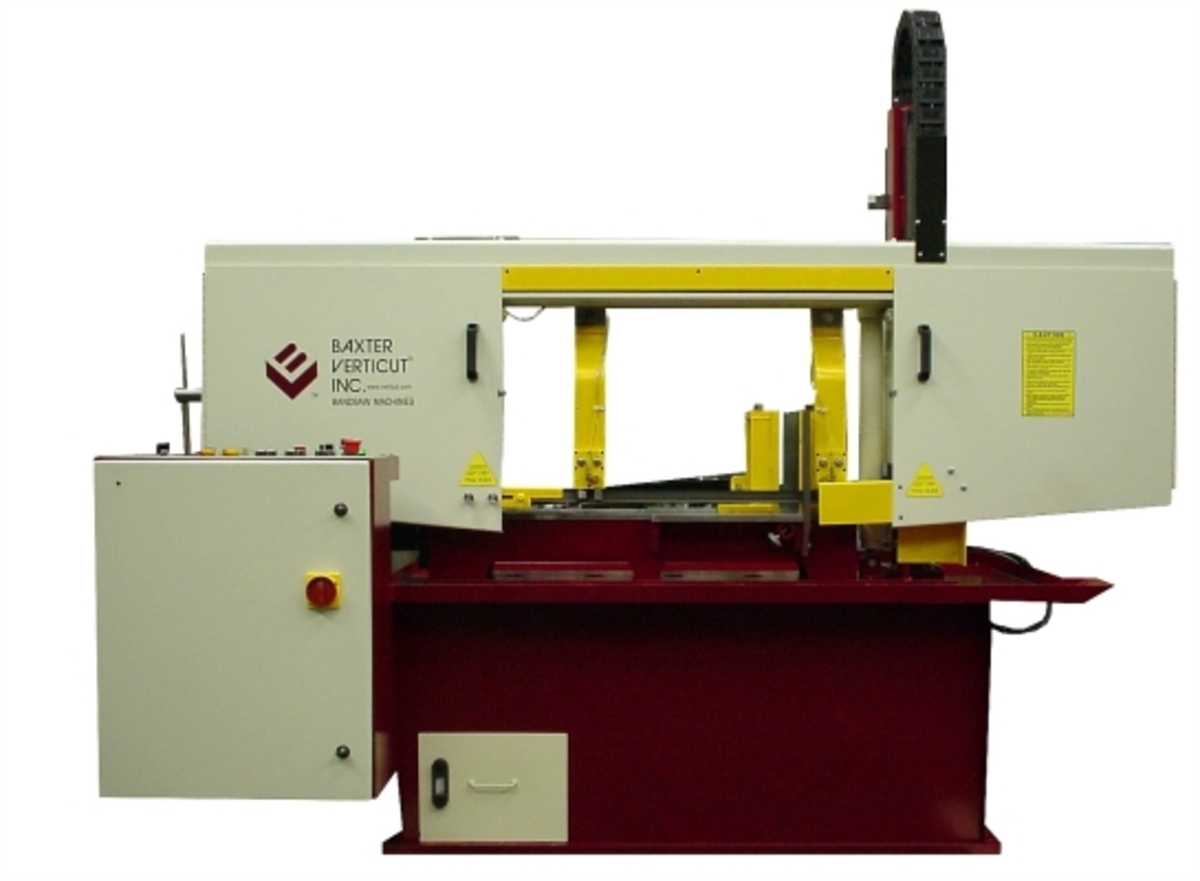

Product Image


SEMI-AUTOMATIC HORIZONTAL BANDSAW

The model 475SA has a large capacity for cutting structural profiles and pipes.

Uses a 1¼” (34mm) blade drive by a 5 hp (3.75 kW) motor. Drive system is a high efficiency planetary gearbox and a directly mounted motor (no belts).

Speed is variable controlled by a variable frequency drive.

Request Quote on This Model

Specifications

CUTTING CAPACITY
Round 18″ (475 mm)
Round at 45 degrees 13 3/8″ (340 mm)
Rectangular 18″ x 25″ (475 x 635 mm)
SPECIFICATIONS
Blade Size 1 1/4″ x 16′ 5″ (34 x 5000 mm)
Blade Speeds (continuously variable) 60 to 400 ft/min (18 to 122 m/min)
Blade Tension (spring compensated) 30,000 psi (207 MPa)
Blade Guides Carbide with rollers
Table Height 26 1/4″ (670 mm)
Maximum Work Load 4,500 lb. (2050 kg)
Machine Weight 2,400 lb. (1090 kg)
Overall Dimensions 9′ x 5′ x 8′(2750 x 1500 x 2400 mm)
DRIVE
Blade Drive 5 Hp (3.75 kW)
Hydraulic Drive 1 Hp (.75 kW)
Voltages available (three phase) 575, 460, 230 and 208

FEATURES INCLUDED AS STANDARD EQUIPMENT

  • Double column machine provides maximum capacity and rigidity

    Design utilizes linear bearings for high stiffness and smooth motion

    Electronic variable speed

    Blade breakage and open door automatic shut off with alarm indicator

    Hydraulic lift of the saw head

    Saw up travel can be set to minimize distance between the blade and the top of the material

    Saw down travel can be set to allow notching of blocks

    Semi-automatic cut cycle

    Manual saw control, saw up, rapid saw down, saw cut

    Cutting feed rate hydraulically adjusted

    Load sensing valve stops the feed if the blade starts to overload, typical cutting structural shapes

    Magnetic motor starter with automatic shut off at the end of cut, motors thermal overload protection

    Power disconnect on machine

    Blade guards

    Powered blade brush to remove cutting chips

    Quick acting material clamping

    Miter cuts up to 45 degrees by swiveling vise

    Adjustable material length stop for repetitive cutting

    Blade guides are carbide faced with rollers to remove blade twist and dampen vibration

    Flood coolant system to both saw guides with adjustable flow rates

    Direct blade drive using a planetary gear box for a high efficiency design

    Electric system uses only C.S.A./UL approved components and is electrically approved

    Premium quality bimetal bandsaw blade

    Instruction and parts manual

Options

Hydraulic Vises Full Stroke



Conveyor
