BAXTER 475HFA

Download
  • BAXTER 475HFA

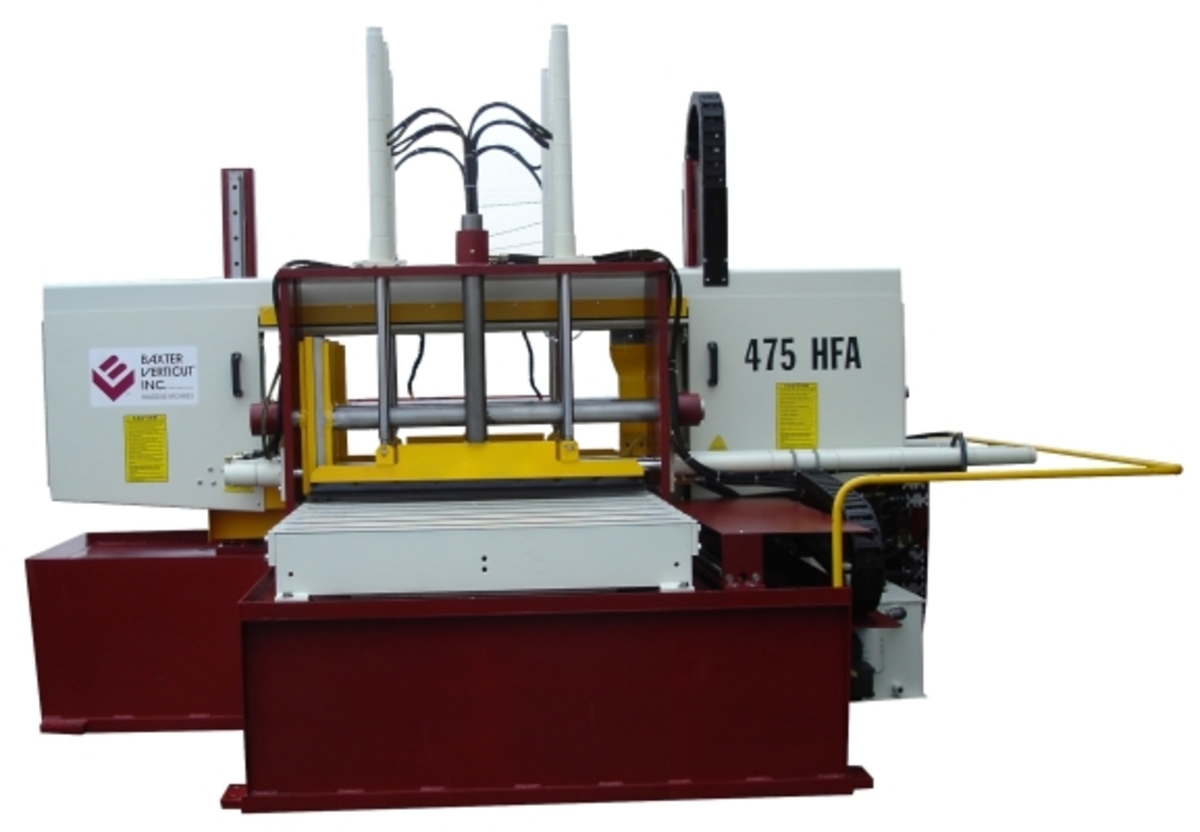

Product Image



FULLY AUTOMATIC HORIZONTAL BANDSAW

The model 475HFA is a fully automatic bandsaw. This machine can cut solids and grating. It has an extra large capacity of 18” (460mm) x 36” (915mm).

Machine can cut solids using a large 1½” (41mm) blade driven by a 7½ hp (5 kW) motor.


Request Quote on This Model

Specifications

CUTTING CAPACITY
Round 18″ (460 mm)
Rectangular 18″ x 36″ (460 x 915 mm)
SPECIFICATIONS
Blade Size 1 1/2″ x 18′ 8″ (38 x 5690 mm)
Blade Speeds (ft/min) 60, to 400 (18 to 122 m/min)
Blade Tension (spring compensated) 30,000 psi (207 MPa)
Blade Guides Carbide with rollers
Table Height 26 1/4″ (660 mm)
Maximum Work Load 7,000 lb. (3180 kg)
Machine Weight 5,200 lb. (1900 kg)
Overall Dimensions 119”x88”x80” (3020x2235x2030 mm)
DRIVE
Blade Drive 10 Hp (7.5 kW)
Hydraulic Dive 3 Hp (2.25 kW)
Voltages available (three phase) 575, and 460

FEATURES INCLUDED AS STANDARD EQUIPMENT

  • Double column machine provides maximum capacity and rigidity
  • Design utilizes linear bearings for high stiffness and smooth motion
  • Hydraulic lift of the saw head
  • Saw up travel can be set to minimize distance between the blade and the top of the material
  • Saw down travel can be set to allow notching of blocks
  • Electronic variable speed drive, panel adjustable
  • Parts counter up to 9999
  • Fully-automatic cut cycle, consists of material advance, saw cut at end of cut the saw head will raise to top, repeat until parts counter decrements to 0
  • Manual saw control, saw up, rapid saw down, saw cut, vises open/close, shuttle advance/retract
  • Cutting feed rate hydraulically adjusted
  • Load sensing valve which stops the feed if the blade starts to overload, typical when cutting the web of structural shapes.
  • Full stroke hydraulic vises, with stationary vise retract of 1/2” to avoid interference with material.
  • Top vises with replaceable heavy flexible strip to clamp uneven material
  • Variable vise pressure.
  • Discharge table 37” wide by 24” long
  • Steel wheel with ductile iron hubs
  • Blade guides are carbide faced with rollers to remove blade twist and dampen vibration
  • Flood coolant system to both saw guides and separate nozzle to allow coolant to center of cut with adjustable flow rates
  • High efficiency direct drive planetary gear drive system
  • Electric system uses only C.S.A./UL approved components and is electrically approved
  • Premium quality bimetal bandsaw
  • blade, Instruction and parts manual

Material Feed

  • Material is feed via a shuttle vise
  • Stroke of vise is 24″ (610 mm) with a length limit of 96″ (2440 mm)
  • Length of cut accuracy to +/-.015″ (.4 mm), repeatability +/-.005″ (.1 mm)

Options

Conveyor
