BAXTER 475HDP

Download
  • BAXTER 475HDP

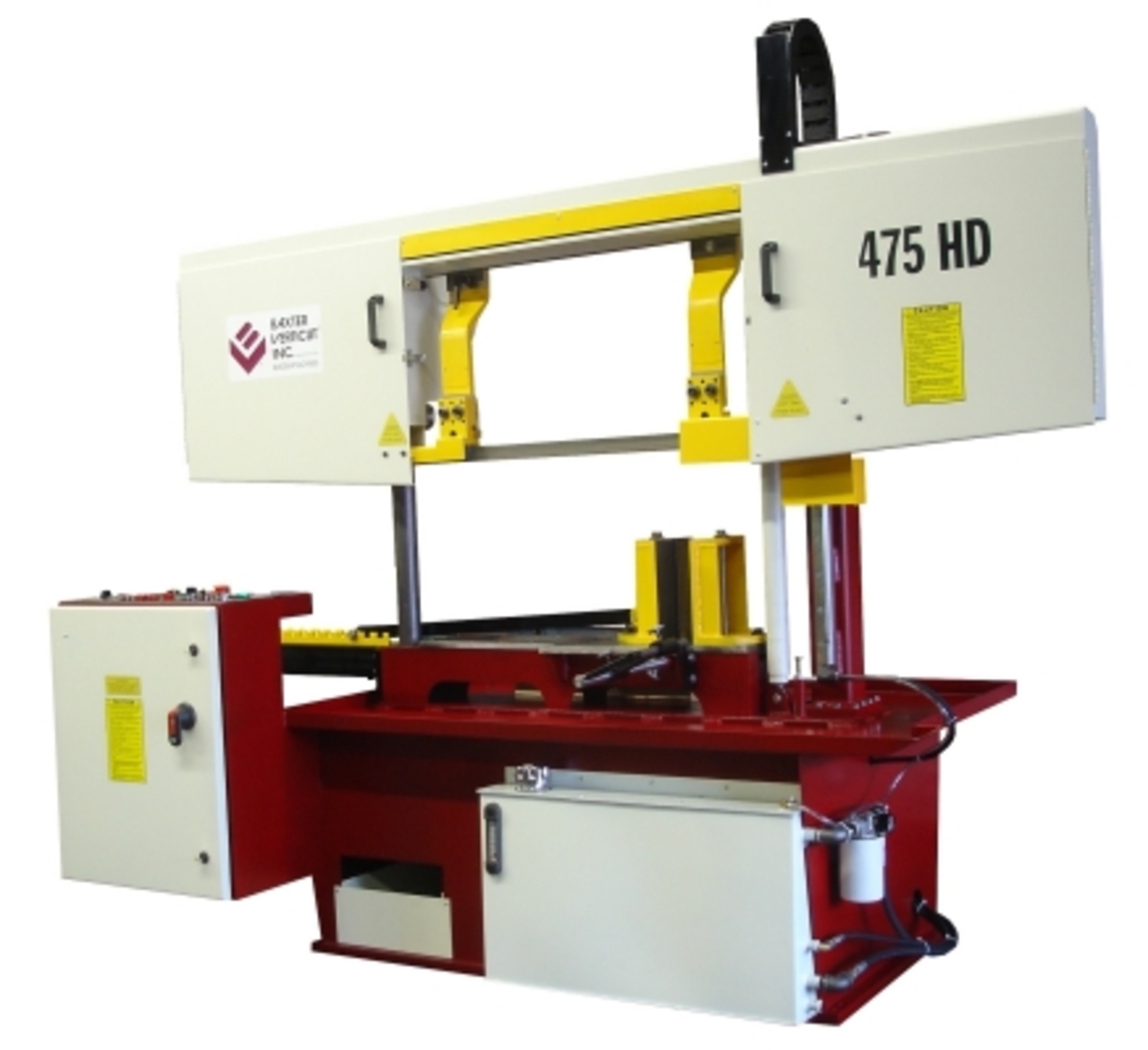

Product Image



HEAVY DUTY SEMI-AUTOMATIC HORIZONTAL BANDSAW

The model 475HDP is ideal for cutting solids. The machine has a large 1½” (41mm) blade driven by a 7½ hp (5 kW) motor. Full stroke hydraulic vise is standard.

Request Quote on This Model

Specifications

CUTTING CAPACITY
Round 18″ (475 mm)
Round at 45 degrees 13 3/8″ (340 mm)
Rectangular 18″ x 25″ (475 x 635 mm)
SPECIFICATIONS
Blade Size 1 1/2″ x 17′ 5″ (41 x 5309 mm)
Blade Speeds (continuously variable) 60 to 400 ft/min (18 to 122 m/min)
Blade Tension (spring compensated) 30,000 psi (207 MPa)
Blade Guides Carbide with rollers
Table Height 26 1/4″ (670 mm)
Maximum Work Load 4,500 lb. (2050 kg)
Machine Weight 2,800 lb. (1090 kg)
Overall Dimensions 9’6”x5’x8′(2895x1500x2400 mm)
DRIVE
Blade Drive 7.5 Hp (5 kW)
Hydraulic Drive 1 Hp (.75 kW)
Voltages available (three phase) 575 or 460

FEATURES INCLUDED AS STANDARD EQUIPMENT

  • Double column machine provides maximum capacity and rigidity
  • Design utilizes linear bearings for high stiffness and smooth motion
  • Electronic variable speed
  • Blade breakage and open door automatic shut off with alarm indicator
  • Hydraulic lift of the saw head
  • Saw up travel can be set to minimize distance between the blade and the top of the material
  • Saw down travel can be set to allow notching of blocks
  • Semi-automatic cut cycle
  • Manual saw control, saw up, rapid saw down, saw cut
  • Cutting feed rate hydraulically adjusted
  • Load sensing valve stops the feed if the blade starts to overload, typical cutting structural shapes
  • Magnetic motor starter with automatic shut off at the end of cut, motors with thermal overload protection
  • Power disconnect on machine
  • Blade guards
  • Powered blade brush to remove cutting chips
  • Quick acting material clamping
  • Miter cuts up to 45 degrees by swiveling vise
  • Adjustable material length stop for repetitive cutting
  • Steel wheels
  • Blade guides are carbide faced with rollers to remove blade twist and dampen vibration
  • Flood coolant system to both saw guides with adjustable flow rates
  • Direct blade drive using a planetary gear box for a high efficiency design
  • Electric system uses only C.S.A./UL approved components and is electrically approved
  • Premium quality bimetal bandsaw blade
  • Instruction and parts manual

Options

Conveyor
