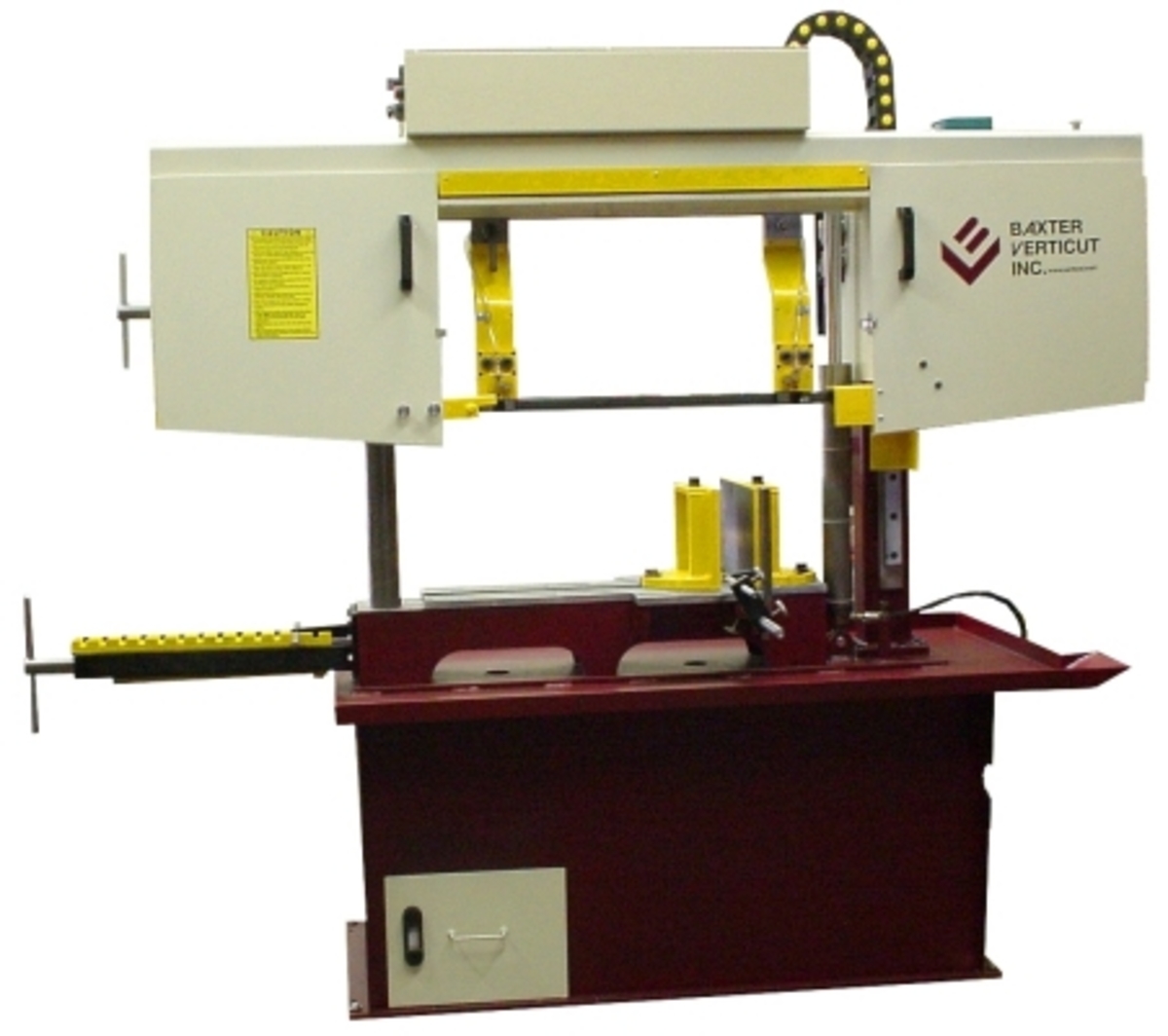

BAXTER 360SA
SEMI-AUTOMATIC HORIZONTAL BANDSAW
The model 360SA is a rigid double column bandsaw machine with a large 14” (360mm) x 19” (480mm) capacity.
The machine has hydraulic head lift and a semi-automatic cut cycle. Machine uses economical 1” blade and has a 2 hp (1.5 kW) drive. Blade speed is set using a five-step pulley.
Request Quote on This Model
Specifications
| CUTTING CAPACITY | |
| Round | 14″ (360mm) |
| Round at 45 degrees | 10 3/4″ (273 mm) |
| Rectangular | 14″ x 19″ (360 x 480 mm) |
| SPECIFICATIONS | |
| Blade Size | 1″ x 13′ 6″ (27 x 4115 mm) |
| Blade Speeds | 80, 125, 180, 265, 400 ft/min (25, 38, 55, 81, 122 m/min) |
| Blade Tension (spring compensated) | 30,000 psi (207 MPa) |
| Blade Guides | Carbide with rollers |
| Table Height | 26 1/4″ (660 mm) |
| Maximum Work Load | 3,000 lb. (1350 kg) |
| Machine Weight | 1,400 lb. (636 kg) |
| Overall Dimensions | 7’ x 4′ x 6′ (2130x1220x1830 mm) |
| DRIVE | |
| Blade Drive | 2 Hp (1.5 kW) |
| Hydraulic Drive | 1 Hp (.75 kW) |
| Voltages available (three phase) | 575, 460, 230 and 208 |
FEATURES INCLUDED AS STANDARD EQUIPMENT
- Double column machine provides maximum capacity and rigidity
- Design utilizes linear bearings for high stiffness and smooth motion
- Hydraulic lift of the saw head
- Saw up travel can be set to minimize distance between the blade and the top of the material
- Saw down travel can be set to allow notching of blocks
- Semi-automatic cut cycle and manual saw control, saw up, rapid saw down, saw cut
- Cutting feed rate hydraulically adjusted
- Load sensing valve stops the feed if the blade starts to overload, typical cutting structural shapes
- Magnetic motor starter with automatic shut off at the end of cut, motors thermal overload protection
- Power disconnect on machine
- Blade guards and fully enclosed drive belt guard
- Powered blade brush to remove cutting chips
- Quick acting material clamping
- Miter cuts up to 45 degrees by swiveling vise
- Adjustable material length stop for repetitive cutting
- Cast ductile iron wheel
- Blade guides are carbide faced with rollers to remove blade twist and dampen vibration
- Flood coolant system to both saw guides with adjustable flow rates
- Gear box designed for heavy duty bandsaw machines, precision worm shaft on taper roller bearings and phosphorous bronze worm gear set supported on sealed ball bearings, oil bath lubrication
- All bearings are totally enclosed and lubricated for life
- Electric system uses only C.S.A./UL approved components and is electrically approved
- Premium quality bimetal bandsaw blade
- Instruction and parts manual
Options
Variable Speed Drive
Single Phase 220/1/60
Hydraulic Vise
Conveyor
