BAXTER 360HFA

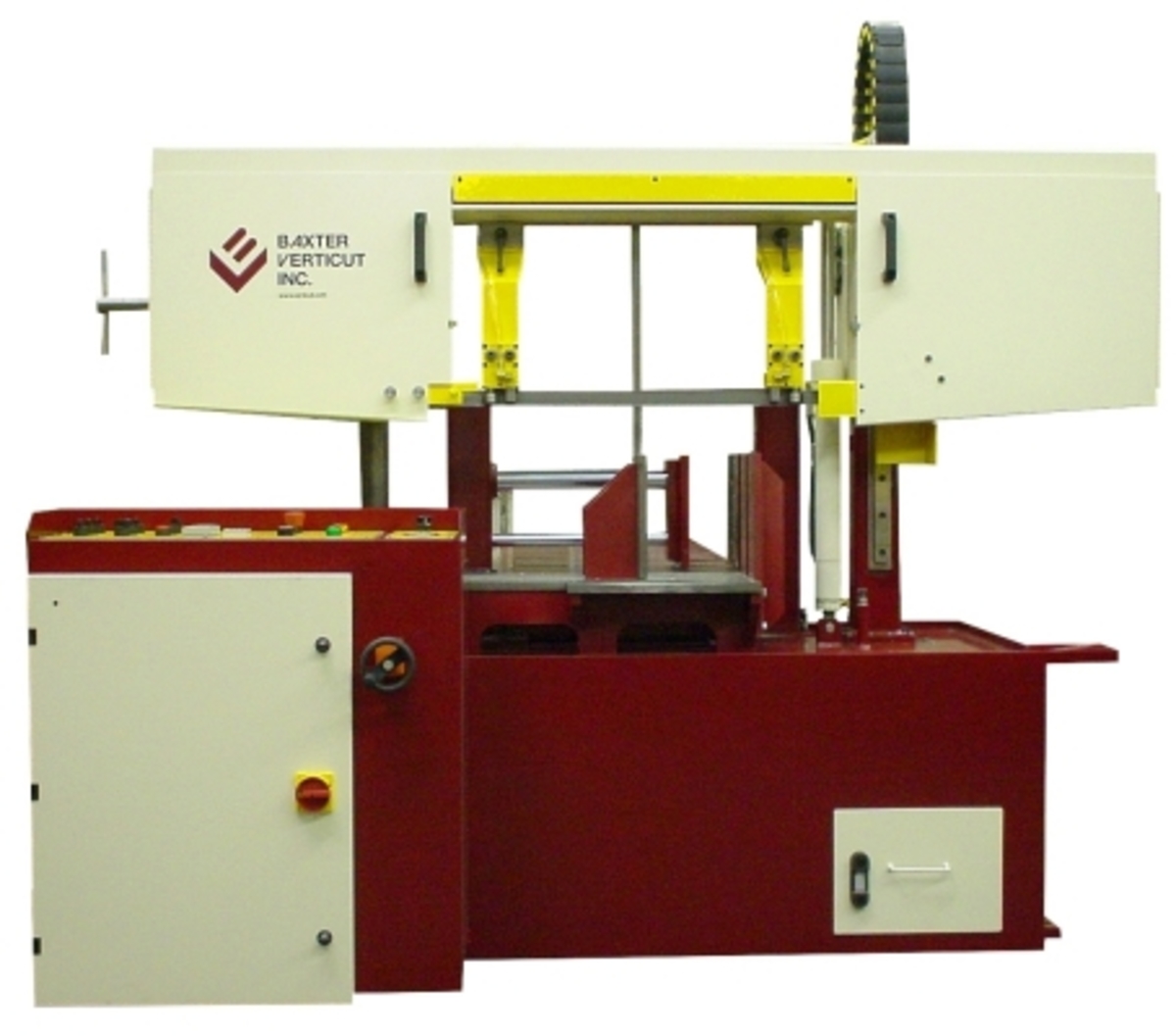

Product Image



The model 360HFA is a fully automatic bandsaw. Material is fed via a hydraulically driven shuttle mounted on linear bearings.

The machine is equipped with a 1¼” (34mm) blade and driven by a 5 hp (3.75 kW) motor. Material shuttle stroke is 19” (480mm) with a four times multiplier.

Request Quote on This Model

Specifications

CUTTING CAPACITY
Round 13″ (360 mm)
Rectangular 13″ x 18″ (360 x 460 mm)
SPECIFICATIONS
Blade Size 1 1/4″ x 14′ 6″ (34 x 4420 mm)
Blade Speeds (continuously variable) 60 to 400 ft/min (18 to 122 m/min)
Blade Tension (spring compensated) 30,000 psi (207 MPa)
Blade Guides Carbide with rollers
Table Height 26 1/4″ (660 mm)
Maximum Work Load 5,600 lb. (2545 kg)
Machine Weight 2,600 lb. (1180 kg)
Overall Dimensions 88”x80”x70”(2235x2030x1780 mm)
DRIVE
Blade Drive 5 Hp (3.75 kW)
Hydraulic Drive 2 Hp (1.5 kW)
Voltages available (three phase) 575, 460, 230 and 208

FEATURES INCLUDED AS STANDARD EQUIPMENT

  • Double column machine provides maximum capacity and rigidity
  • Design utilizes linear bearings for high stiffness and smooth motion
  • Hydraulic lift of the saw head
  • Saw up travel can be set to minimize distance between the blade and the top of the material
  • Saw down travel can be set to allow notching of blocks
  • Electronic variable speed drive, panel adjustable
  • Parts counter up to 9999
  • Fully-automatic cut cycle, consists of material advance, saw cut at end of cut the saw head will raise to top, repeat until parts counter decrements to 0
  • Manual saw control, saw up, rapid saw down, saw cut
  • Cutting feed rate hydraulically adjusted
  • Load sensing valve which stops the feed if the blade starts to overload, typical when cutting the web of structural shapes
  • Full stroke hydraulic vises, split vise design clamps on both sides of the blade
  • Cast ductile iron wheel
  • Blade guides are carbide faced with rollers to remove blade twist and dampen vibration
  • Flood coolant system to both saw guides with adjustable flow rates
  • High efficiency direct drive planetary gear drive system
  • Electric system uses only C.S.A./UL approved components and is electrically approved
  • Premium quality bimetal bandsaw blade
  • Instruction and parts manual

Options

Variable Vise Pressure
Bundle Clamping
Conveyor

Material Feed

  • Material is feed by a shuttle vise

  • Stroke of vise is 19″ (480 mm) with a length limit of 76″ (1930 mm)

  • Length of cut accuracy to +/-.015″ (.4 mm)

  • Length of cut repeatability +/-.005″ (.1 mm)
