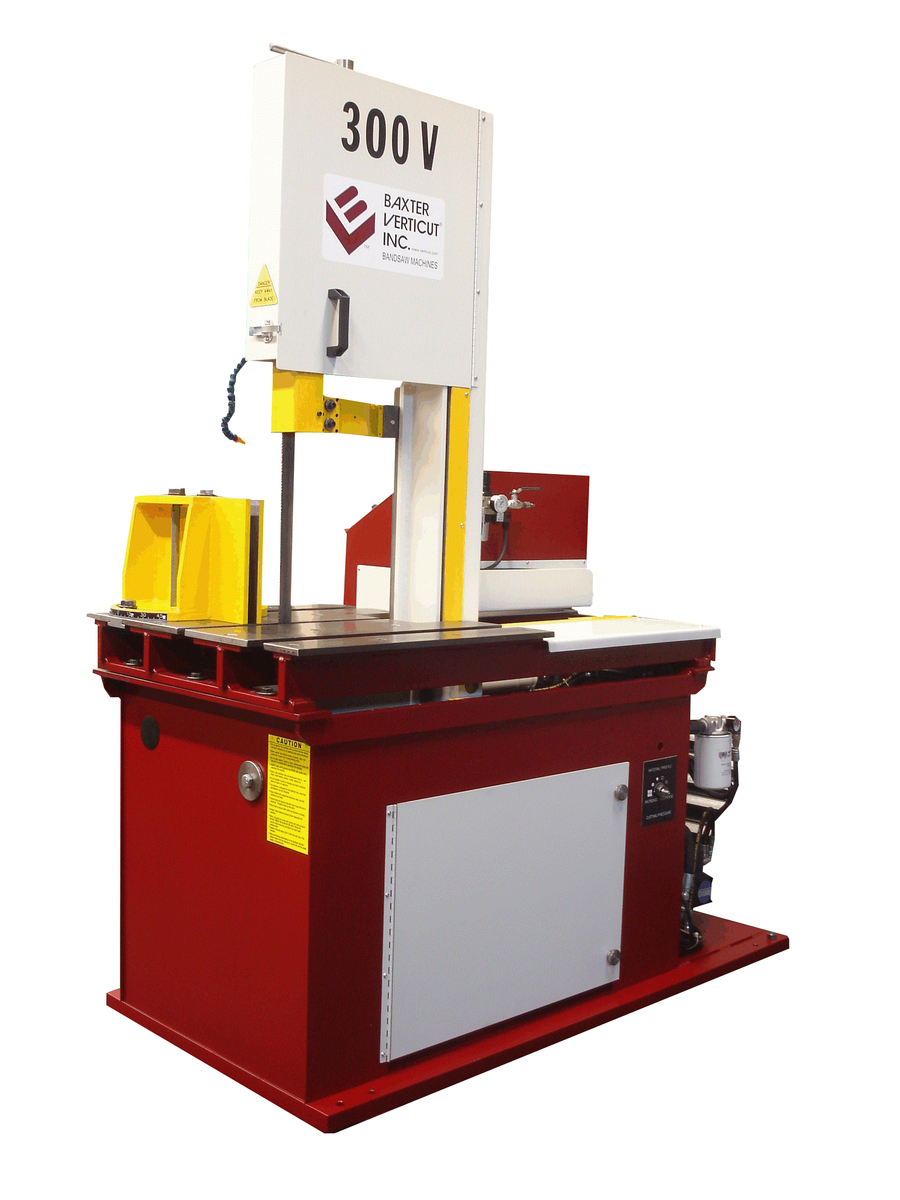

BAXTER 300V

Download
  • BAXTER 300V
Product Image Product Image


VERTICAL BANDSAW

Request Quote on This Model

Specifications

CUTTING CAPACITY
Round 12″ (300 mm)
Rectangular 12″ x 14″ (300 x 360 mm)
SPECIFICATIONS
Blade Size 1 1/4″ x 14’6″ (32 mm x 4420 mm)
Blade Speeds (ft/min) 60 to 400 (18 to 122 m/min)
Blade Tension 25,000 psi (172 MPa)
Table Height 36″ (890 mm)
Maximum Work Load 3,000 lb (1360 kg)
Machine Weight 1,900 lb (861 kg)
Overall Dimensions 99″ x 48″ x 80″ (2514 x 1219 x 2032 mm)
DRIVE
Blade Drive 5 Hp (3.75 kW)
Hydraulic Drive 2 Hp (1.5 kW)
Voltages Available (single phase) 230, 460, 575 Volts, 3 phase

FEATURES INCLUDED AS STANDARD EQUIPMENT

  • Blade is oriented vertically.
  • Machine movement is on linear bearing to provide maximum rigidity and smooth motion.
  • The saw head feed utilizes a load sensing valve which stops the feed if the blade starts to overload, typical when cutting the web of structural shapes
  • Blade Guides are carbide faced with roller to remove blade twist and dampen vibration.
  • Magnetic motor starter with automatic shut off at the end of cut, motors thermal overload protection.
  • Blade is preloaded to optimize cutting.
  • Blade tension is adjusted manually.
  • Blade drive system consists of a direct drive, high efficiency planetary geardrive. Blade speed controlled with a variable frequency drive.
  • Manual saw forward, saw retract, saw cut, vise open/closed.

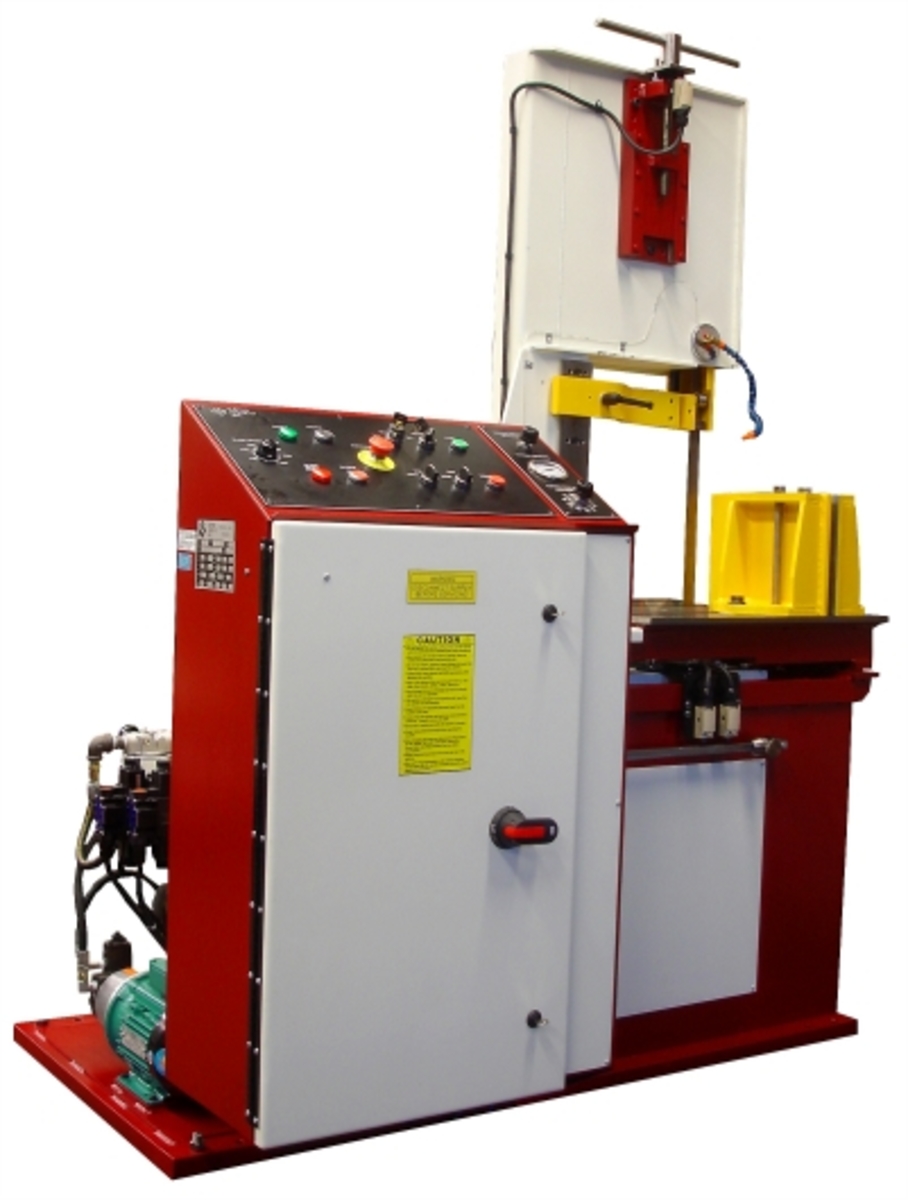

  • Controls are to the rear of the machine.
  • Blade breakage switch.
  • Ductile iron wheels.
  • Mist coolant system.
  • Electrical system uses only C.S.A./UL approved components and is electrically approved.
  • Premium quality bimetal bandsaw blade.
  • Instruction and parts manual.

Options

Second Hydraulic Vise
Variable Vise Pressure
Conveyor 10′
