BAXTER 280-S

Download
  • BAXTER 280S

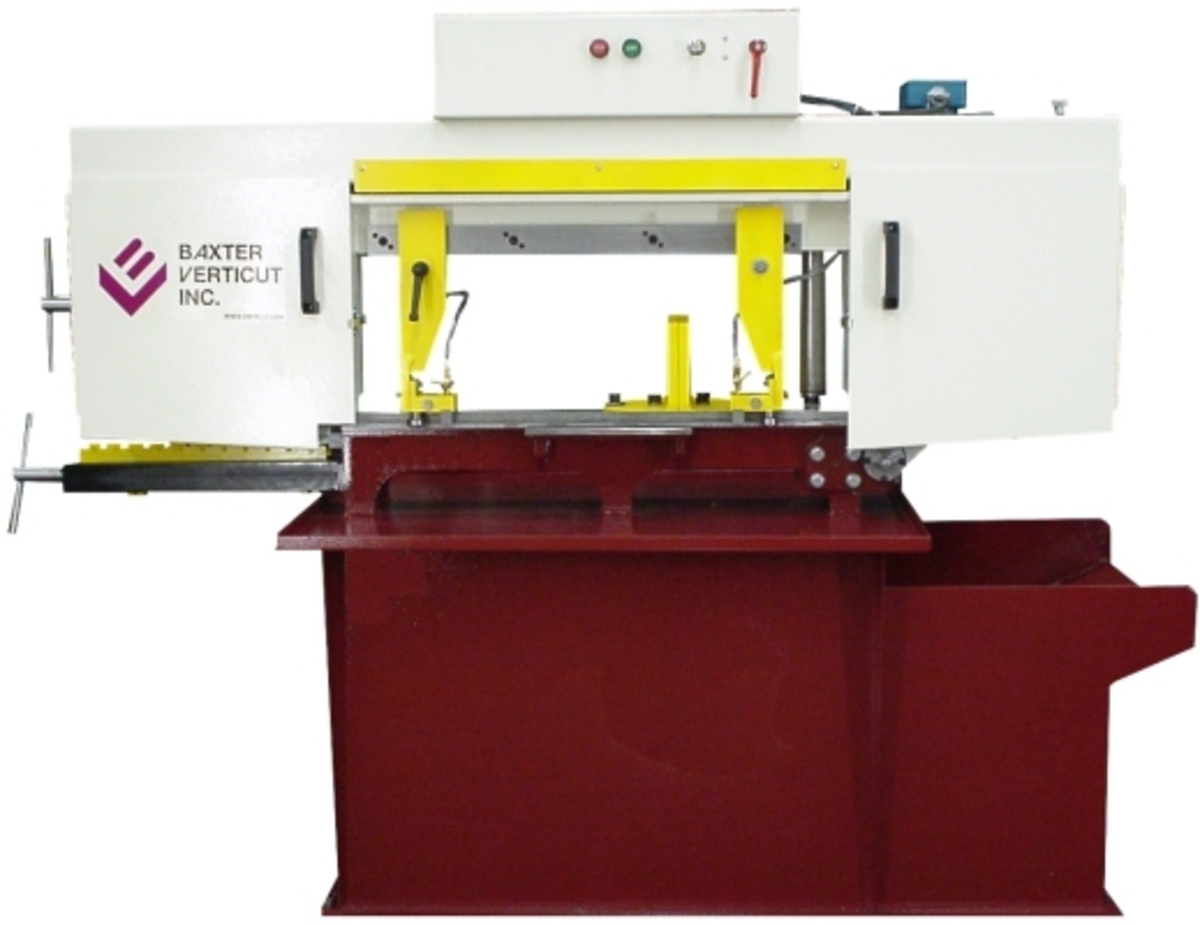

Product Image


HORIZONTAL BANDSAW

The model 280S is a general-purpose utility bandsaw.

Request Quote on This Model

Specifications

CUTTING CAPACITY
Round 11″ (280mm)
Round at 45 degrees 9″ (230 mm)
Rectangular 9” x 16” (230 x 406 mm) 11” x 14″ (280 x 355 mm)
SPECIFICATIONS
Blade Size 1” x 12’ (27 x 3660 mm)
Blade Speeds 70, 110, 170, 250, 370 ft/min (21, 34, 52, 76, 112 m/min)
Blade Tension (spring compensated) 28,000 psi (193 MPa)
Blade Guides Carbide with rollers
Table Height 30 3/4” (780 mm)
Maximum Work Load 3,000 lb. (1360 kg)
Machine Weight 1,200 lb. (545 kg)
Overall Dimensions 78”x30”x57” (1980x760x1450 mm)
DRIVE
Blade Drive 2 Hp (1.5 kW)
Motor Starter Magnetic Starter
Voltages available (three phase) 575, 460, 230 and 208

FEATURES INCLUDED AS STANDARD EQUIPMENT

  • Scissor-type saw with heavy duty, all-welded design for rigidity and strength

    Miter cuts up to 45 degrees by swiveling vise

    Large base for stability with large coolant catch area

    Pivot uses tapered roller bearings for a highly rigid machine with smooth low friction movement

    Conveniently located control station

    Cutting feed hydraulically regulated with quick shut off to avoid valve adjustments

    Magnetic motor starter with automatic shut off at the end of cut, motor thermal overload protection

    Power disconnect on machine

    Blade guards and fully enclosed drive belt guard

    Powered blade brush to remove cutting chips

    Quick adjusting material clamp

    Material discharge table

    Adjustable material length stop for repetitive cutting

    Ductile iron wheels

    Blade guides are carbide faced with rollers to remove blade twist and dampen vibration

    Flood coolant system to both saw guides with adjustable flow rates

    Gear box designed for heavy duty bandsaw machines, precision worm shaft on taper roller bearings and phosphorous bronze worm gear set supported on sealed ball bearings, oil bath lubrication

    All bearings are totally enclosed and lubricated for life

    Electric system uses only C.S.A./UL approved components and is electrically approved

    Premium quality bimetal bandsaw blade

    Instruction and parts manual

Options

Variable Speed Drive

Single Phase Electrics 220/1/60

Hydraulic Saw Lift

Conveyor
