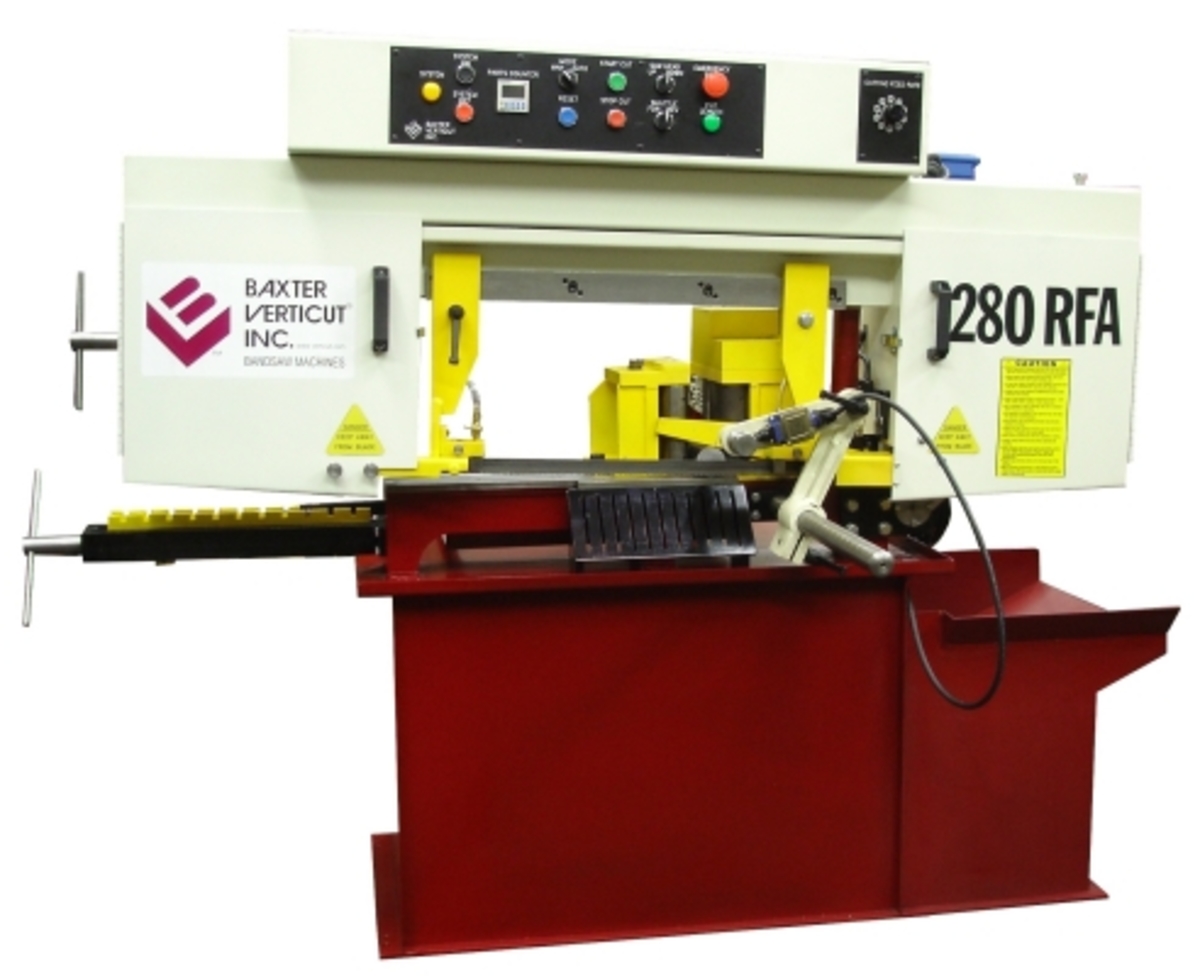

BAXTER 280RFA
AUTOMATIC HORIZONTAL BANDSAW
Fully automatic roller feed type bandsaw machine.
The machine is an economical solution to repetitive sawing.
Machine comes standard with a conveyor, parts counter and out of material sensor.
Specifications
| CUTTING CAPACITY | |
| Round | 11″ (280mm) |
| Rectangular | 9” x 16” (230 x 406 mm) 11” x 14″ (280 x 355 mm) |
| SPECIFICATIONS | |
| Blade Size | 1” x 12’ (27 x 3660 mm) |
| Blade Speeds | 70,110,170,250,370 ft/min (21,34,52,76,112 m/min) |
| Blade Tension (spring compensated) | 28,000 psi (193 MPa) |
| Blade Guides | Carbide with rollers |
| Table Height | 30 3/4” (780 mm) |
| Maximum Work Load | 3,000 lb. (1360 kg) |
| Machine Weight | 1,400 lb. (636 kg) |
| Overall Dimensions | 78”x30”x57” (1980x760x1450 mm) |
| DRIVE | |
| Blade Drive | 2 Hp |
| Hydraulic Drive | 1 Hp |
| Roller Drive | 1/4 Hp |
| Voltages available (three phase) | 575, 460, 230 and 208 |
FEATURES INCLUDED AS STANDARD EQUIPMENT
Scissor-type saw with heavy duty all welded design for rigidity and strength
Large base for stability with large coolant catch area
Infeed material conveyor 6 rollers 52 1/2” long
Pivot uses tapered roller bearings for a highly rigid machine with smooth low friction movement
Conveniently located control station
Cutting feed hydraulically regulated
Saw up travel automatically set to minimize distance between the blade and the material
Manual saw control, saw up, saw down, saw cut
Automatic cut cycle with decrementing counter
Magnetic motor starters with thermal overload protection
Power disconnect on machine
Blade guards and fully enclosed drive belt guard
Powered blade brush to remove cutting chips
Quick adjusting material clamp
Material discharge table
Adjustable material length stop for repetitive cutting
Blade guides are carbide faced with rollers to remove blade twist and dampen vibration
Flood coolant system to both saw guides with adjustable flow rates
Gear box designed for heavy duty bandsaw machines, precision worm shaft on taper roller bearings and phosphorous bronze worm gear set supported on sealed ball bearings,
oil bath lubrication
All bearings are totally enclosed and lubricated for life
Electric system uses only C.S.A./UL approved components and is electrically approved
Premium quality bimetal bandsaw blade
Instruction and parts manual
