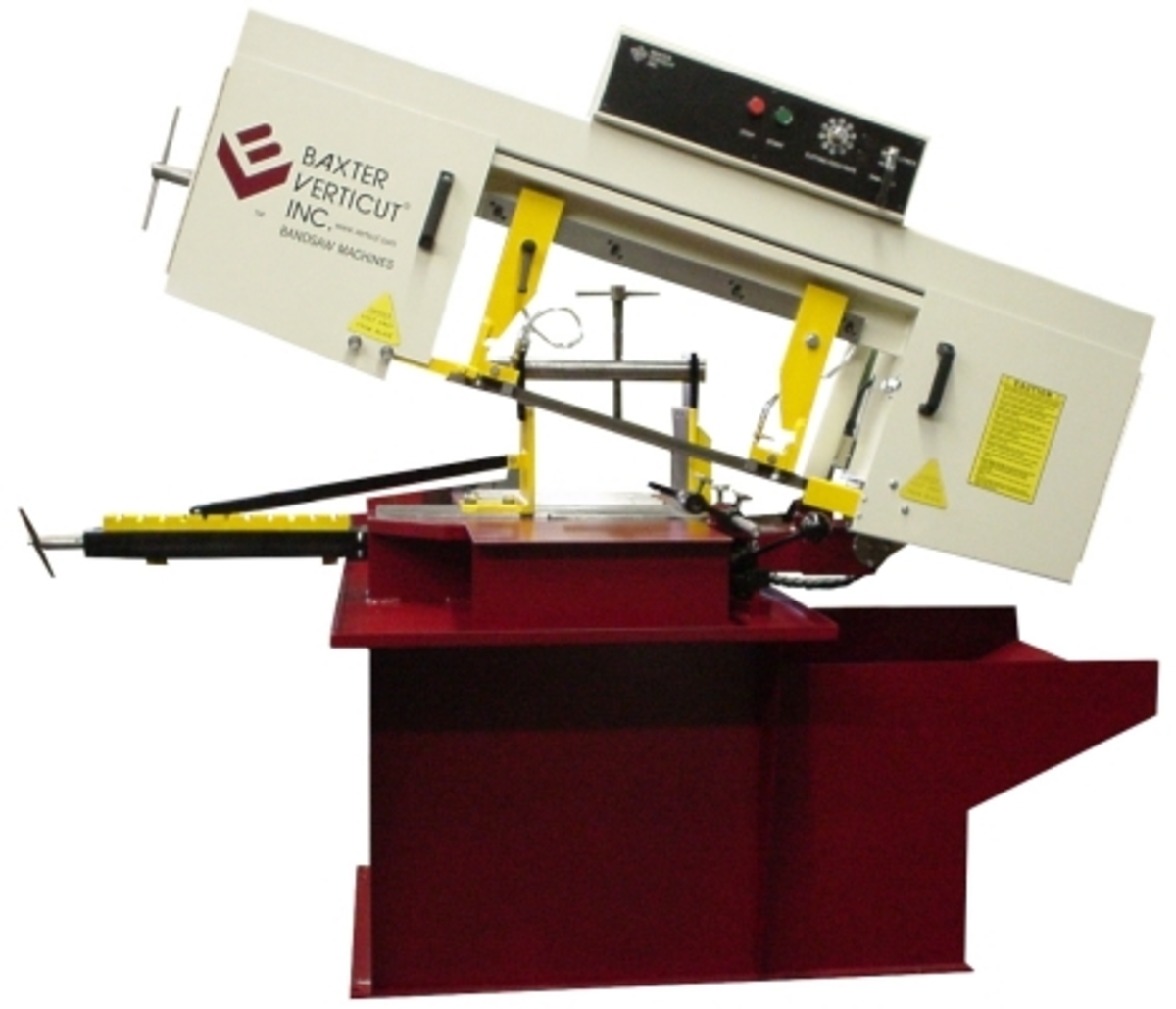

BAXTER 280M
HORIZONTAL MITERING BANDSAW
The model 280M is able to miter cut up to 45 degrees by swinging the saw head.
The machine is a general-purpose bandsaw designed for fabricators to cut angles by mitering the saw head.
Specifications
| CUTTING CAPACITY | |
| Round at 90 degrees | 11″ (280 mm) |
| Round at 45 degrees | 10″ (254 mm) |
| Rectangular | 9″ x 16″ (230 x 406 mm) 11” X 14” (280 x 356 mm) |
| SPECIFICATIONS | |
| Blade Size | 1″ x 12′ (27 x 3660 mm) |
| Blade Speeds | 70, 110, 170, 250, 370 ft/min (21, 34, 52, 76, 112 m/min) |
| Blade Tension (spring compensated) | 28,000 psi (193 MPa) |
| Blade Guides | Carbide with rollers |
| Table Height | 30 3/4″ (780 mm) |
| Maximum Work Load | 3,000 lb.(1360 kg) |
| Machine Weight | 1,350 lb.(614 kg) |
| Overall Dimensions | 78”x46”x57” (1980 x 1170 x 1450 mm) |
| DRIVE | |
| Blade Drive | 2 Hp (1.5 kW) |
| Power Requirements | 575/3/60 |
FEATURES INCLUDED AS STANDARD EQUIPMENT
Scissor type saw with heavy duty all welded design for rigidity and strength
Saw frame swings 45 degrees allowing miter cutting without swinging the material
Cam lock of saw frame with frame angle indicating scale, hard stops at 0 and 45 degrees
Large base for stability with large coolant catch area
Pivot uses taper roller bearings for a highly rigid machine with smooth low friction movement
Conveniently located control station
Cutting feed hydraulically regulated with quick shut off to avoid valve adjustments
Magnetic motor starter with automatic shut off at the end of cut, motor thermal overload protection
Power disconnect on machine
Blade guards and fully enclosed drive belt guard
Powered blade brush to remove cutting chips
Quick adjusting material clamp
Material discharge table, built in conveyor with 5 rollers for material feed
Adjustable material length stop for repetitive cutting
Ductile iron wheels
Blade guides are carbide faced with rollers to remove blade twist and dampen vibration
Flood coolant system to both saw guides with adjustable flow rates
Gear box designed for heavy duty bandsaw machines, precision worm shaft on taper roller bearings and phosphorous bronze worm gear set supported on sealed ball bearings, oil bath lubrication
All bearings are totally enclosed and lubricated for life
Electric system uses only C.S.A./UL approved components and is electrically approved
Premium quality bimetal bandsaw blade
Instruction and parts manual
Options
Variable Speed Drive
Single Phase Power 220/1/60
Hydraulic Saw Lift
Conveyor
