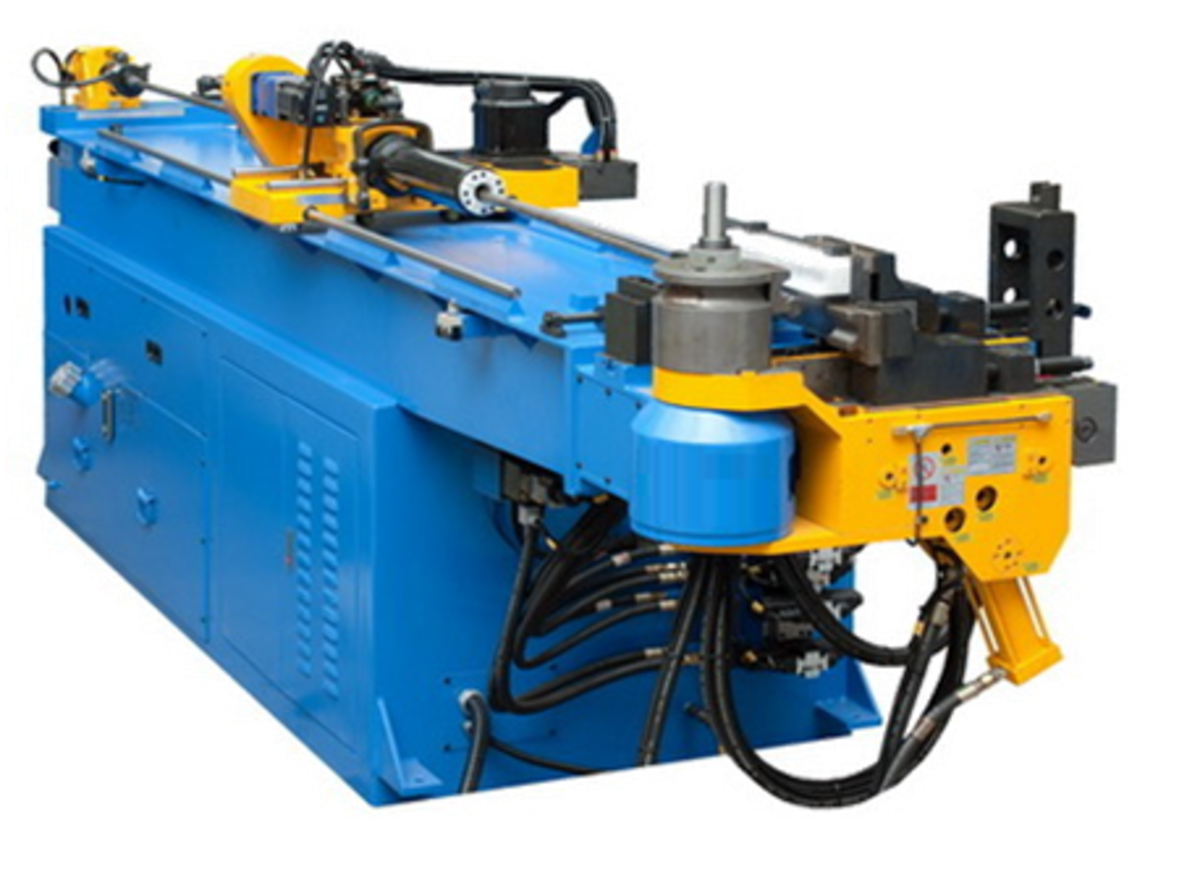

50-TSR
Request Quote on This Model
Technical Specifications
| Bending Capacity / Round Tube / Mild Steel (S=40kgf/mm²) | mm | 50.8 x 2.0 |
| Bending Capacity / Round Tube / Non-Ferrous (S=25kgf/mm²) | mm | 50.8 x 3.5 |
| Bending Capacity / Round Tube / Stainless (S=60kgf/mm²) | mm | 50.8 x 1.4 |
| Bending Capacity / Square Tube / Mild Steel (S=40kgf/mm²) | mm | 40 x 2.0 |
| Bending Capacity / Solid Bar / Mild Steel (S=40kgf/mm²) | mm | 25 |
| Max. Bending Radius | mm | 30 ~ 220 |
| Max. Bending Angle | Degree | 190 |
| Max. Difference Between two Radii (R2-R1) | mm | NA |
| Max. Length over Mandrel | mm | 3200 |
| Working Height | mm | 1100 |
| Tooling Center Line Height | mm | 40 |
| DOB (Bending) Speed | deg / sec | 105 |
| Accuracy of DOB (Bending) | Degree | ±0.1 |
| DBB (Feeding) Speed | mm / sec | 160 ~ 980 |
| Accuracy of DBB (Feeding) | mm | ±0.1 |
| POB Rotation) Speed | deg / mm | 270 |
| Accuracy of POB (Rotation) | Degree | ±0.1 |
| Motor for Hydraulic | Kw | 3.8 |
| Total Power | Kw | 20 |
| Max. Pressure | kgf / cm² | 140 |
| Hydraulic Tank Capacity | Liter | 130 |
| Machine Weight | Kg | 3800 |
| Machine Dimensions LxWxH | mm | 5300 x 950 x 1500 |
Optional equipment
Anticipated mandrel
retraction unit(AMRU)
