MUM 2500-50

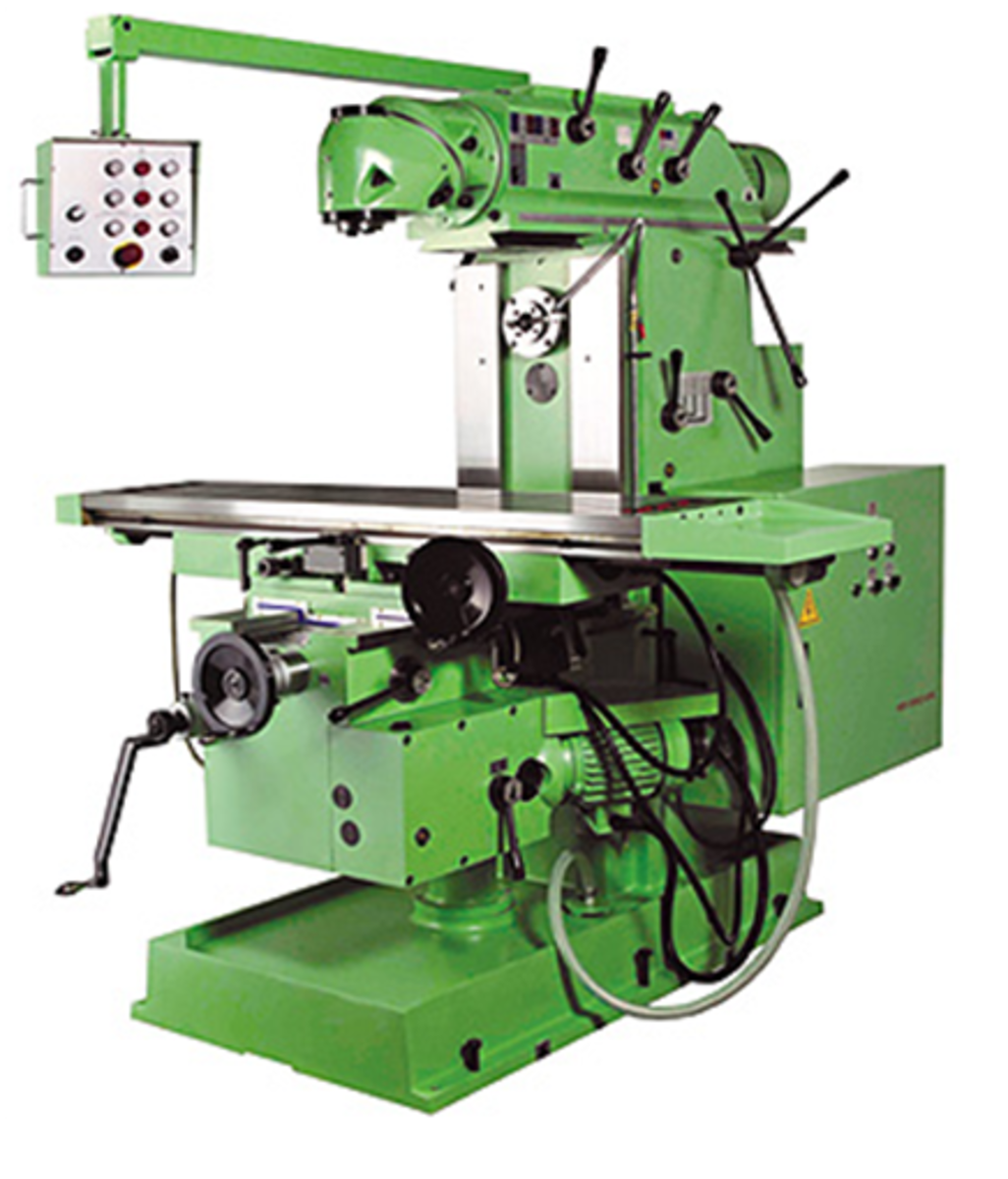

Product Image

MAXCUT UNIVERSAL MILLING MACHINE
STANDARD FEATURES
Rapid traverse on "X", "Y" & "Z" axis.
Table swivels ±45° degrees left & right
Motorized ARM/RAM elec. Motor is 3.75KW (5.5HP)
Horizontal spindle elec. Motor is 5.5KW (7.5HP)
Long Horizontal milling arbour
two over arm supports
manual drawbars
Coolant pump
Chip tray

Request Quote on This Model

Specifications

ITEM MAXCUT MUM-2500-40/50
TABLE Table area 1500x350mm (59x13.7")
"T" slots 5-16H7
Distance between "T" shaped slots 60mm
Rotary movement of table in both direction 45°
TRAVERSE Automatic Longitudinal 1150mm (46")
Automatic cross 400mm (15 3/4")
Automatic Vertical 500mm (20")
Available distance from spindle to overarm 155mm (6")
SPINDLE (horizontal) Housing of the taper spindle ISO-40/50
Diameter of the main Shaft nose 88.88-128.57mm
Milling arbor diameter (*) 27mm or (1")
Number of speeds of the spindle (R.P.M.) 12(40-1800) 50HZ
FEEDS Longitudinal and cross feeds 10-1208mm (0.4-47")
Vertical feed 5-604mm (0.2-23")
RAPID TRAVERSE Longitudinal and cross 1208mm (47")/min (60HZ)
Vertical 604mm (23")/min
MOTORS Main motor HP 7.5
Feed motor HP 2.5
COOLANT Cooling-pump HP 1/8 (0.10)
MOTORIZED OVERARM Housing of the taper spindle ISO-40/50
Number of speeds 12
Speed range (R.P.M) (35-1600) 50HZ
Power HP 5.5
WEIGHT AND DIMENSIONS Maximum weight on table 600kg (1320 lb)
Net weight 3200kg (7040 lb)
Gross weight with seapacking case 3400kg (7480 lb)
Cubical measure of packing 184x227x227cm (70x89x88")

OPTIONAL ACCESSORIES

10HP motor for Horizontal spindle, extra


Brake motor with Vertical & Hor. 5.5HP / 7.5HP


Brake motor with Ver. & Hor. 5.5HP & 10HP


Brake motor with Horizontal 7.5HP


AC auto feed for over arm


Air Power Draw Bar #50 with Horizontal


Air Power Draw Bar #50 with Vertical


Variable speed: Horizontal spindle


Variable speed: Vertical Spindle


AL-500S  Power Feed  X / Y Axis
