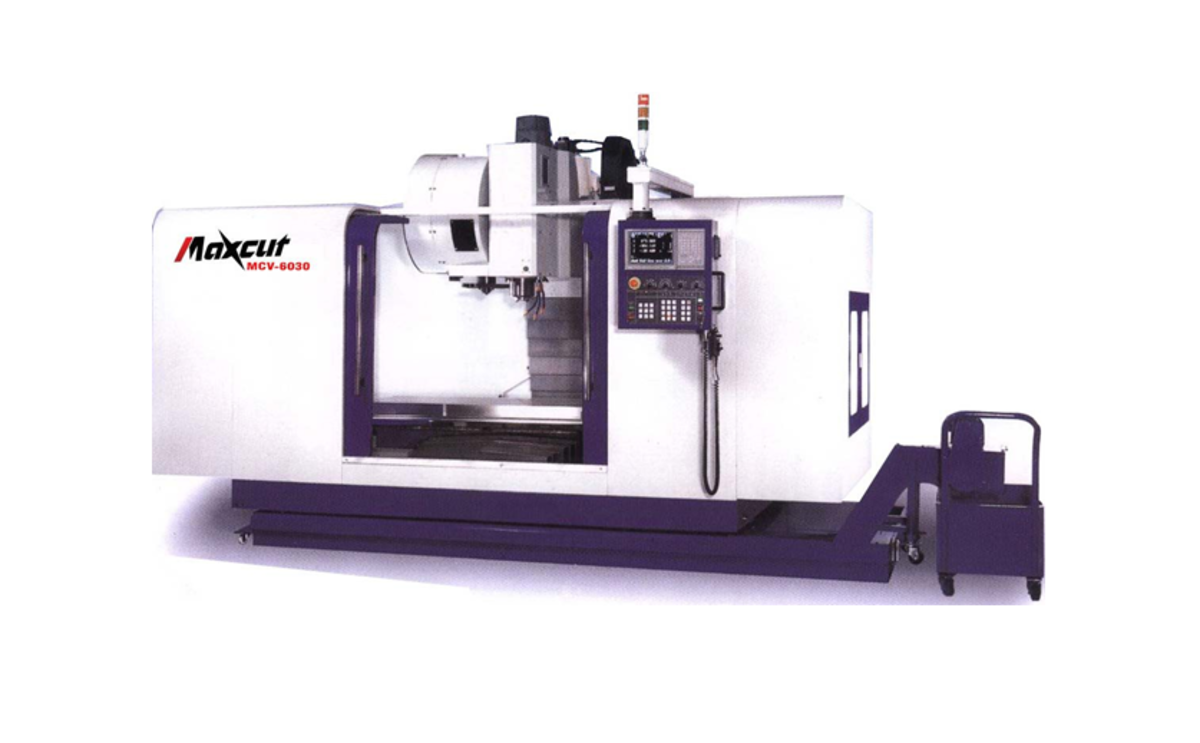

Maxcut MCV-6030

Product Image

Fagor 8055i MC LCD color display
X/Y/Z travel: 60" x 30" x 27"
Tale Size: 59" x 23.62"
Heavy-duty box way design
Optional Control features included in the offer:
1. Built-In engraving functions: X/Y Engraving and X/A Engraving if 4th Axis installed
2.Automatic TOOL LENGTH CALIBRATION finds the height of the tool automatically.
3.Conversational to G-code programming conversion feature allows operator to program machining job without G code
4.Inside/outside taper threading/Boring cycle
5.Quick programming helical taper interpolation or helical taper threading

Request Quote on This Model

Specifications

ITEM   MCV-6030
Travel X-axis 1524mm
Y-axis 762mm
Z-axis 670mm
Spindle nose to table 100-770mm
Spindle throat 767mm
FEED RATE X,Y,Z-axis  rapid traverse 20m/min
Cutting feed rate 5m/min
TABLE Table size 1700x600mm
Max, loading capacity   1000kg
Number of T·slots 5
Size of T·slots     18mm
SPINDLE Spindle motor 20HP
Spindle diameter 70mm
Spindle taper BT40# OR CAT40#
Spindle speed 8000rpm
FLUSHING Coolant pump 1/2HP
PNEUMATIC Air pressure 5kgcm2
WEIGHT Machine net weight 6600kg

STANDARD EQUIPMENT

Through spindle coolant

8000rpm spindle speed as standard

ISO40 spindle

Spindle : 20HP

Automatic tool changer -24 Tools, Swing arm  type

Rigid tapping

Portable MPG with remote  jogging switch

Chip conveyor

Heavily ribbed cast iron components

One piece Box type base with internal rib design

Full enclosure & heavy duty metal guarding with removable side doors

Large fully ground work table with 5 T slots

Precision ground ball screw

Heavy-duty box way design

Telescopic way covers

Automatic lubrication with low lubrication fault

Coolant system with checked valve

210L-55Gal. coolant tank

Low voltage circuit system

Heat exchanger

CSA certified

Wash down system

OPTIONAL EQUIPMENT

OPM 40 spindle probe and NC laser tool setting probe

Complete 4th  axis servo rotary table

Programmable coolant nozzle

2 speed gear box for spindle

4th axis configuration interface

OPTIONAL 4th AXIS
