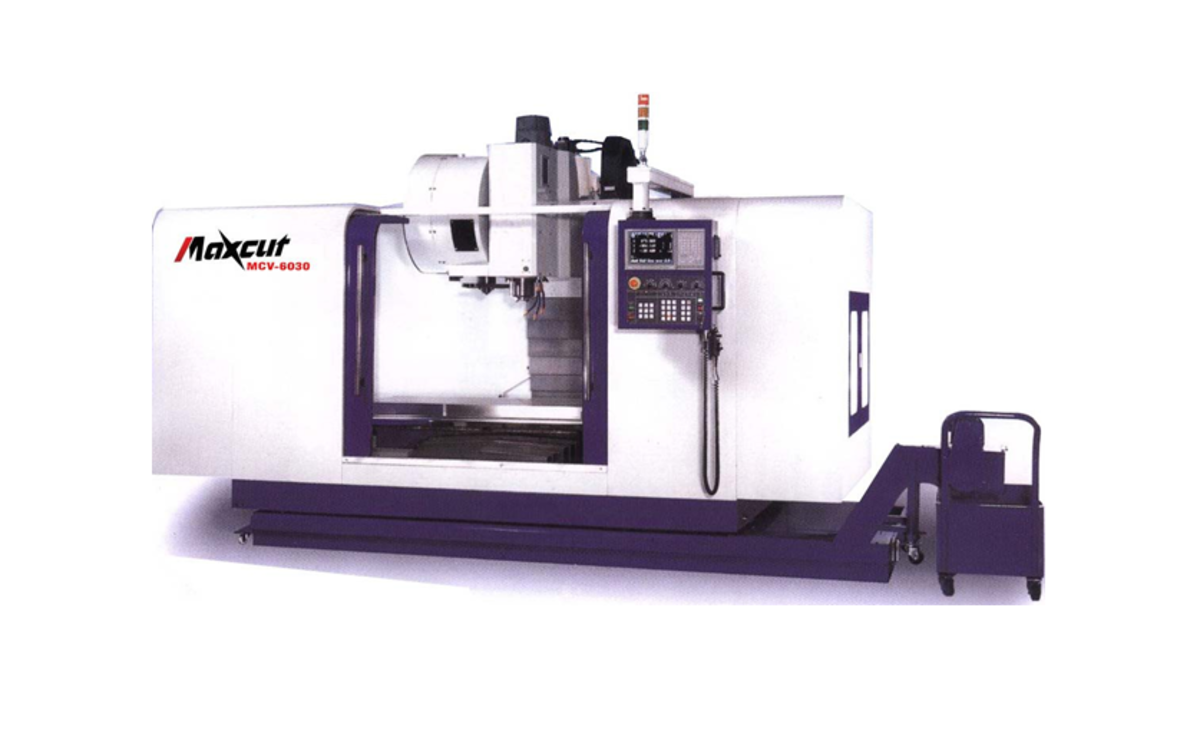

Maxcut MCV-5030
Specifications
| ITEM | MCV-5030 | |
| Travel | X-axis | 1300mm |
| Y-axis | 762mm | |
| Z-axis | 670mm | |
| Spindle nose to table | 100-770mm | |
| Spindle throat | 767mm | |
| FEED RATE | X,Y,Z-axis rapid traverse | 20m/min |
| Cutting feed rate | 5m/min | |
| TABLE | Table size | 1500x600mm |
| Max, loading capacity | 1000kg | |
| Number of T·slots | 5 | |
| Size of T·slots | 18mm | |
| SPINDLE | Spindle motor | 20HP |
| Spindle diameter | 70mm | |
| Spindle taper | BT40# OR CAT40# | |
| Spindle speed | 8000rpm | |
| FLUSHING | Coolant pump | 1/2HP |
| PNEUMATIC | Air pressure | 5kgcm2 |
| WEIGHT | Machine net weight | 6000kg |
STANDARD EQUIPMENT
Through spindle coolant
8000rpm spindle speed as standard
ISO40 spindle
Spindle : 20HP
Automatic tool changer -24 Tools, Swing arm type
Rigid tapping
Portable MPG with remote jogging switch
Chip conveyor
Heavily ribbed cast iron components
One piece Box type base with internal rib design
Full enclosure & heavy duty metal guarding with removable side doors
Large fully ground work table with 5 T slots
Precision ground ball screw
Heavy-duty box way design
Telescopic way covers
Automatic lubrication with low lubrication fault
Coolant system with checked valve
210L-55Gal. coolant tank
Low voltage circuit system
Heat exchanger
CSA certified
Wash down system
OPTIONAL EQUIPMENT
OPM 40 spindle probe and NC laser tool setting probe
Complete 4th axis servo rotary table
Programmable coolant nozzle
2 speed gear box for spindle
4th axis configuration interface
OPTIONAL 4th AXIS
