MAXCUT MCV-35100

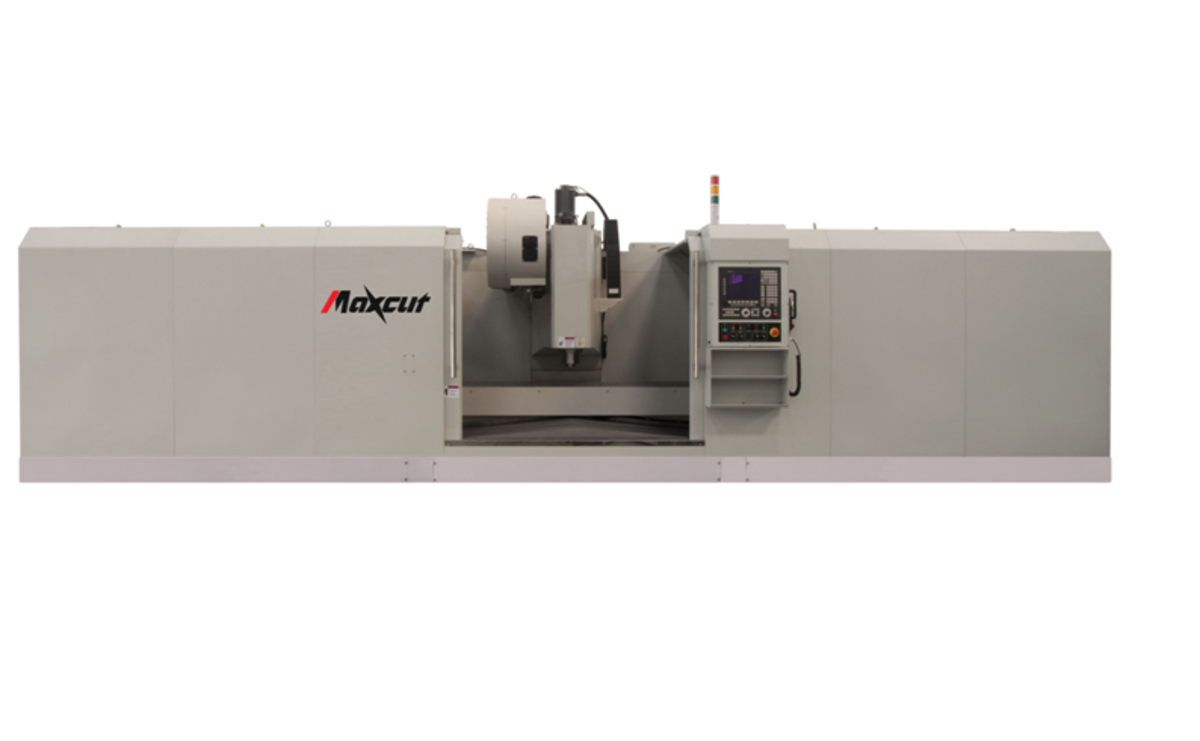

MAXCUT VERTICAL MACHINING CENTER
Fagor 8055i/A MC LCD color display
Optional Control features included in the offer:
1.Built-In engraving functions: X/Y Engraving and X/A Engraving if 4th Axis installed
2.Automatic TOOL LENGTH CALIBRATION (finds the height of the tool automatically)
3.Conversational to G-code conversion (allows operator to program jobs without G code)
4.Inside/outside taper threading/Boring cycle
5.Quick programming helical taper interpolation or helical taper threading
Request Quote on This Model
Specifications
| Description | Unit | MCV-35100 | ||||
| Table size | mm | 2845x762(table guard) | ||||
| Table height | mm | 840 | ||||
| Max. table load | kg | 1800 | ||||
| T-slot (width/pitch/no) | mm | 18x5x120 | ||||
| X axis | mm | 2500 (table guard) | ||||
| Y axis | mm | 840 | ||||
| Z axis | mm | 710 | ||||
| Spindle taper | ISO | 40 | ||||
| Transmission | Belt | |||||
| Spindle speed - std. | rpm | 8000 | ||||
| Motor output - std. | kw | 15 | ||||
| X axis guide way type | Box way | |||||
| X axis guide distance | mm | 90x40x510 | ||||
| Y axis guide way type | Box way | |||||
| Y axis guide distance | mm | 120x35x700 | ||||
| Z axis guide way type | Box way | |||||
| Z axis guide distance | mm | 100x35x500 | ||||
| X axis rapid feed | m/min | 10 | ||||
| Y axis rapid feed | m/min | 10 | ||||
| Z axis rapid feed | m/min | 10 | ||||
| X axis cutting feed | m/min | 5 | ||||
| Y axis cutting feed | m/min | 5 | ||||
| Z axis cutting feed | m/min | 5 | ||||
| ATC type | Arm | |||||
| No. of tools | 24 | |||||
| Tool shank type | BT/CAT #40;DIN69871 | |||||
| Tool Changing Time (T-T) | sec | 1.94 | ||||
| Max. tool diameter | mm | 100/75 | ||||
| Max. tool diameter with next tool empty | mm | 130 | ||||
| Max. tool length | mm | 350/300 | ||||
| Max. tool weight | kg | 8 | ||||
| Max. loading weight | kg | 120 (arm 24T) | ||||
| Length (w/o chip conveyor) | mm | 6350 | ||||
| Width | mm | 4400 | ||||
| Height | mm | 3000 | ||||
| Weight | kgs | 8500 | ||||
| Floor space | mm | 6350x4400 | ||||
Standard Equipment
|
8000rpm
spindle speed as standard |
Through
spindle coolant |
|
ISO40
spindle |
wash-down
system |
|
Rigid
tapping |
Auger
& chip conveyor |
|
Portable
MPG with remote jogging switch |
Coolant
system with checked valve |
|
Fully
enclosed with removable side doors |
210L-55Gal.
coolant tank |
|
Automatic
lubrication with low lube fault |
Heat
exchanger |
OPTIONAL 4th AXIS
