MAXCUT MCV-1100

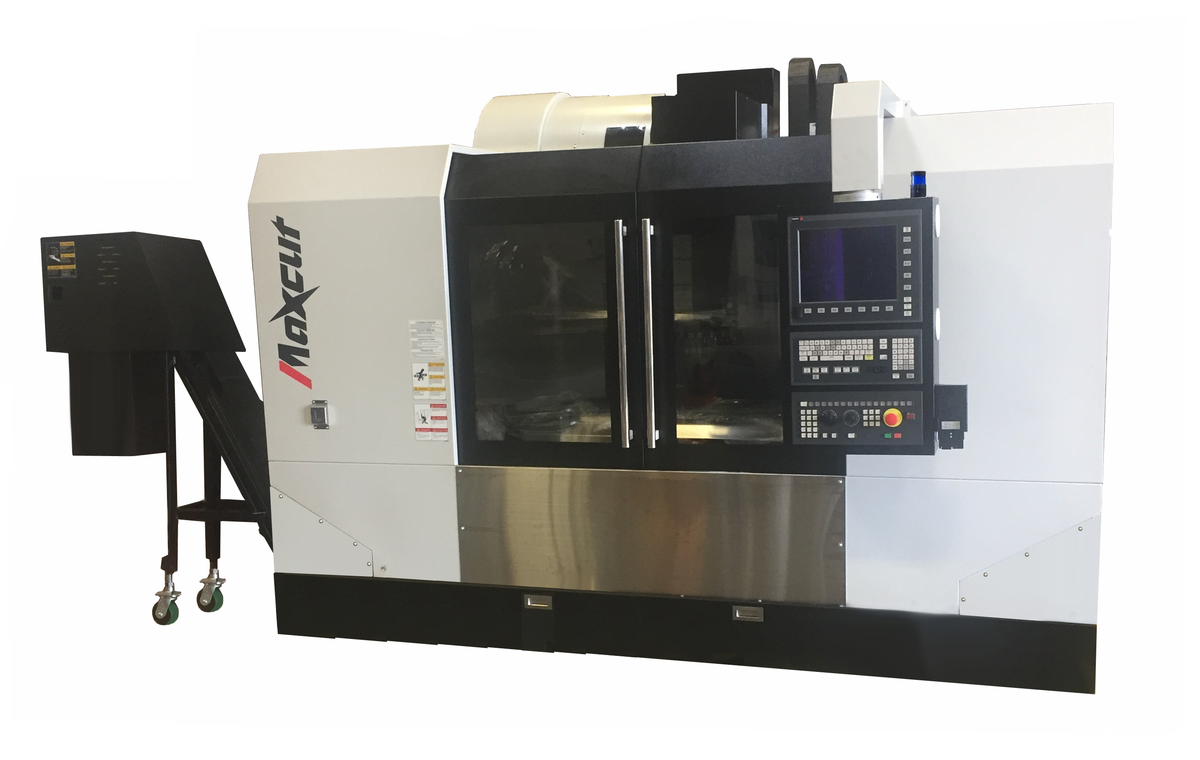

Product Image

FEATURES

Fagor 8065 Control

Built-In engraving functions: X/Y Engraving and X/A Engraving if 4th  Axis installed

Conversational to G-code conversion feature allows programming without G-code

Quick programming helical taper interpolation or helical taper threading

Inside/outside taper threading/Boring cycle

Swing arm type tool changer - 24 Tools

Wash down system with Coolant gun

Heavy-duty box way design

Through spindle coolant

Chip conveyor

Request Quote on This Model

Specifications

ITEM   MCV-1100
TABLE UNIT
Table size Mm (in) 1300 x 600 (51.18 x 23.62)
Table Height Mm (in) 840 (33)
Table loading capacity Kgs (Lbs) 800 (1760)
TRAVEL
X travel Mm (in) 1120 (44)
Y travel Mm (in) 635 (25)
Z travel Mm (in) 602 (23.7)
SPINDLE
Taper ISO 40
Spindle bearing inside diameter Mm (in)
Spindle speed RPM 10,000
Spindle center to column Mm (in) 675 (26.58)
Spindle nose to table Mm (in) 115-717 (4.5-28.25)
MOTOR
Spindle Kw (Hp) 11/15  kw  (15/20)
X axis Nm 14.84
Y axis Nm 14.84
Z axis Nm 27.34
Coolant pump Hp 3/4
ARM STYLE  ATC
Number of tools   24
Tool taper   CAT 40
Tool Select by Shortest Path   Bi-directional
Max. tool weight Kgs (Lbs) 8.9 (17.6)
Max. tool diameter Mm (in) 130 (5.12)
Max. tool diameter(Adjacent Pocket) Mm (in) 70 (2.76)
Max. Tool Length Mm (in) 300 (11.81)
PERFOMANCE
Rapid traverse X/Y/Z M/min (Ipm) 24 (1000)
Feed Rate X/Y/Z M/min (Ipm) 15 (600)
Positioning accuracy Mm (in) ±0.005 (±0.0002)
Repeatability Mm (in) ±0.002 (±0.00008)
DIMENTIONS
Length x Width x Height M (in) 3.3 x 2.5 x 2.8 (132 x 100 x 112)
Weight Kgs (Lbs) 6,000 (13,212)
Floor Space M (in) 5.27 x 3.25 (207 x 128)

Optional 4th Axis
