MAXCUT/LEADWELL V80i

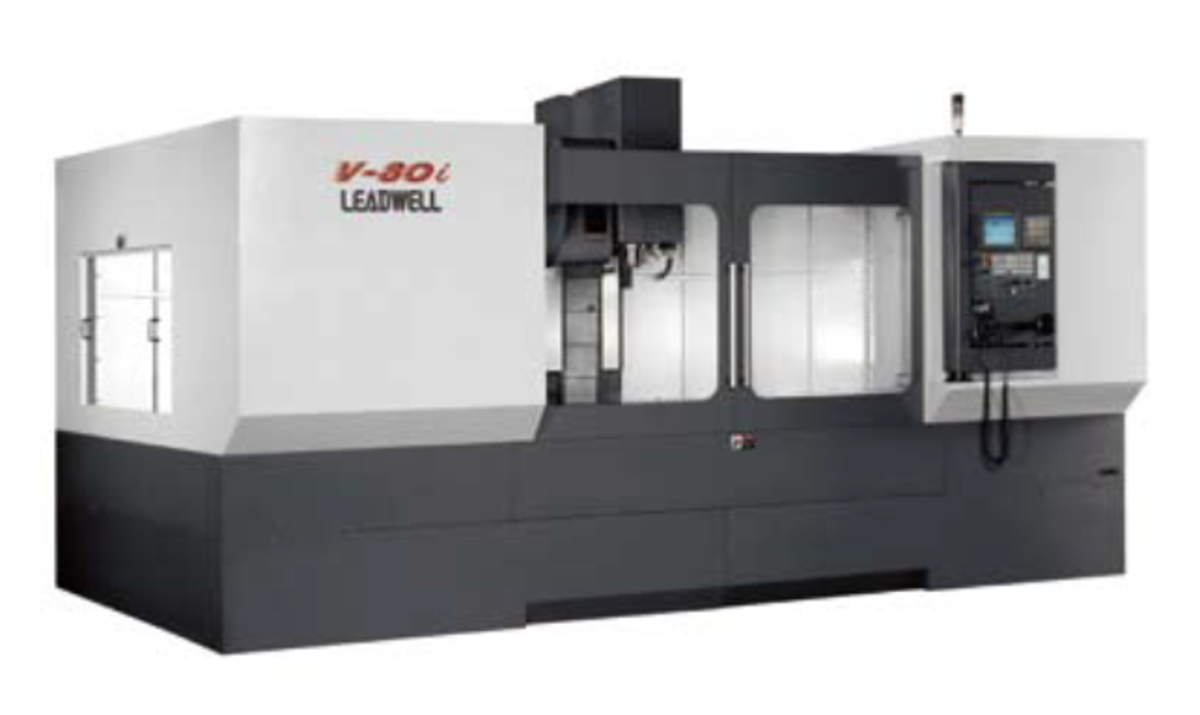

Product Image

FEATURES
Fagor 8055i/plus CNC control w/11” LCD color display or Fanuc OiMD w/10.4" LCD with manual guide 0i
10,000rpm spindle speed
2 speed gear drive
#50 taper,
30 position automatic tool changer
300PSI Coolant through spindle
Programmable Spindle air blast
Programmable spindle side air blow
Chain-type Chip Conveyer combined with chip-Augur
Coolant ring - a unique spindle annular coolant jet
Heavy-duty structure design:
4 linear roll guide ways on Y axis

Request Quote on This Model

SPECIFICATIONS

ITEM   MAXCUT/LEADWELL V80i
TABLE UNIT
Table size Mm (in) 2100 x 1000 (82.7 x 40)
Table Height Mm (in) 1000 (39.37)
Table loading capacity Kgs (Lbs) 1800 (3960)
TRAVEL
X travel Mm (in) 2040 (80.03)
Y travel Mm (in) 1000 (40)
Z travel Mm (in) 720 (28.3)
SPINDLE
Taper ISO 50
Spindle speed RPM 10000
Spindle center to column Mm (in) 760 (30.00)
Spindle nose to table Mm (in) 120-1045 (4.8 -41.8)
MOTOR
Spindle Kw (Hp) 22/33 (30/44)
X axis Nm (Ft-Lb) 14.8 (20)
Y axis Nm (Ft-Lb) 14.8 (20)
Z axis Nm (Ft-Lb) 27.3 (37)
Coolant pump W (HP) 900 (1.2)
SWING ARM STYLE ATC
Number of tools   30
Tool taper   CAT 50
Tool Select by   Shortest Path
Max. tool weight Kgs (Lbs) 20 (44)
Max. tool diameter (full tool) Mm (in) 127 (5)
Max. tool diameter Mm (in) 229 (9.02)
Max. Tool Length Mm (in) 300 (11.81)
PERFOMANCE
Rapid traverse X/Y/Z M/min (Ipm) 1000/1000/787 (25/25/20)
Feed Rate X/Y/Z M/min (Ipm) 10 (394)
Positioning accuracy Mm (in) 0.005 (0.0002)
Repeatability Mm (in) 0.005 (0.0002)
DIMENTIONS
Length x Width x Height M  (in) 3.9x4.2x3.7 (154x168x148)
Weight Kgs (Lbs) 13500 (29700)

Standard Equipment

10,000rpm spindle speed as standard Telescopic way covers
Low voltage circuit system 2 speed gear driver
Heater exchanger for electric cabinet Portable MPG
Heavily ribbed cast iron components Rigid tapping
Heavy-duty box way design : 4 box way on Y axis Coolant gun and air gun
One piece Box type base with internal rib design Precision ground ball screw
Fully enclosed & heavy duty metal guarding Wash down system
Low voltage circuit system Anchor kits
Large fully ground work table with 5 T slot ISO50 spindle
Automatic lubrication with low lubrication fault Spindle oil cooler
Auxiliary coolant filter system removes contamination and minute particles from the coolant
EMC -SCHAFFNER Brand EMC (electromagnetic compatibility) to avoid electrical noise
Removable side doors for handling large profile machining parts
Adjustable nozzles; Coolant system with check valve
Chain-type Chip Conveyer combined with built-in chip-Augur

Control features

Built-In engraving functions: X/Y Engraving and X/A Engraving if 4th Axis installed
Automatic TOOL LENGTH CALIBRATION finds the height of the tool automatically
Conversational to G-code programming conversion feature allows operator to program machining job without G code
Inside/outside taper threading/Boring cycle
Quick programming helical taper interpolation or helical taper threading

Optional 4th Axis

CNC-320R servo rotary table- Dia.320mm

SC-10” Chuck;

TS-B210 Tail Stock
