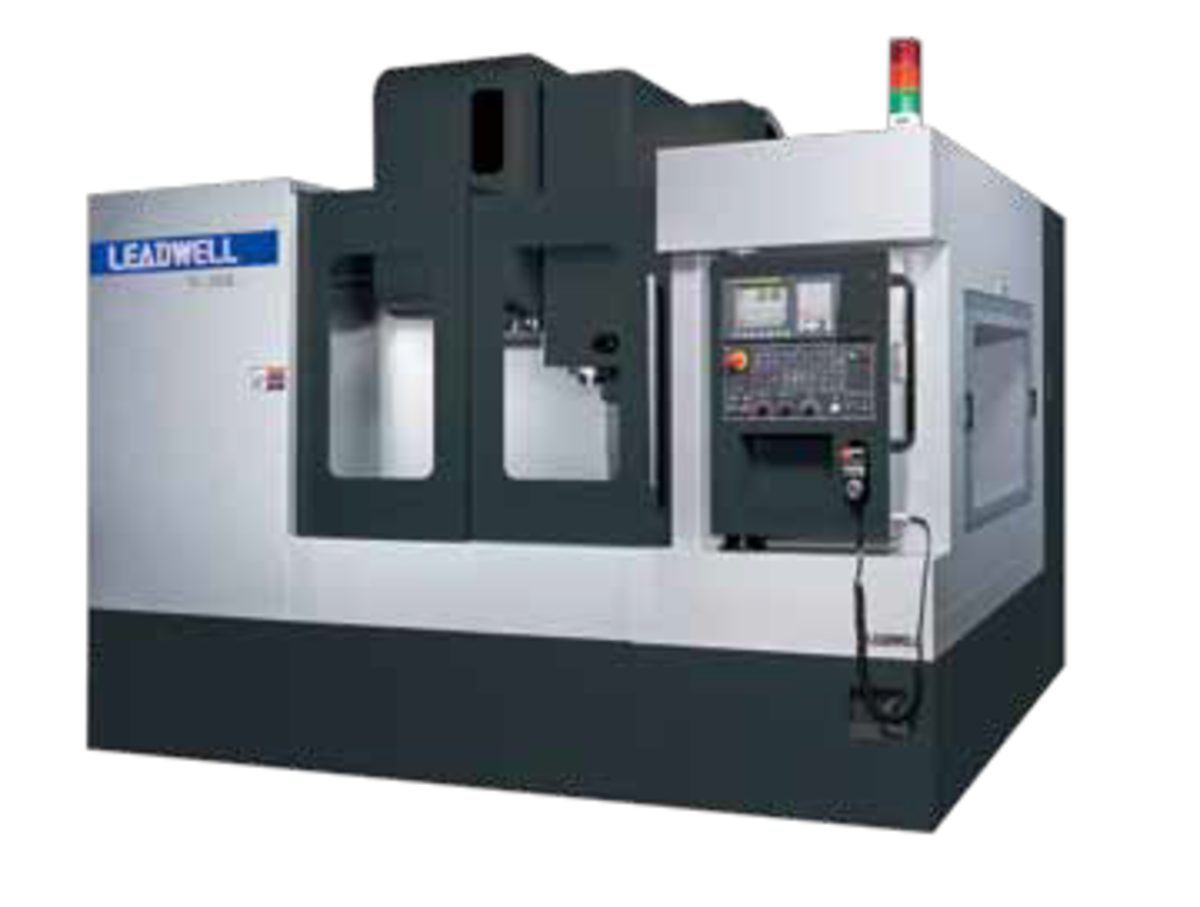

MAXCUT/LEADWELL V50L
FEATURES
Fagor 8055Power MC CNC Controller with 11” Color display
1417IPM rapid travel speed 20 bar
Coolant through spindle
Programmable spindle side air blow
Spindle air purge w/ valve
Coolant ring - a unique spindle annular coolant jet
Chain-type Chip Conveyer combined with chip-Augur
Roller Linear Guide Ways
Request Quote on This Model
SPECIFICATIONS
| ITEM | V50L | |
| TABLE | UNIT | |
| Table size | Mm (in) | 1 420 x 6 10 (56 x 24) |
| T-slots width x dist. x number | Mm (in) | 18 x 100 x 6 (0.71 x 3.94 x 6) |
| Table loading capacity | Kgs (Lbs) | 1000 (2200) |
| TRAVEL | ||
| X travel | Mm (in) | 1270 (50.0) |
| Y travel | Mm (in) | 635 (25.0) |
| Z travel | Mm (in) | 610 (24.0) |
| SPINDLE | ||
| Taper | 40 BT/CT | |
| Spindle speed | RPM | 8000 |
| Spindle center to column | Mm (in) | 635 (25) |
| Spindle nose to table | Mm (in) | 100-710 (4 .0 – 28) |
| MOTOR | ||
| Spindle | Kw (Hp) | 1 5/ 22( 30m in) (2 0/ 30( 30m in)) |
| X axis | Nm (Ft-Lb) | 18 (13.2) |
| Y axis | Nm (Ft-Lb) | 18 (13.2) |
| Z axis | Nm (Ft-Lb) | 18 (13.2) |
| Coolant pump | W (HP) | 200 (1/4) |
| SWING ARM STYLE ATC | ||
| Number of tools | 2 4/ 3 0 option | |
| Tool taper | 40 BT/ CT | |
| Tool Select by | shortest path | |
| Max. tool weight | Kgs (Lbs) | 8 (17.6) |
| Max. tool diameter (full tool) | Mm (in) | 80 (3.15) |
| Max. tool diameter | Mm (in) | 125 (5.0) |
| Max. Tool Length | Mm (in) | 250 (10) |
| PERFOMANCE | ||
| Rapid traverse X/Y/Z | M/min (Ipm) | 36 (1417) |
| Feed Rate X/Y/Z | M/min (Ipm) | 12 (500) |
| Positioning accuracy | Mm (in) | 0.005 (0.0002) |
| Repeatability | Mm (in) | 0.005 (0.0002) |
| DIMENTIONS | ||
| Length x Width x Height | INCH | 1 51 x 9 2 x1 0 8 |
| Weight | KGS (LBS) | 8800 (19360) |
Standard Equipment
| 8000rpm spindle speed as standard, 10000/12000RPM as optional ( V50L) | |
| 12,000RPM spindle speed with 2 speed gear box (V60S) | |
| ISO40 spindle | Telescopic way covers |
| Heater exchanger for electric cabinet | Portable MPG |
| Heavily ribbed cast iron components | Rigid tapping |
| Coolant system with checked valve | 1417IPM rapid travel speed |
| One piece Box type base with internal rib design | Precision ground ball screw |
| Full enclosure & heavy duty metal guarding | Wash down system |
| Spindle head thermal stability enhancements with oil cooler | |
| Large fully ground work table with 5 T slots | |
| Automatic lubrication with low lubrication fault | |
| Precision ground, premium Quality, preloaded double-nut ball screws | |
| EMC (electromagnetic compatibility) to avoid electric noise | |
| Removable side doors for handling large profile machining parts | |
| Automatic tool changer -24 Tools, Swing arm type | |
| Roller Linear guide ways ensure higher rigidity for high speed, high accuracy and heavy duty load |
Control features
| Built-In engraving functions: X/Y Engraving and X/A Engraving if 4th Axis installed |
| Automatic TOOL LENGTH CALIBRATION finds the height of the tool automatically |
| Conversational to G-code programming conversion feature allows operator to program the job without G code |
| Inside/outside taper threading/Boring cycle |
| Quick programming helical taper interpolation or helical taper threading |
Optional 4th Axis
CNC-250R servo rotary table-Dia.250mm
SC-8” Chuck;
SC-8” Manual tail stock
