MAXCUT/LEADWELL V-60S

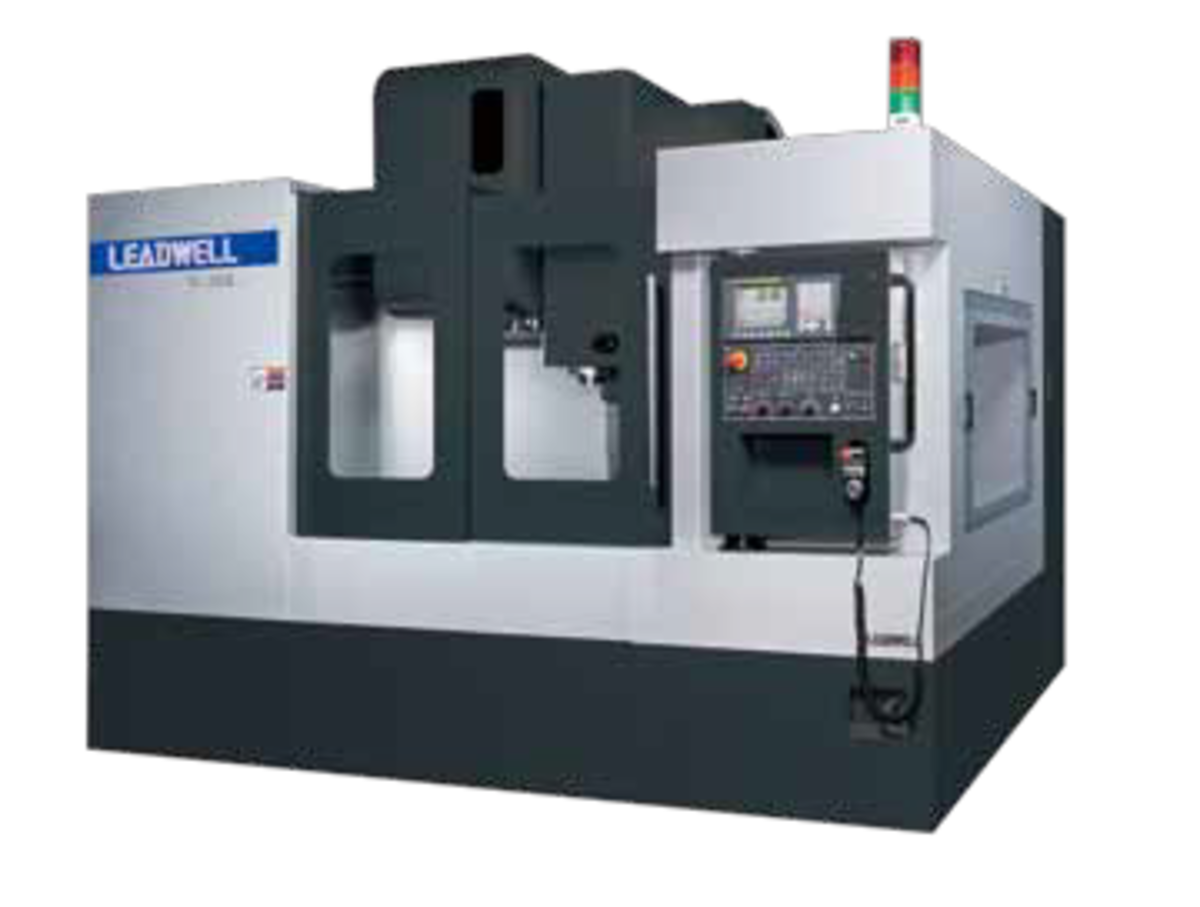

Product Image

FEATURES
Fagor 8055Power MC CNC Controller with 11” Color display
1417IPM rapid travel speed 20 bar
Coolant through spindle
Programmable spindle side air blow
Spindle air purge w/ valve
Coolant ring - a unique spindle annular coolant jet
Chain-type Chip Conveyer combined with chip-Augur
Roller Linear Guide Ways

Request Quote on This Model

SPECIFICATIONS

ITEM   V60S
TABLE UNIT
Table size Mm (in) 1 550 x 6 10 (61 x 24)
T-slots  width x dist. x number Mm (in) 18 x 100 x 6 (0.71 x 3.94 x 6)
Table loading capacity Kgs (Lbs) 1000 (2200)
TRAVEL
X travel Mm (in) 1520 (60.0)
Y travel Mm (in) 635 (25.0)
Z travel Mm (in) 610 (24.0)
SPINDLE
Taper   40 BT/CT
Spindle speed RPM 12000
Spindle center to column Mm (in) 635 (25)
Spindle nose to table Mm (in) 100-710 (4 .0 – 28)
MOTOR
Spindle Kw (Hp) 1 5/ 22( 30m in)   (2 0/ 30( 30m in))
X axis Nm (Ft-Lb) 19.4 (14.3)
Y axis Nm (Ft-Lb) 19.4 (14.3)
Z axis Nm (Ft-Lb) 19.4 (14.3)
Coolant pump W (HP) 750 (1)
SWING ARM STYLE ATC
Number of tools   2 4/ 3 0 option
Tool taper   40 BT/ CT
Tool Select by   shortest path
Max. tool weight Kgs (Lbs) 8 (17.6)
Max. tool diameter (full tool) Mm (in) 80 (3.15)
Max. tool diameter Mm (in) 110 (4.3)
Max. Tool Length Mm (in) 250 (10)
PERFOMANCE
Rapid traverse X/Y/Z M/min (Ipm) 36 (1417)
Feed Rate X/Y/Z M/min (Ipm) 12 (500)
Positioning accuracy Mm (in) 0.005 (0.0002)
Repeatability Mm (in) 0.005 (0.0002)
DIMENTIONS
Length x Width x Height INCH 208 x 9 2 x1 0 8
Weight KGS (LBS) 9800 (21560)

Standard Equipment

8000rpm spindle speed as standard, 10000/12000RPM as optional  ( V50L)
12,000RPM spindle speed with 2 speed gear box  (V60S)
ISO40 spindle Telescopic  way covers
Heater exchanger for electric cabinet Portable MPG
Heavily ribbed cast iron components Rigid tapping
Coolant system with checked valve 1417IPM rapid travel speed
One piece Box type base with internal rib design Precision ground ball screw
Full enclosure & heavy duty metal guarding Wash down system
Spindle head thermal stability enhancements with oil cooler
Large fully ground work table with 5 T slots
Automatic lubrication with low lubrication fault
Precision ground, premium Quality, preloaded double-nut ball screws
EMC (electromagnetic compatibility) to avoid electric noise
Removable side doors for handling large profile machining parts
Automatic tool changer -24 Tools, Swing arm type
Roller Linear guide ways ensure higher rigidity for high speed, high accuracy and heavy duty load

Control features

Built-In engraving functions: X/Y Engraving and X/A Engraving if 4th Axis installed
Automatic TOOL LENGTH CALIBRATION finds the height of the tool automatically
Conversational to G-code programming conversion feature allows operator to program the job without G code
Inside/outside taper threading/Boring cycle
Quick programming helical taper interpolation or helical taper threading

Optional 4th Axis

CNC-250R servo rotary table-Dia.250mm

SC-8” Chuck;

SC-8”  Manual tail stock
