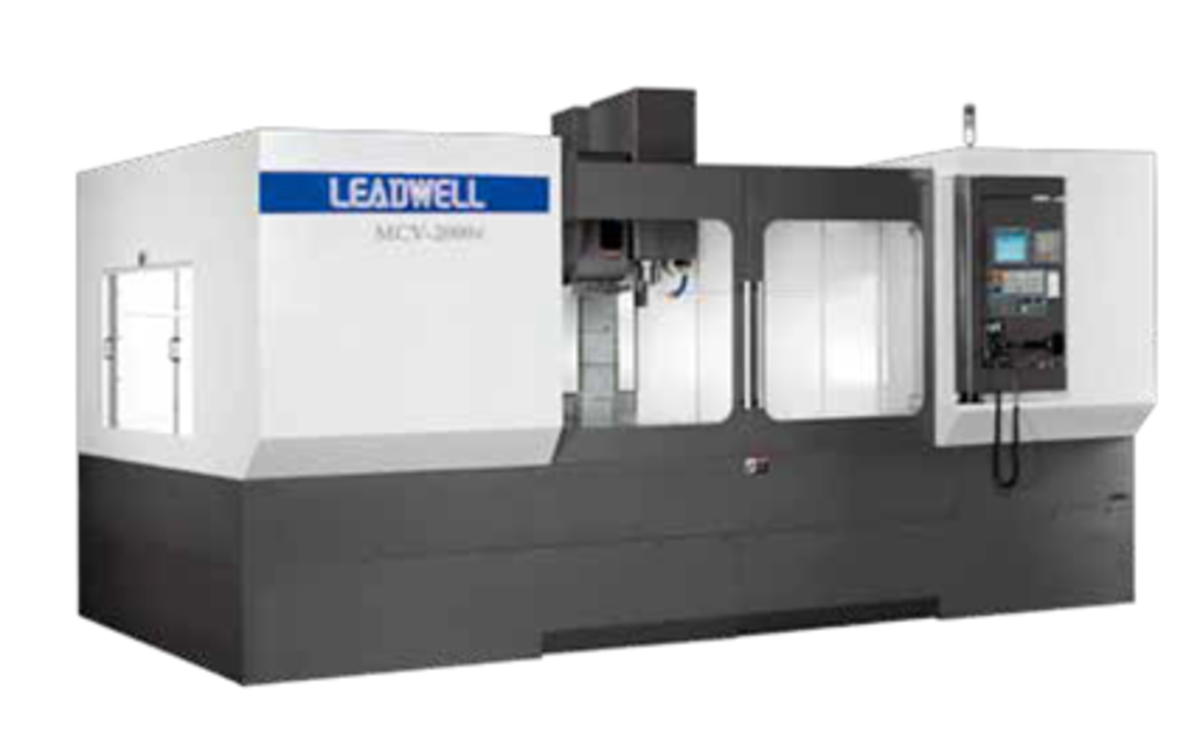

MAXCUT/LEADWELL MCV-2000i
FEATURES
Fagor 8055i/plus MC CNC Controller with 11” Color display
Chain-type Chip Conveyer combined with chip-Augur
300PSI Coolant through spindle
Coolant ring - a unique spindle annular coolant jet
Programmable spindle side air blow
Programmable Spindle air blast
Top cover
Request Quote on This Model
SPECIFICATIONS
| ITEM | MCV-2000i | |
| TABLE | UNIT | |
| Table size | Mm (in) | 2100 x 1000 ( 80.3 x 40) |
| Table Height | Mm (in) | 1000 (39.37) |
| Table loading capacity | Kgs (Lbs) | 2500 ( 5500) |
| TRAVEL | ||
| X travel | Mm (in) | 2040 (81) |
| Y travel | Mm (in) | 1000 (40.00) |
| Z travel | Mm (in) | 940 (37.00) |
| SPINDLE | ||
| Taper | ISO | 50 |
| Spindle speed | RPM | 6000 |
| Spindle center to column | Mm (in) | 1000 (40.00) |
| Spindle nose to table | Mm (in) | 120-1045 (4.8-41.8) |
| MOTOR | ||
| Spindle | Kw (Hp) | 22/33 (30/44) |
| X axis | Nm (Ft-Lb) | 14.8 (20) |
| Y axis | Nm (Ft-Lb) | 14.8 (20) |
| Z axis | Nm (Ft-Lb) | 27.3 (37) |
| Coolant pump | W (HP) | 900 (1.2) |
| SWING ARM STYLE ATC | ||
| Number of tools | 30 | |
| Tool taper | CAT | 50 |
| Tool Select by | Shortest Path | |
| Max. tool weight | Kgs (Lbs) | 20 (44) |
| Max. tool diameter (full tool) | Mm (in) | 127 (5) |
| Max. tool diameter | Mm (in) | 229 (9.02) |
| Max. Tool Length | Mm (in) | 300 (11.81) |
| PERFOMANCE | ||
| Rapid traverse X/Y/Z | M/min (Ipm) | 787 (20) |
| Feed Rate X/Y/Z | M/min (Ipm) | 10 (394) |
| Positioning accuracy | Mm (in) | 0.005 (0.0002) |
| Repeatability | Mm (in) | 0.005 (0.0002) |
| DIMENTIONS | ||
| Length x Width x Height | Inch | 154x168x148 |
| Weight | Kgs (Lbs) | 18500 (40700) |
Standard Equipment
| 6,000rpm spindle speed as standard | Telescopic way covers |
| Chip Conveyer with chip collector | 2 speed gear driver |
| Heater exchanger for electric cabinet | Portable MPG |
| Heavily ribbed cast iron components | Rigid tapping |
| Heavy-duty box way design : 4 box way on Y axis | Coolant gun and air gun |
| One piece Box type base with internal rib design | Precision ground ball screw |
| Fully enclosure & heavy duty metal guarding | Wash down system |
| Low voltage circuit system | Anchor kits |
| Large fully ground work table with 5 T slot | ISO50 spindle |
| Automatic lubrication with low lubrication fault | Spindle oil cooler |
| Auxiliary coolant filter system removes contamination and minute particles from the coolant | |
| EMC -SCHAFFNER Brand EMC (electromagnetic compatibility) to avoid electrical noise | |
| Removable side doors for handling large profile machining parts | |
| Adjustable nozzles; Coolant system with check valve |
Control features
| Built-In engraving functions: X/Y Engraving and X/A Engraving if 4th Axis installed |
| Automatic TOOL LENGTH CALIBRATION finds the height of the tool automatically |
| Conversational to G-code programming conversion feature allows operator to program machining job without G code |
| Inside/outside taper threading/Boring cycle |
| Quick programming helical taper interpolation or helical taper threading |
Optional 4th Axis
CNC-320R servo rotary table- Dia.320mm
SC-10” Chuck;
TS-B210 Tail Stock
