Maxcut 4425

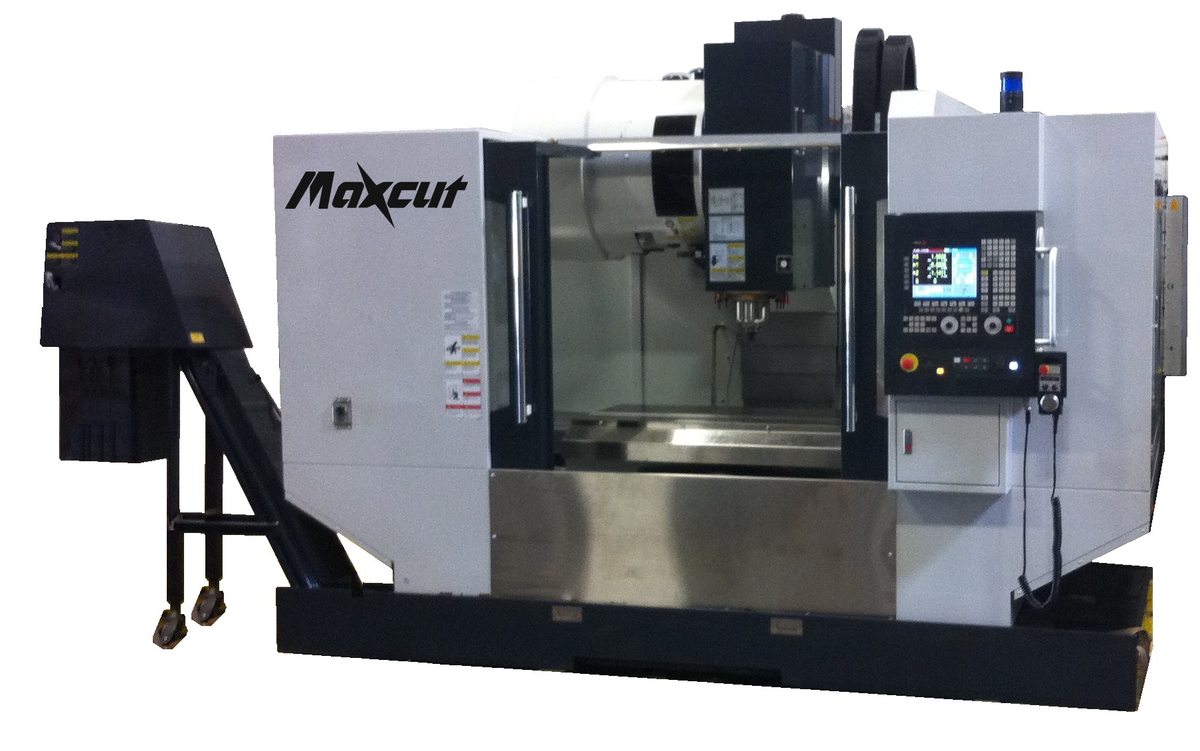

Product Image

FEATURES
CNC Control Supplied and Serviced by Fagor Automation USA
Built-In engraving functions: X/Y Engraving and X/A Engraving if 4th Axis installed
Automatic tool length calibration finds the height of the tool automatically
Conversational to G-code conversion feature allows programming without G-code
Quick programming helical taper interpolation or helical taper threading Inside/outside taper threading/Boring cycle
Heavy-duty box way design

Request Quote on This Model

Specifications

ITEM   MAXCUT MCV-4425
TABLE UNIT
Table size Mm (in) 1300 x 600 (51.18 x 23.62)
Table Height Mm (in) 840 (33)
Table loading capacity Kgs (Lbs) 800 (1760)
TRAVEL
X travel Mm (in) 1120 (44)
Y travel Mm (in) 635 (25)
Z travel Mm (in) 610 (24)
SPINDLE
Taper ISO 40
Spindle bearing inside diameter Mm (in) 70 (2.752)
Spindle speed RPM 8000
Spindle center to column Mm (in) 675 (26.58)
Spindle nose to table Mm (in) 30-640 (1.18-25.19)
MOTOR
Spindle Kw (Hp) 21.6 (29)
X axis Nm 14.84
Y axis Nm 14.84
Z axis Nm 27.34
Coolant pump Hp 3/4
ARM STYLE  ATC
Number of tools   24
Tool taper   CAT 40
Tool Select by Shortest Path   Bi-directional
Max. tool weight Kgs (Lbs) 8.9 (17.6)
Max. tool diameter Mm (in) 130 (5.12)
Max. tool diameter(Adjacent Pocket) Mm (in) 70 (2.76)
Max. Tool Length Mm (in) 300 (11.81)
PERFOMANCE
Rapid traverse X/Y/Z M/min (Ipm) 24 (1000)
Feed Rate X/Y/Z M/min (Ipm) 15 (600)
Positioning accuracy Mm (in) ±0.005 (±0.0002)
Repeatability Mm (in) ±0.002 (±0.00008)
DIMENTIONS
Length x Width x Height M (in) 3.3 x 2.5 x 2.8 (132 x 100 x 112)
Weight Kgs (Lbs) 6,000 (13,212)
Floor Space M (in) 5.27 x 3.25 (207 x 128)

STANDARD EQUIPMENT


ISO40 spindle

Rigid tapping

Portable MPG

One piece Box type base with internal rib design

Heavily ribbed cast iron components

Large fully ground work table with 5 T slot

Precision ground ball screws

Heavy-duty box way design

Telescopic way covers

210L-55Gal. coolant tank

Automatic lubrication with low lubrication fault

Low voltage circuit system

Chip auger Conveyer

Heater exchanger

EMC -SCHAFFNER Brand EMC (electromagnetic compatibility)

Swing arm type tool changer - 24 Tools

Chip conveyer

Wash down system with Coolant gun

Through spindle coolant

15/18.5Hp spindle motor in place of 10HP

FAGOR 8055i CONTROL

High speed machining

•Advanced algorithms for very accurate parts.

•Adaptive machining dynamics for best execution time.

•Work in inclined planes.

Easier machine setup

•Setup systems with graphic assistance.

•Oscilloscope function to help optimize axis behaviour.

•Circularity (roundness) test that helps improve the behaviour of the machine when reversing the moving direction.




Operation with the user in mind

•Operation designed for operators of conventional machines without prior programming knowledge as well as for experts on ISO-coded language.

Part preparation assistance

•Manual and automatic tool calibration.

•Part centering and part measuring cycles.

•Management of multiple part zero offsets.

•Part damage estimation.

Programming languages

•ISO-coded language for large series where optimizing the program is most important so execution time is as short as

   possible.

•Conversational language for small series or unitary (single) parts. It has been conceived for shops where programming

   time is a critical factor.



OPTIONAL 4th AXIS
