LEADWELL V40iT

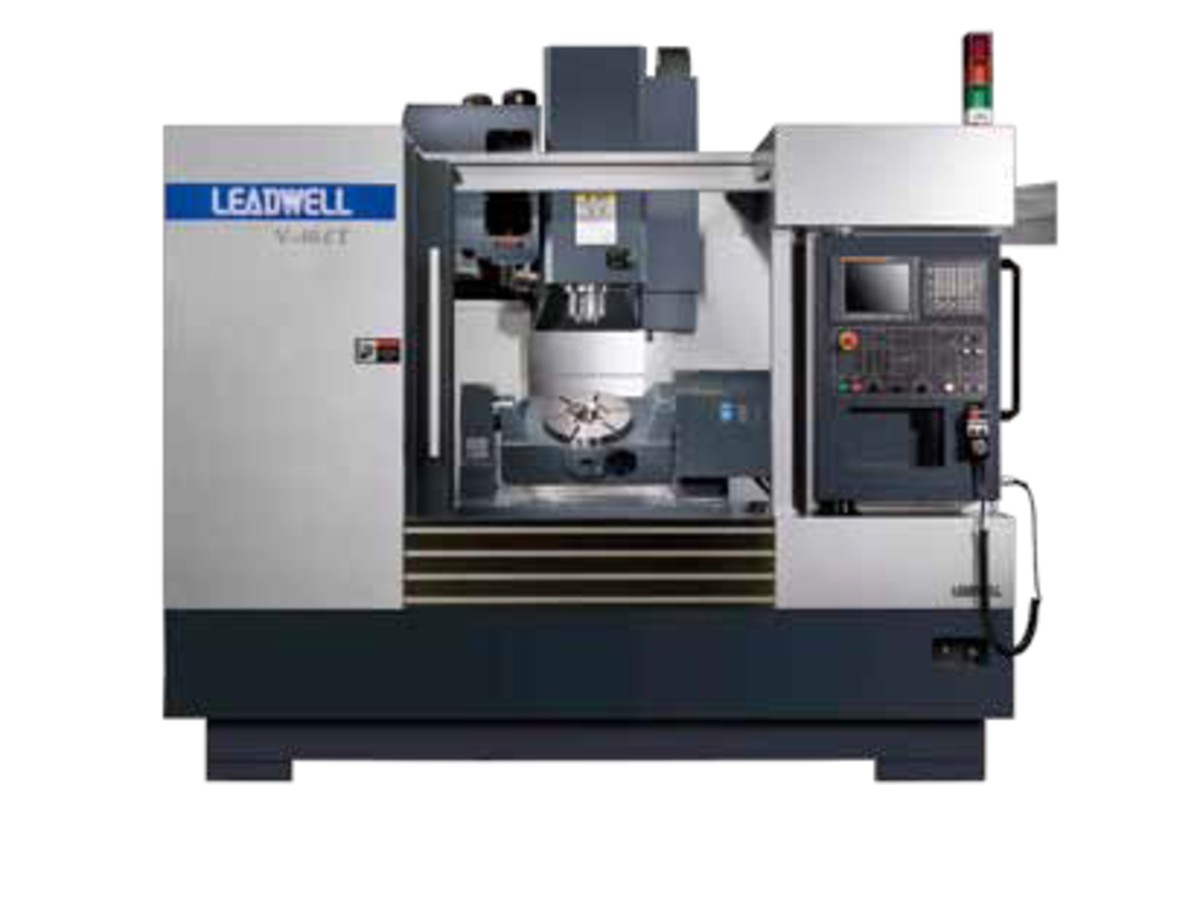

Product Image

FEATURES:

Fagor 8065 control

coolant ring CTS 300PSI

A/C axis brake

Wash down system

12000rpm spindle speed + oil cooler

Parkson table + 400 x 600 fixture plate

Rapid/feed rate on X/Y/Z: 1414IPM/792IPM

Rapid/Feed rate on A/C:150 degree/sec

Spindle air purge w/ valve

Linear roller guide way for high speed and high torque machining

Chip conveyor combined with built-in chip augur in base

24T ATC --high speed tool changer 1.8 sec tool to tool

Request Quote on This Model

SPECIFICATIONS

A.T.C Arm
X axis travel  mm(in) 846 (33)
Y axis travel   mm(in) 635 (25)
Z axis travel   mm(in) 488 (19.2)
Table size (L x W)   mm(in) 350 ( 13.8)
Max. table load  kg 200
Spindle speed   rpm 10000  (12000 optional)
Rapid traverse X/Y/Z   m/min(ipm) 36/36/36 (1417/1417/1417)
Tool storage capacity 24
X/Y/Z axis motor   kw(hp) 18.5 (24.8)
Machine size   mm 3840 x 2200 x 2721
Machine weight   kg 7000

V-40iT Video
