Compact - Gantry type 5-Axis Machining Center

Download
  • Ken Compact B

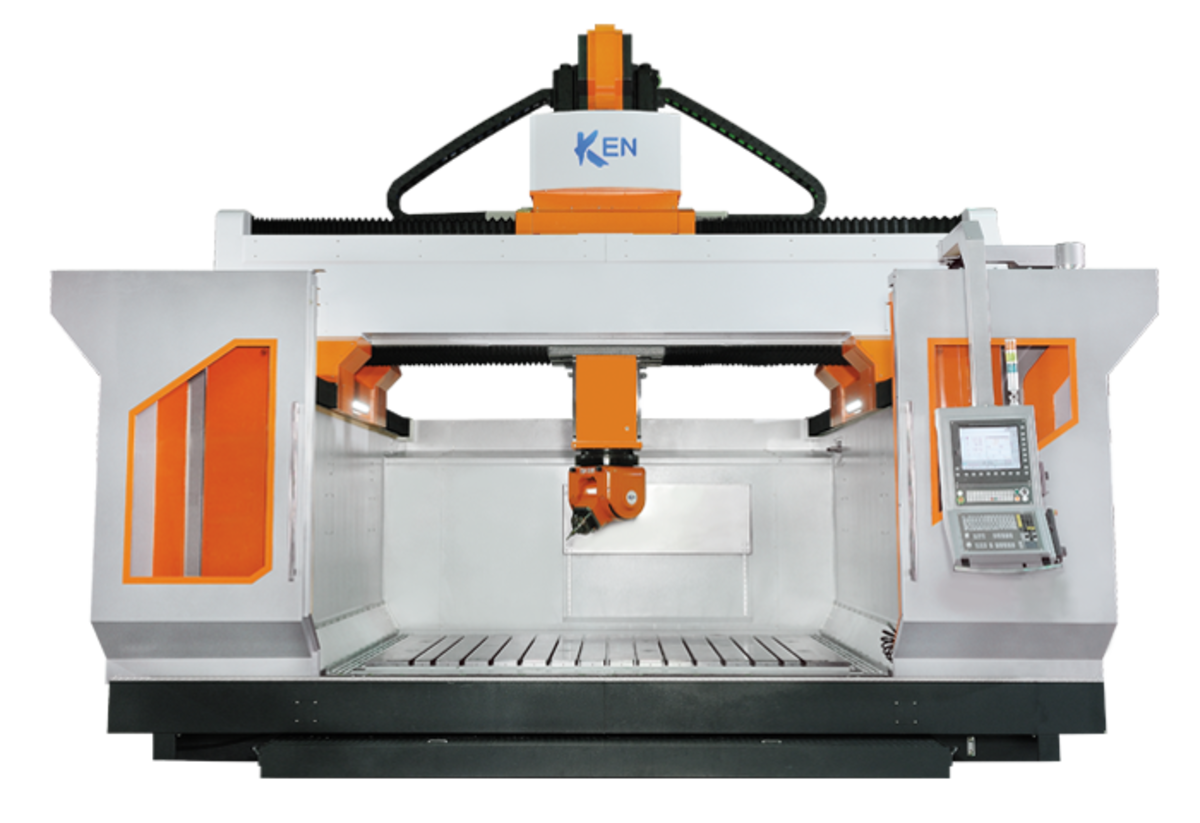

Product Image

The Ken Compact gantry type 5-axis machining centre incorporates a highly specialized design for high speed / high precision 5-axis machining of molds and aircraft components. The design encompasses the following features: - a one piece cast base and wall construction - a torque motor driven 2-axis milling head - back lash free linear motor drives on the X and Y axes with minimal wear ‘n tear - dual ball screw drives on the Z-axis for maximum torque - all axial movements on top of the machine with the workpiece on a stationary fixed table for maximum work piece load capacity and minimum floor space requirements - a choice of 2-xis milling heads and spindles to best-fit specific machining applications

Request Quote on This Model

Specifications

Specifications /Mold Unit Compact B-2516 Compact B-2522 Compact B-3222
X-axis Travel mm 1600 2200 2200
Y-axis Travel mm 2500 2500 3200
Z-axis Travel mm 1250 1250 1250
Table
Table size mm 2500x1600 2500x2200 3200x2200
T-slot size (Width) mm 22 22 22
Table load Kg/m² 4000 4000 4000
Distance between spindle nose mm 250~1500 250~1500 250~1500
Distance between column mm 3250 3250 3950
Feedrate
Drive mode X/Y/Z Linear motor / Linear motor / Double ball screw
X/Y/Z-axis rapid feedrate m/min 60
X/Y/Z-axis acceleration m/sec² 5
Auto tool changer
Tool shank HSK A63 HSK A100
Tool magazine capacity Pcs 30 30
Max. tool weight Kgs 8 15
Max. tool length mm 350 350
Max. tool dimensions mm Ø 80 Ø 100

Automatic Tool Changer for Both Machine Sizes

Tool shank

HSK-A63

HSK-A100

Maximum tool weight

8kg (17.6 lbs.)

15kg (33 lbs.)

Maximum tool length

350mm (13.7”)

350mm (13.7”)

Maximum tool diameter

63mm (2.48”)

100mm (3.93”)

TCH-L13(EVO) Milling Head (B&C Axis)


TCH-19(A63) Milling Head (B&C Axis)


TCH-19(A100) Milling Head (B&C Axis)
