Focus5 - 5 Axis Double Column Machining Center

Download
  • Ken Focus 5

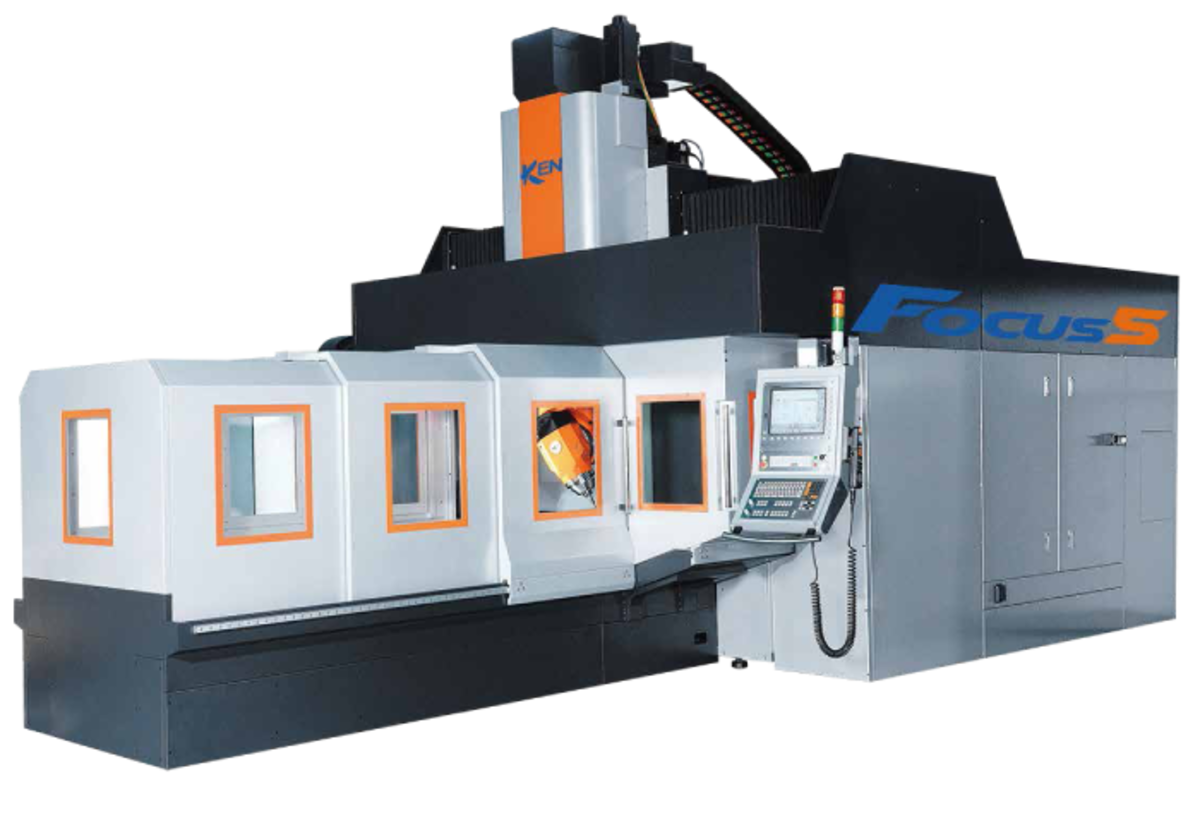

Product Image

5-AXIS DOUBLE COLUMN MACHINE CENTER

High rigidity one piece column structure.

Linear motor drives.

Rapid feedrate:60m/min.

Direct-drive motor two-axis milling head.

Request Quote on This Model

Specifications

Specifications /Mold Unit Focus 5 - 2022 / 2032 / 2040
Travel
X-axis Travel mm 2,200 / 3,200 / 4,000
Y-axis Travel mm 2000
Z-axis Travel mm 1000
Distance between column mm 1,650
Table length mm 2,200 / 3,200 / 4,000
Table width   1,300
T-slot size (Width) mm 18
Table load Kg 4000
T-slot spacing mm 125

TCH-L13(EVO) Milling Head (B&C Axis)


TCH-19(A63) Milling Head (B&C Axis)
