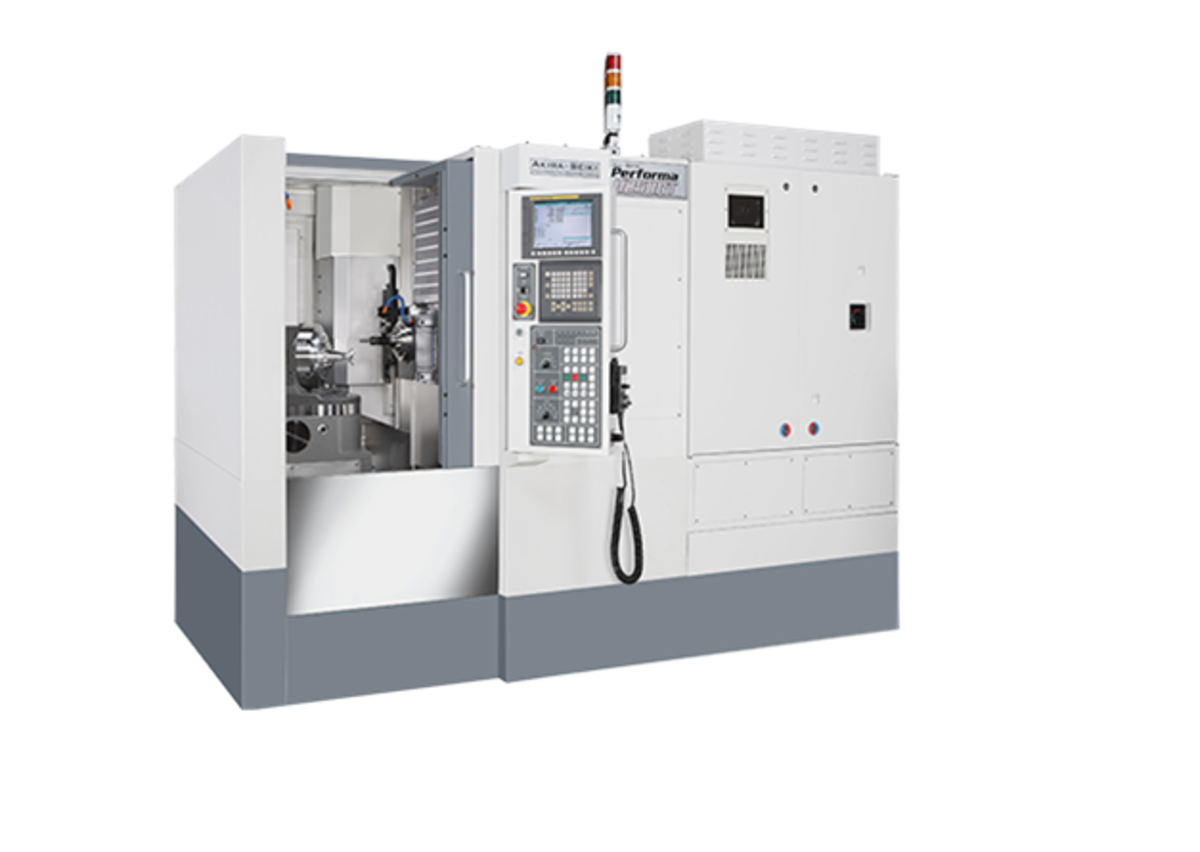

H250RT
AKIRA-SEIKI
B/C Axis Table with Zero-Backlash Technology
Request Quote on This Model
Specifications
| Item | H250RT | |
| Travel | ||
| X-axis | mm/inch | 350/13.8 |
| Y-axis | mm/inch | 250/9.8 |
| Z-axis | mm/inch | 325/12.8 |
| Rapid Feed | ||
| X/Y/Z | m/min | 48/48/48 |
| Working Area | ||
| Table Diameter | mm/inch | 250/9.8 |
| Maximum Load | kg/lbs | 120/264.6 |
| Spindle | ||
| Maximum Speed | rpm | 12,000 / 15,000(opt) |
| ATC | ||
| Tool Storage | 40T / 60T(opt) | |
| Floor Space | mm/inch | 1171 x 3190 / 46 x 125.6 |
B/C Axis Table
