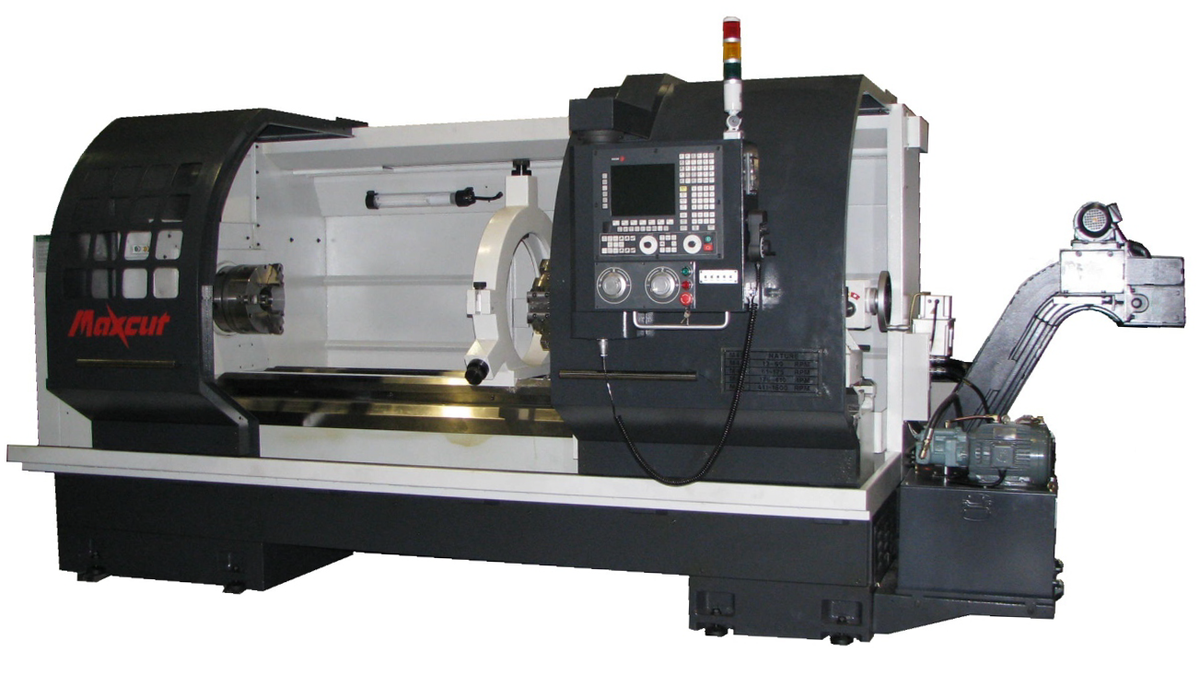

MLNC-2280MD-4
STANDARD FEATURES AND ACCESSORIES
D1-11 Spindle nose, 4" spindle bore
4 step gear change, 1600RPM spindle speed
15HP AC spindle motor
8 position hydraulic turret
Over-size cross slide preparing for 2nd tool post
16" WIDE BED
Auto Lubrication System
Coolant System
Fully enclosure
Chip conveyor
12" 3 jaw chuck
18" 4 jaw chuck
14" steady rest
Tailstock Center
Tool Box with Tools
Work Light
Operation & Service Manual
Request Quote on This Model
Specifications
| MODEL | MLNC-2280MD-4 |
| CAPACITY | |
| Swing over Bed | 560 mm (22") |
| Swing over Cross Slide | 280 mm (11") |
| Distance Between Centers | 1500mm(60"), 2000mm(80"), 3000mm(120") |
| BED | |
| Width of Bed | 400 mm (16") |
| SPINDLE | |
| Spindle nose mounting | D1-11 |
| Spindle bore | 104 mm (4") |
| Spindle speeds (4 Steps) | 13-1600 rpm |
| TREVAL AND FEED | |
| x-axis travel | 350 mm |
| z-axis travel | 1800mm (80") |
| X/Z axis Feed speed | 0 - 5 m/min |
| Rapid Speed | 15m/min |
| Ball screw diameter | X-axis: 32 , Z-axis: 50 |
| HYDRAULIC TURRET | |
| Tool Position | 8 |
| Tool size | 25 x 25 mm |
| Max boring bar diameter | 38mm (1-1/2") |
| TAIL STOCK | |
| Tailstock quill diameter | 95 mm |
| Taper of center | MT#5 |
| Quill travel | 230 mm |
| MOTOR | |
| Main spindle motor | 15 HP |
| Coolant pump motor | 1/4 HP |
| GENERAL | |
| POWER REQUEST | 30Amps @400V 3 phases |
| WEIGHT | 5080Kg (11,176Lbs) |
| DIMENSIONS | 5550x2270x2270mm (218" x 90" x 90") |
