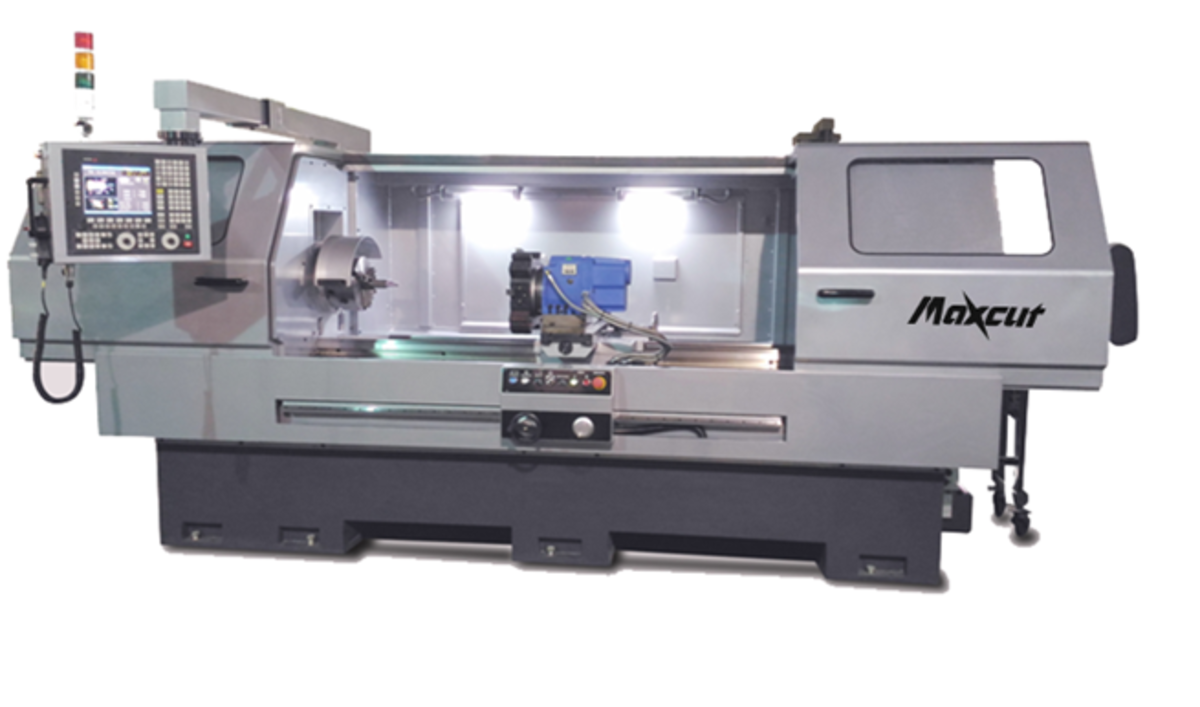

MLNC-2080SSG
FEATURES
Fagor 8055 Control
Fagor Servo motor X & Z axis and Main motor
3-Jaw chuck 10” (direct mounted)
4-Jaw chuck 12” (direct mounted)
Quick change toolpost with 6-toolholder
Encoder for spindle RPM
86mm dia. Spindle Bore with D1-8 Camlock
330mm Bed width
Automatic speed change
Coolant pump
Auto lubrication
Work lamp
Safety Guard Including: Rear Splash Guard,Sliding Doors in front
Request Quote on This Model
SPECIFICATIONS
| NOMINAL SIZE | |
| Swing Over Bed | 510mm 20” |
| Height of Center | 255mm 10” |
| Swing Over Cross Slide | 305mm 12” |
| Distance Between Centers | 2000mm 80” |
| Width of Bedways | 330 mm 13 inch |
| HEADSTOCK | |
| Spindle Nose Mounting | D1-8 Camlock |
| Spindle Bore | 86mm 3-3/8” |
| Taper of Spindle Bore | MT#7 (Sleeve MT#5) |
| Spindle Speed High | 2000-240 RPM |
| Spindle Speed Medium | 380-45 RPM |
| Spindle Speed Low | 84-10 RPM |
| SLIDE | |
| Cross Slide Travel (X Axis) | 280mm 11” |
| Dia. of Ballscrew | 25mm |
| Rapid Travel (X Axis) | 6 m/min |
| Servo Motor (X Axis) | 7.3N/m |
| Longitudinal Travel (Z Axis) | 1940mm 76-3/8” |
| Dia. of Ballscrew | 40 mm |
| Rapid Travel (Z Axis) | 8 m/min |
| Servo Motor (Z Axis) | 9.3 N/m |
| TURRET | |
| Max. Cutting Tools | 25 mm |
| TAILSTOCK | |
| Quill Diameter | 75 mm 3” |
| Quill Taper | MT#5 |
| Quill Travel | 160mm 6-5/16” |
| MOTOR | |
| Main Motor | 10 HP 7.5kw |
| Coolant Pump | 1/8 HP 25L/min 0.4kg/cm2 |
| WEIGHT | |
| Machine Weight | 2600 kgs |
ACCESSORIES
| STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |
| CNC control system | Face plate |
| Back plate for chuck | Follow rest |
| Coolant pump | Quick change toolpost with 4 pcs toolholders |
| Automatic lubrication system | Electrical 4 way toolpost |
| Work lamp | Hydraulic 8 station turret |
| Safety guard | Hydraulic chuck with draw bar & foot pedal operation |
| Center sleeve | Hydraulic tailstock |
| Tool box and adjusting tools | Live center |
| Two dead centers | |
| Operational manual & parts list | |
| 3-jaw scroll chuck | |
| 4-jaw independent chuck | |
| Steady rest | |
| Electrical 8 station turret |
