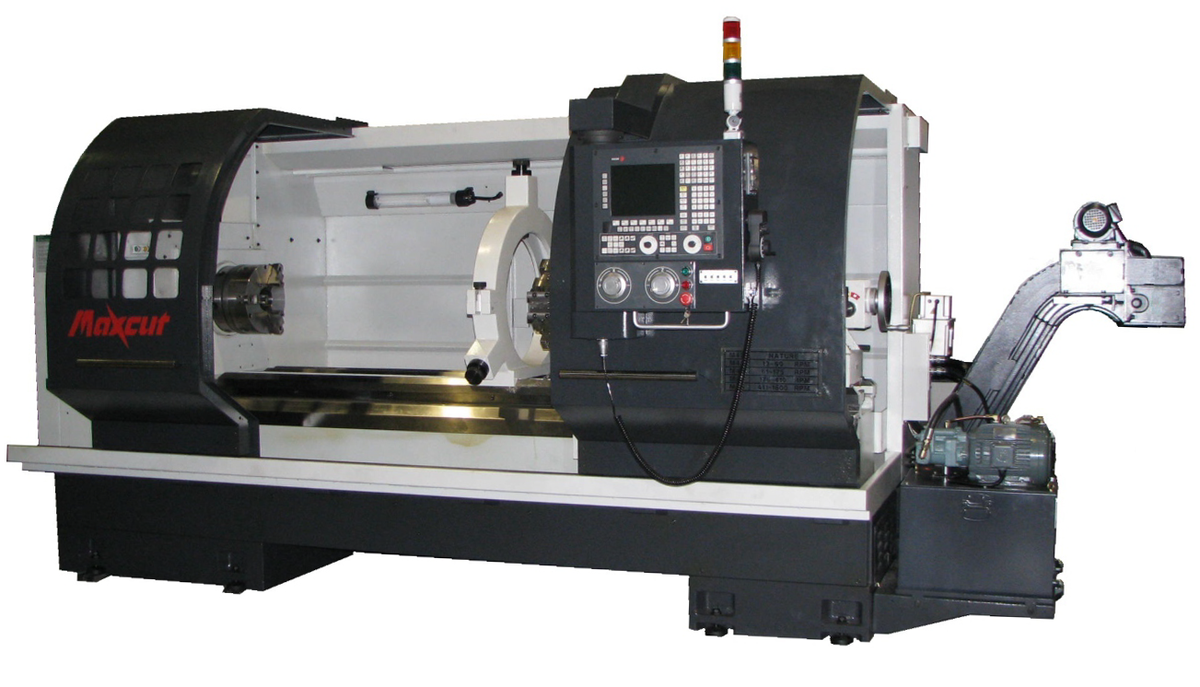

MAXCUT TNC6-2680
FEATURES
Fagor 8055i-A TC controller, 11” LCD
Fagor spindle motor 15KW Double chuck front/rear mounting- 16” SK-16 3-Jaw chuck (160mm bore) A2-11 Spindle
4” (104mm) spindle bore at 1600RPM
4 step Hyd. Shifting System for spindle Hyd.
8-Tool Turret (Taiwan) DC Servo Motor for X & Z Axes
Coolant System
18" WIDTH BED 3V Bed
6” (156mm) spindle Bore at 1000RPM
Steady Rest 50-380mm
Chip Conveyor
Full enclosure with vision window
Automatic Lubrication
Work light
Request Quote on This Model
SPECIFICATIONS
| Swing over bed | Mm (in) | 670 (26.375) |
| Swing over cross slide | Mm (in) | 380 (15) |
| Distance between centers | Mm (in) | 2000 (80) |
| Bar capacity | In | 6.0 |
| Steady rest | Mm (in) | 50-380 (1.97-14.96) |
| Width of bed | Mm (in) | 460 (18) |
| TRAVEL | ||
| X axis | Mm (in) | 410 (16) |
| Z axis | Mm (in) | 1800 (70) |
| SPINDLE | ||
| Spindle speeds (4 Steps) | rpm | 13-1600 /11-1000 |
| Spindle bore | Mm (in) | 156 (6) |
| Spindle power | KW | 15 |
| Spindle mount | A2-11 | |
| Chuck size | in | 16.0 |
| MOTORS | ||
| X-axis servo motor output | KW (HP) | 1.5 (2.0) |
| Z-axis servo motor output | KW (HP) | 2.3 (3.0) |
| Coolant pump motor | HP | 1/4 |
| FEEDRATE | ||
| X axis | M/min | 0-5 |
| Z axis | M/min | 0-5 |
| TAILSTOCK | ||
| Quill taper | M.T. | 5 |
| Quill motor | FAGOR 8055 15KW (20HP) | |
| Quill stroke | Mm (in) | 230 (9.0) |
| Quill diameter | Mm (in) | Ø95 (3.75) |
| Length | mm | 5020 |
| Width | mm | 1850 |
| Height | mm | 2045 |
| Weight | lbs | 12500 |
