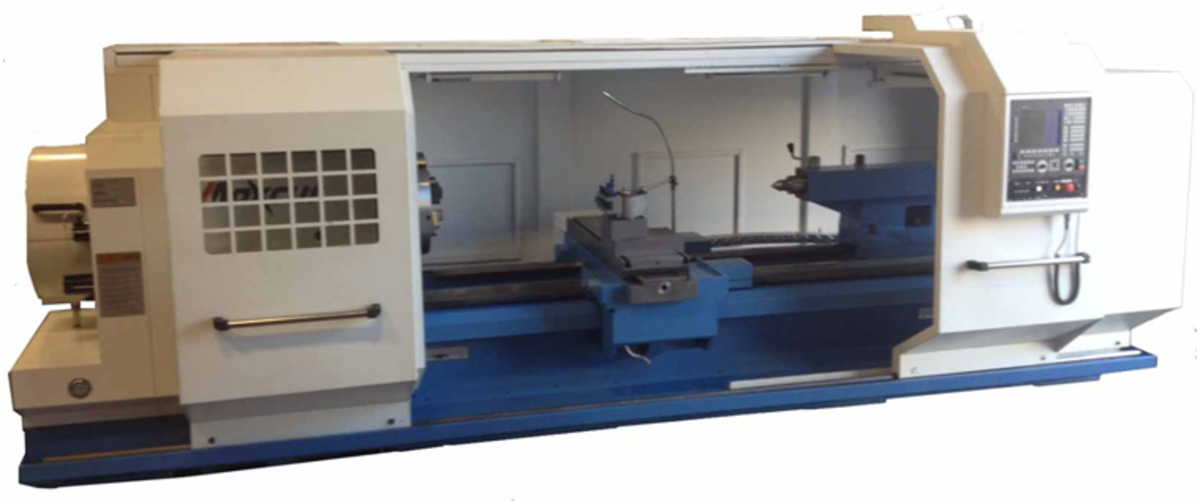

MAXCUT MLNC-13/43120
FAGOR 8055 control
40HP servo spindle motor
Heavy duty 4-way automatic turret or Manual quick change tool post
2 speed gear change on spindle
2 - 4 jaw chuck in front/back
Back splash guard with travelling door
Rear chip conveyor (included) / front chip conveyor (optional)
6.3” diameter tailstock quill with 12” travel
2 speed quill feed
Heavy duty 30”wide bed way
32,000Lbs heavy-duty structure frame
Follow rest
Request Quote on This Model
SPECIFICATIONS
| Swing over bed | Mm (in) | 1100 (43.3) |
| Swing over cross slide | Mm (in) | 680 (26.75) |
| Max cutting diameter | Mm (in) | 1016 (40.00) |
| Max cutting length | Mm (in) | 2800 (110.24) |
| Distance between centers | Mm (in) | 3000 (120.00) |
| Bar capacity | In | 13.50 |
| Steady rest | Mm (in) | 50-470 (1.96-18.5) |
| Width of bed | Mm (in) | 755 (29.72) |
| Load capacity(between centers) | Kgs(lbs) | 5000 (11023.11) |
| TRAVEL | ||
| X axis | Mm (in) | 540 (21.26) |
| Z axis | Mm (in) | 2800 (110.23) |
| SPINDLE | ||
| Spindle speed range | rpm | 8-400 |
| Spindle bore | Mm (in) | 355 (13.98) |
| Spindle power | HP | 40 |
| Spindle mount | A2-20 | |
| Chuck size | in | 32” 4 jaw front/back |
| TURRET | ||
| Number of tool stations | 4 | |
| Shank height | Mm (in) | 40 x 40 (1.57 x 1.57) |
| FEEDRATE | ||
| X axis | M/min | 4 |
| Z axis | M/min | 8 |
| TAILSTOCK | ||
| Quill taper | M.T. | 5 |
| Quill stroke | Mm (in) | 300 (11.81) |
| Quill diameter | Mm (in) | 160 (6.29) |
| MACHINE SIZE | ||
| Power requirement | 75 KVA / 400 V | |
| Machine length | Mm (in) | 6300 (248.03) |
| Machine width | Mm (in) | 2520 (99.21) |
| Machine height | Mm (in) | 2120 (83.46) |
| Total machine weight | kg (lbs) | 12000 (26455.47) |
