MAXCUT MA-U-30200-12
TWIN TURRET/ TWIN X AXIS CNC LATHE
FAGOR 8060 10.4" COLOR TFT-LCD SCREEN
22/33 KW SPINDLE MOTOR
SPINDLE SPEED 700RPM on 10" bore, 568RPM on 12" bore
4 step gear change spindle speed for heavy duty jobs
5.2KW X-AXIS SERVO MOTOR 5.2KW Z-AXIS SERVO MOTOR+ 1:4 Plenty Gear Reducer
SPINDLE BORE 10"/12",
SPINDLE NOSE A2-15/A2-20
BED WIDTH 510MM (20")

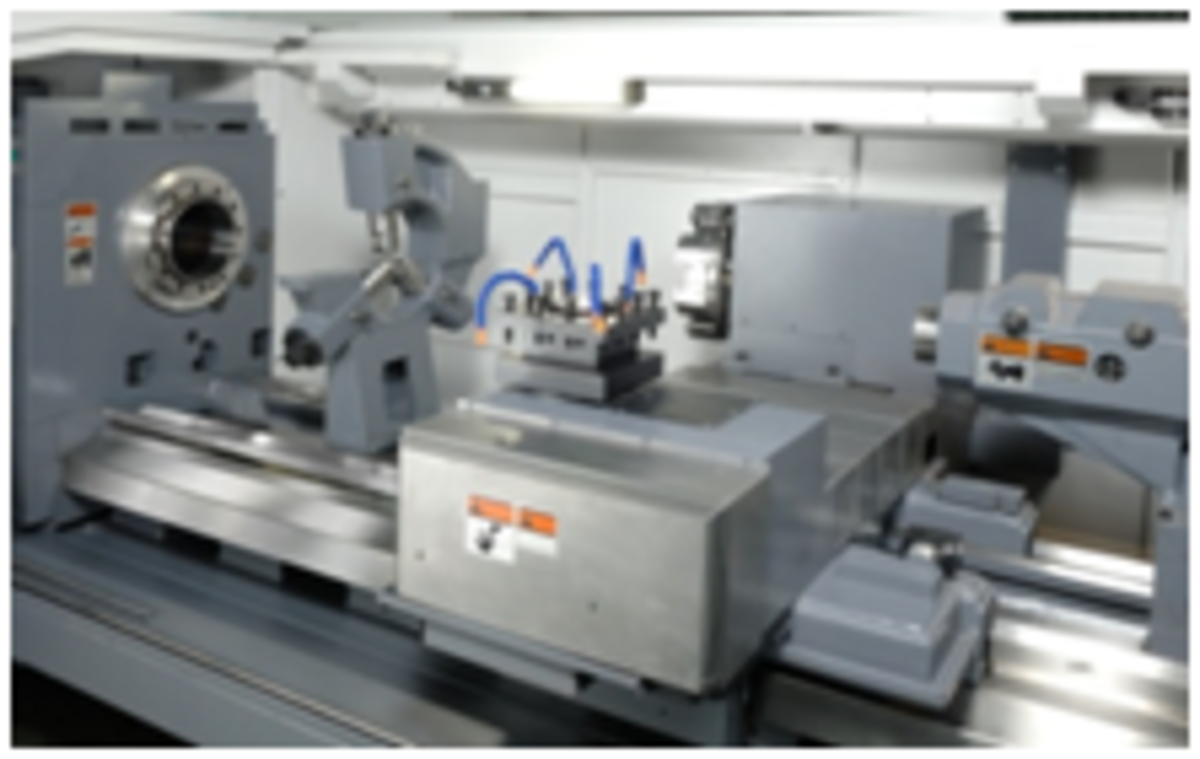

Twin X axis for higher productivity.
Twin turret-H4-250 heavy duty hydraulic 4 position turret;
V8-100 8 position hydraulic turret
24" AMERICAN 4-JAW CHUCK (DIRECT MOUNTED) (TWO PIECE JAW TYPE)
25" Bison 3-JAW SCROLL CHUCK DIRECTLY MOUNT (TWO PIECE JAW TYPE)

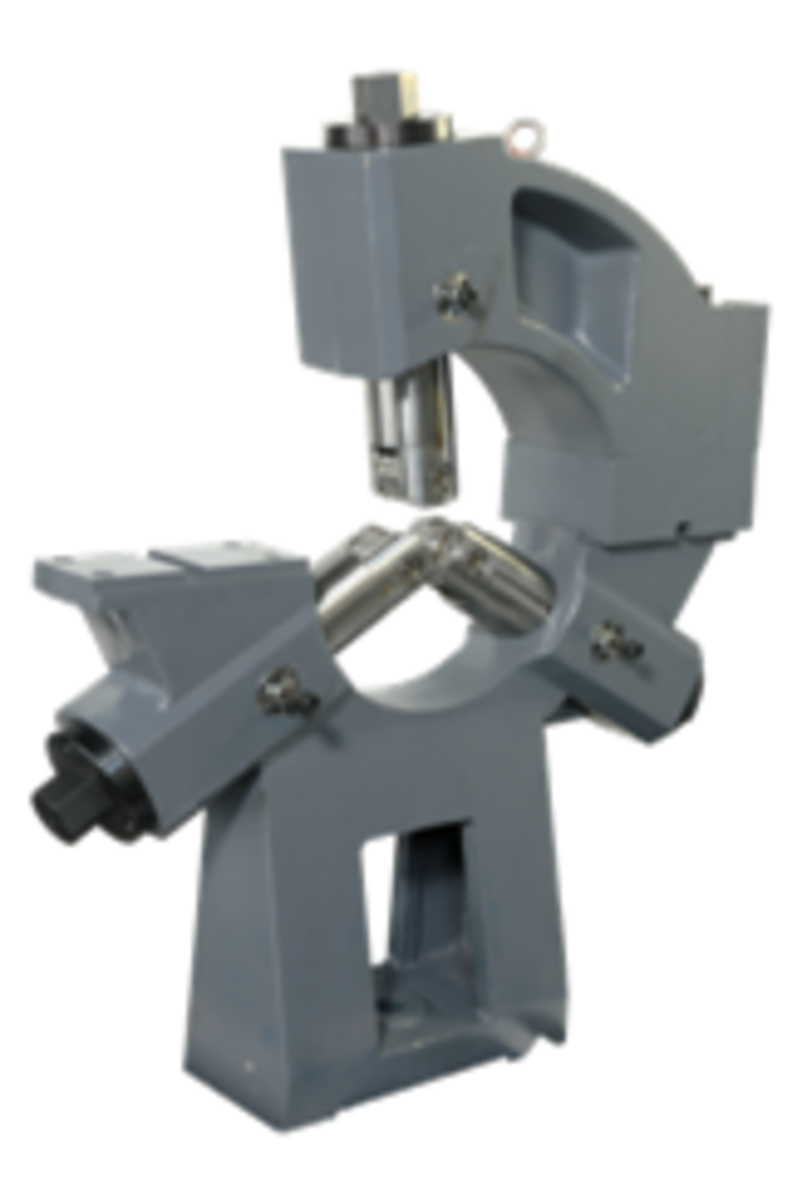

SPECIALY DESIGNED C-TYPE STEADY REST CAPACITY: ¢30-300mm (QUILL DIAMETER 80mm)

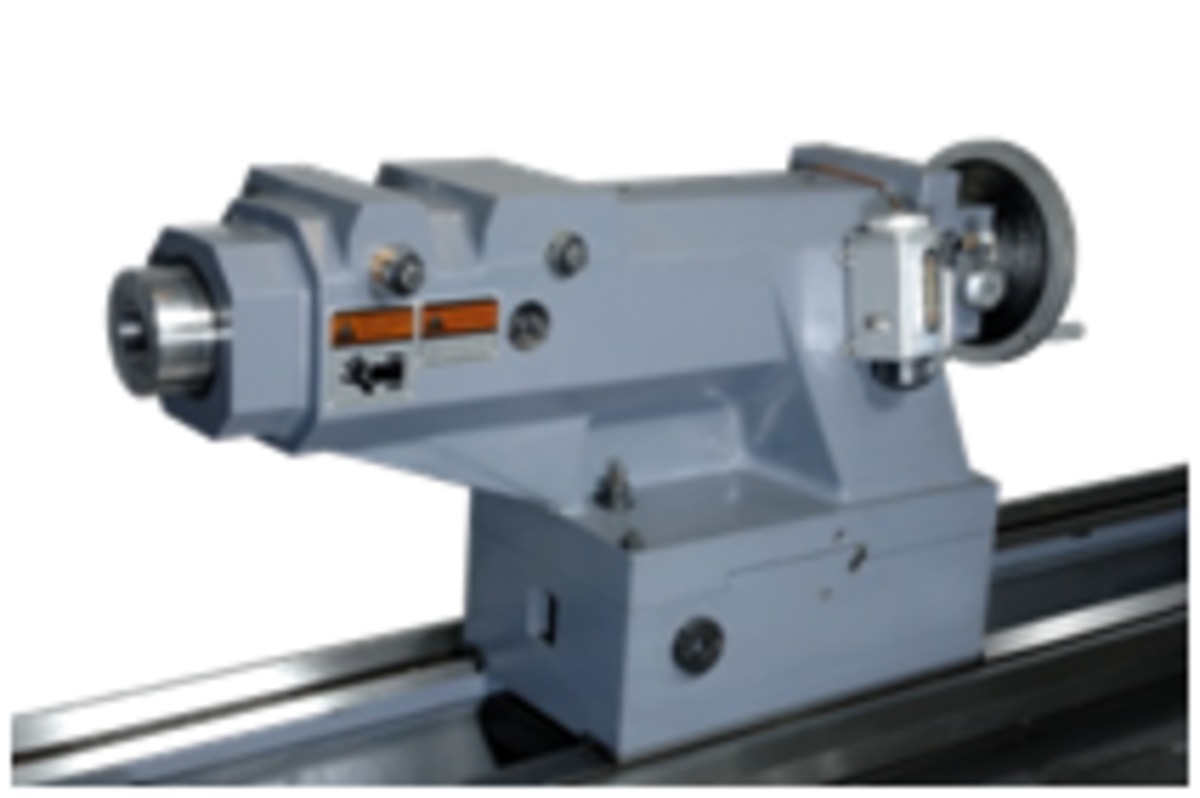

TAILSTOCK QUILL: 4" /105mm QUILL AND MOVEDS BY HAND WHEEL
TAILSTOCK BODY MOVES: BY CARRIAGE
FULL GUARDING REAR CHIP CONVEYOR, ONE CHIP CART
Z-AXIS BALL SCREW :63MM
AUTO LUBRICATION SYSTEM
COOLANT SYSTEM
AIR CONDITIONER OF ELECTRIC CABINET
HALOGEN LIGHTS,
TOOLBOX & TOOLS
SPINDLE SLEEVE, SPINDLE CENTER, TAILSTOCK CENTER
Request Quote on This Model
Technical Specifications
| Swing over bed | 34"(870mm) |
| Swing over cross slide | 20"(505mm) |
| Center height | 20"(505mm) |
| Bed width | 20" (510mm) |
| Spindle bore | 12"(305mm) |
| Spindle nose | A2-15/A2-20 |
| Spindle speed | 4-568RPM |
| Spindle center | MT#6 |
| Bed way | 3 V way with 1 flat way |
| Twin Turret | H4-250 heavy duty hydraulic 4 position turret V8-100 8 position hydraulic turret |
| Tool size | 1-1/4" (32mm) |
| X1/X2 axis traverse | 20"(505mm) |
| Z axis traverse | 200"(5000mm) |
| X1/X2 axis rapid traverse | 6M/min |
| Z axis rapid traverse | 6M/min |
| Tailstock quill diameter | 4"(105mm)+Live center(MT#6) |
| Tailstock quill traverse | 7.9" (200mm) |
| Tailstock center Taper | MT6 |
| Tailstock body movement | Move by carriage |
| Tailstock quill movement | Manual |
| X1/ X2 axis servo motor | 5.2KW |
| Z axis servo motor | 5.2KW + 1:4 Plenty Gear Reducer |
| Spindle motor | 22/33KW |
| Lubrication pump - Carriage | Pressure-Relief Electric Lubricator 25W |
| Lubrication pump - Spindle | 1/4 HP PUMP |
| Coolant pump motor | 5 Bar |
| Hydraulic pump motor | 2HP |
| Chip Removing | Rear chip conveyor |
| Dimensions WxHxL | 9400mm (112" x 83" x 291"/370") |
| Weight | 16860kg(37,092Lbs) |
Optional Equipment
Heavy duty 12 position Power turret + C axis
Heavy duty Power turret tooling package
-2 axial holders
-4 radial holders
-4 ID holders
-4 OD holders
-1 set of sleeves
