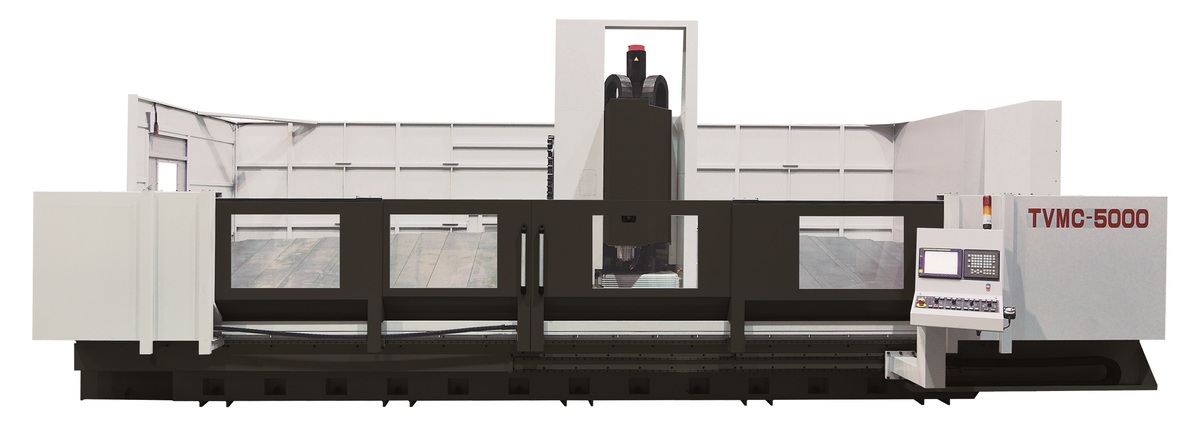

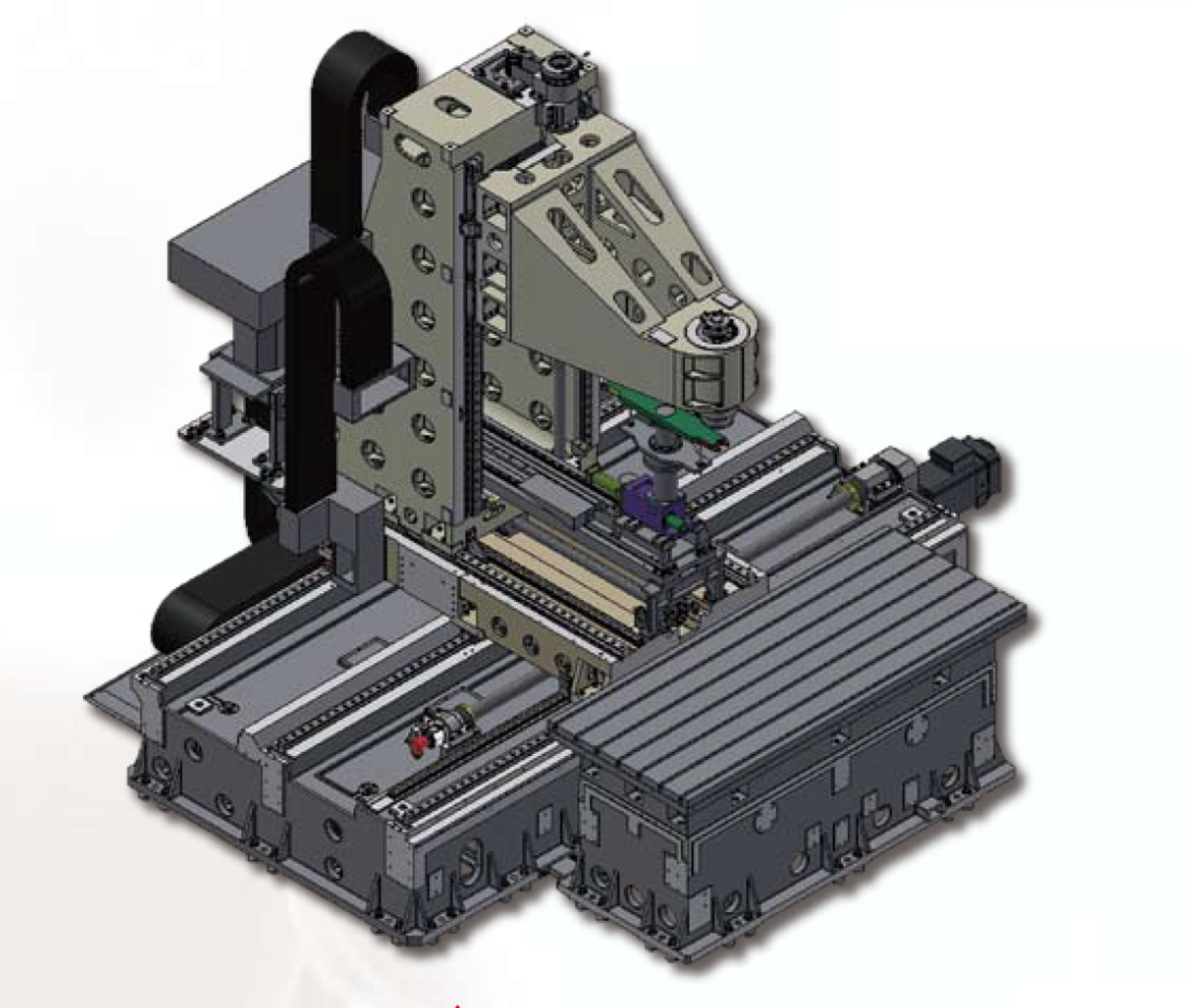

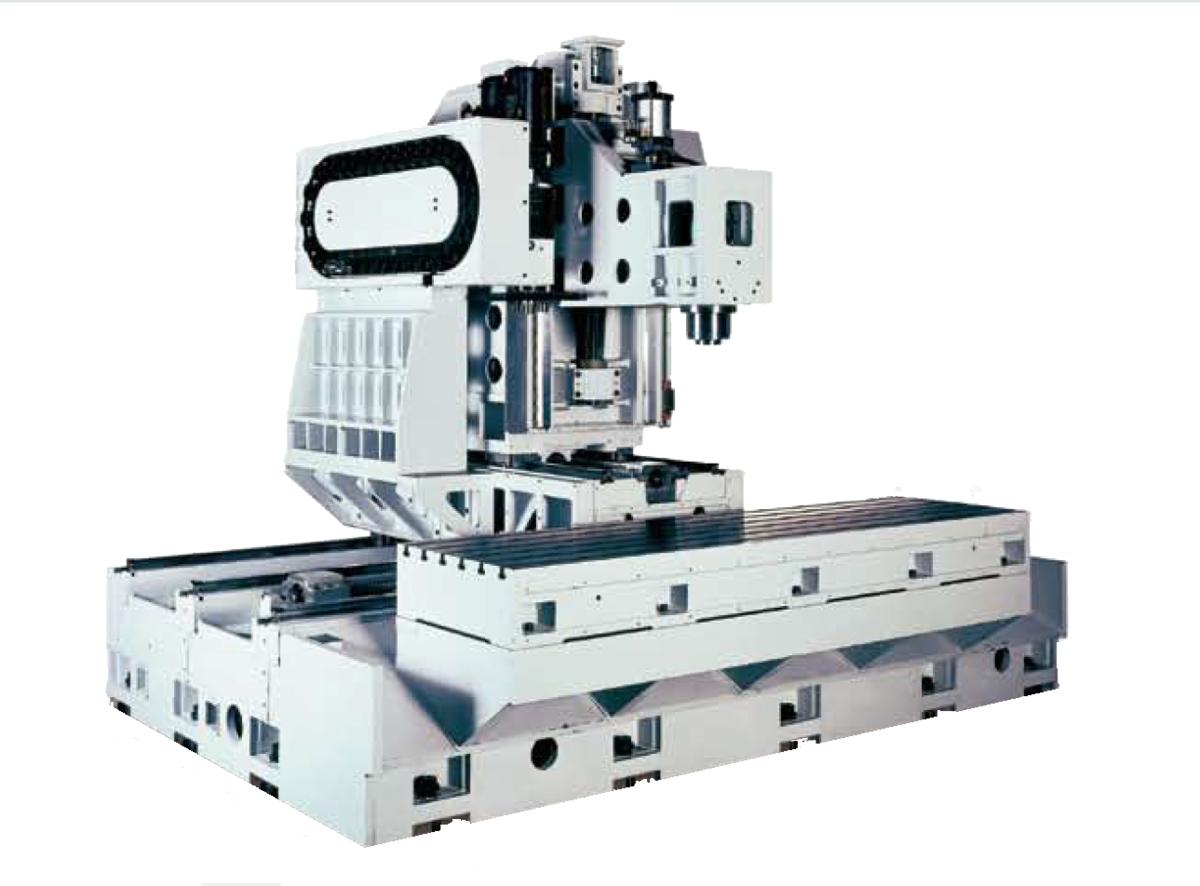

TVMC
STANDARD FEATURES & ACCESSORIES
FULL SPLASH GUARD WITH TOP ROOF
PROGRAMMABLE COOLANT SYSTEM
AUTOMATIC LUBRICATION SYSTEM
SPINDLE AIR BLAST SYSTEM
WORKING LAMP ALARM LAMP
M.P.G.
INDICATION LAMP FOR DWELL & END OF JOB
SPINDLE #40 TAPER & 24 ARM ATC
RS-232 TERMINAL INTERFACE PORT
MACHINE & CONTROL MANUALS
TOOLBOX WITH SPANNERS & WRENCHES
CHAIN TYPE CHIP CONVEYORS
Request Quote on This Model
Specifications
| MODEL | TVMC-2000(L) | TVMC-3000(L) | TVMC-4000(L) | TVMC-5000(L) |
| TABLE | ||||
| Overall size | 2400, 3400, 4400, 5400 x 700 (1000) mm | |||
| T slots (size x no x pitch) | 18 x 7 x 100 (125) mm | |||
| Maximum loading | 3000 KG | 4000 KG | 5000 KG | 5500 KG |
| TRAVEL | ||||
| X / Y / Z axis #40 spindle | 2320, 3320, 4320, 5320 mm x 710(1000) mm x 610(1000) mm | |||
| DISTANCES | ||||
| Spindle to column ways | 750 (1281) mm | |||
| Spindle to table top | 150~760 (300~1300) mm | |||
| Floor to table top | 860 (1051) mm | |||
| SPINDLE | ||||
| Taper | 10000 RPM UP TO 24000 RPM | |||
| Speed | 70mm | |||
| Front bearing diameter | 7.5 kw / 11 kw UP TO 42 kw | |||
| Motor | 10000 RPM UP TO 24000 RPM | |||
| FEED RATES X / Y / Z | ||||
| Cutting feedrate | 10M | |||
| Rapid feedrate | 30M / 30M / 30M | 24M / 30M / 30M | 24M / 30M / 30M | 18M / 30M / 30M |
| AUTOMATIC TOOL CHNGER | ||||
| Type of atc | SWING ARM | |||
| No.of atc | 24 (32, 40, 50) | |||
| Max.tool (dia / length) | 150 / 300 mm | |||
| Max.tool weight | 7 kg | |||
| Tool to tool | 3” | |||
| Chip to chip | 10” | |||
| BALLSCREWS ON 3 AXIS | ||||
| Diameter | 50 / 70 / 80 x 50 x 50 mm | |||
| Precision class | C3, 0.008 mm / 300 mm | |||
| Coolant motor power | 1.27 kw | |||
| Coolant tank volume | 600 L ~ 1000 L | |||
| Coolant motor capacity | 20 L / Min. | |||
| Lubrication motor power | 25 Watt | |||
| Lubrication tank volume | 4L | |||
| ACCURACY | ||||
| Positioning | JIS 6338 : ±0.005 mm / 300 mm VDI 3441: P0.015 ~ P0.02 mm | |||
| Repeatability | JIS 6338 : ±0.003 mm VDI 3441: PS0.01 ~ PS0.015 mm | |||
| Roundness | JIS 6338 : ±0.01 mm / 300 mm DIAMETER | |||
| MISCELLANEOUS | ||||
| Machine net weight | 21000 kg ~ 40000 kg | |||
| Pneumatic required | 6 kg | |||
| Guarding | FULL GUARD & ROOF EXCEPT TVMC-5000 IS HALF GUARD | |||
