FBM

Download
  • FBM Catalogue
Product Image Product Image Product Image

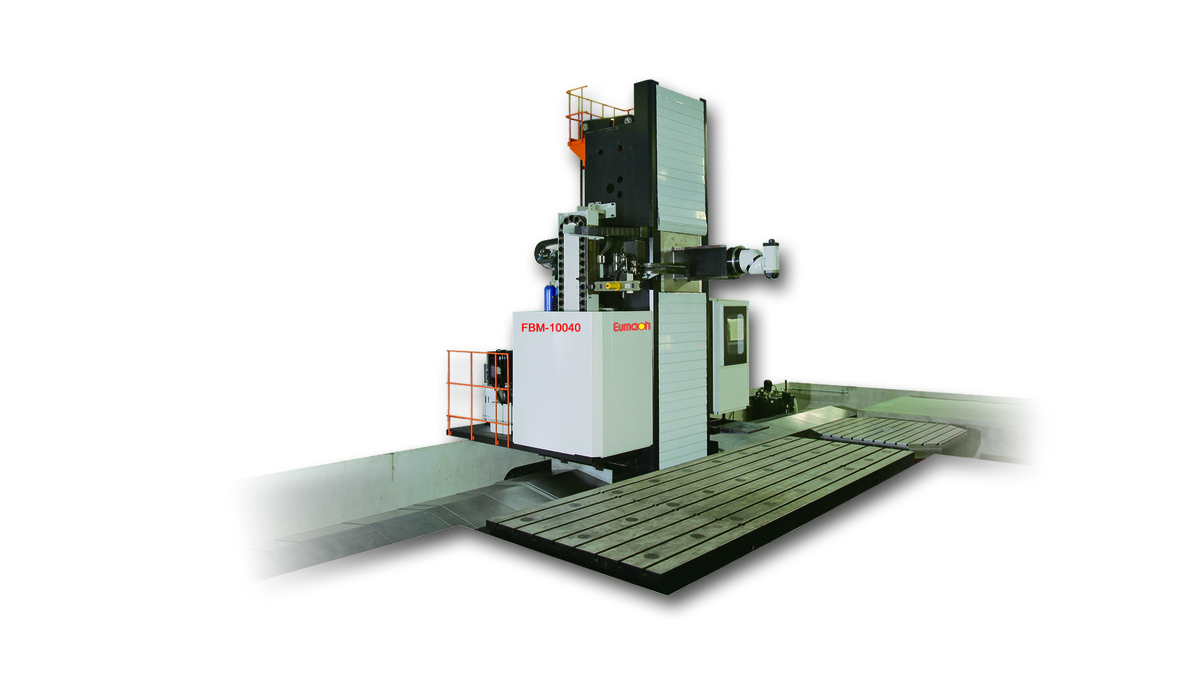

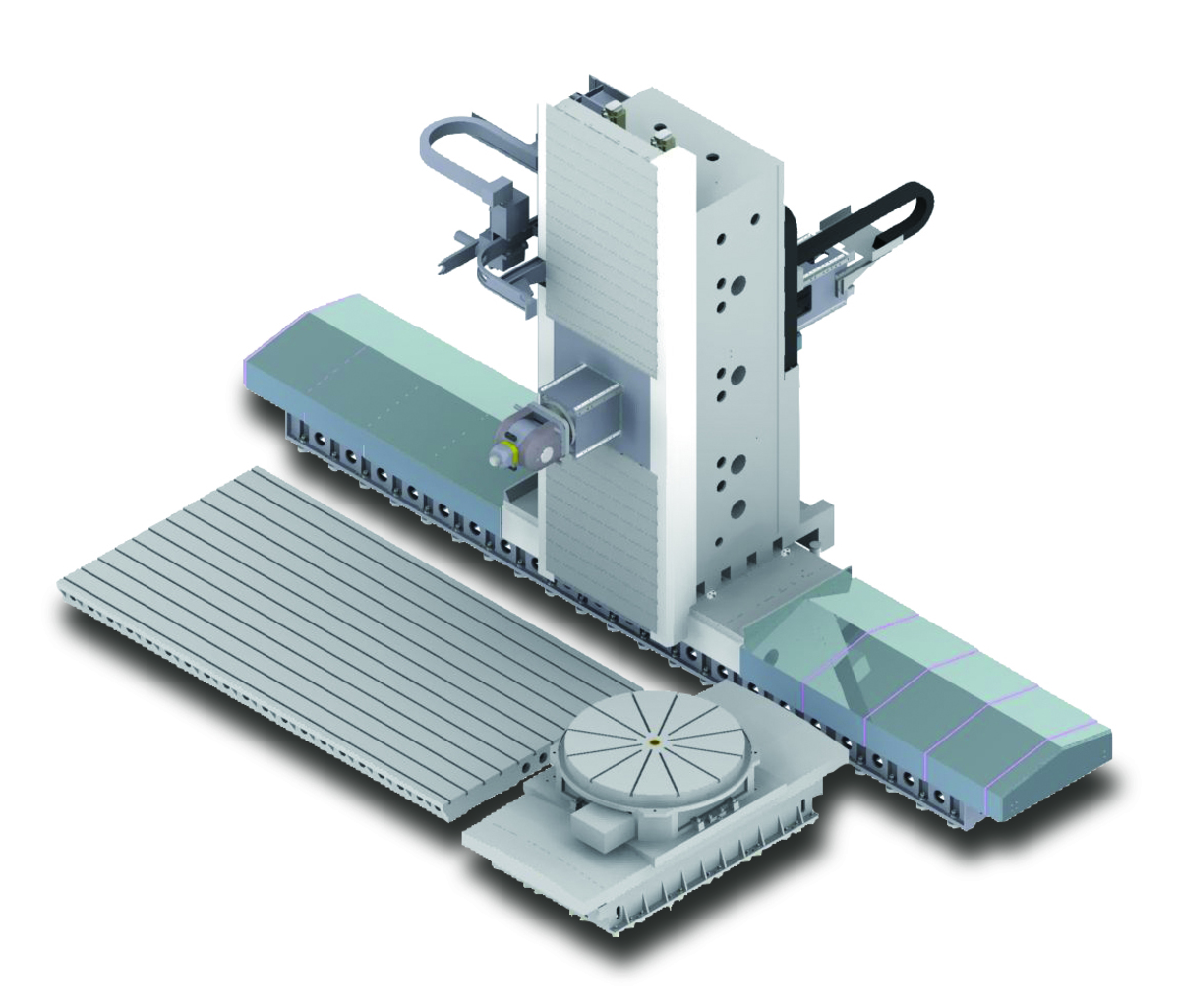

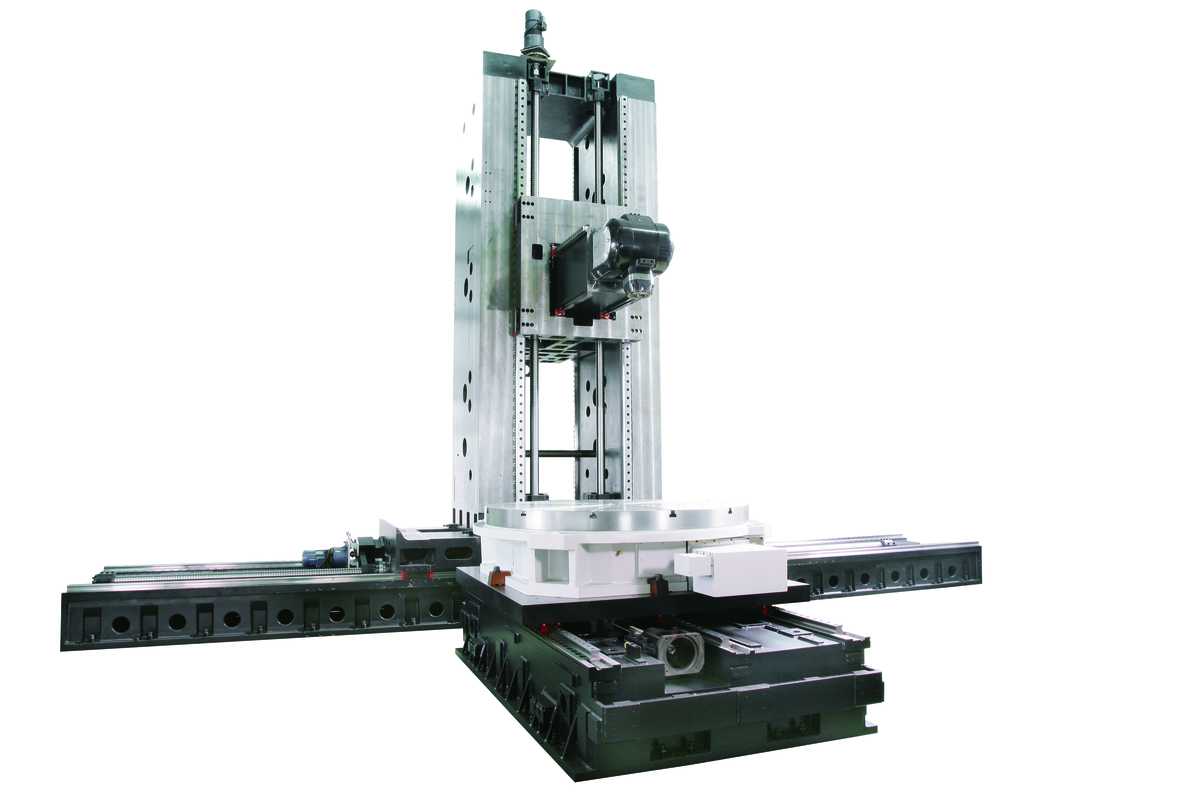

Floor type boring milling center. 4M~20M X axis travel

Request Quote on This Model

Specifications

Floor type boring milling centers:                 FBM-4020 ~FBM-20040
Axis Travel X – column right & left 4M,6M,8M,10M,12M,14M,16M,18M,20M
Y – spindle head up & down 2M, 2.5M, 3M, 3.5M, 4M
Z – ram forward & backward 1.2M
W- quill forward & backward 0.7M
Guide ways Dimension X – column right & left 2 x 65mm rails, total 10 runner blocks
Y – spindle head up & down 2x65mm+2x45mm rails, total 8 runner blocks
Z – ram forward & backward 4 x 45mm rails, total 8 runner blocks
W- quill forward & backward 2 x 20mm rails, total 4 runner blocks
Axis Transmission X axis Ball screw Ø100mm rotating nut up to 6M travel
Rack pinion Starting from 8M travel, with twin drives
Y axis Ball screw Ø70mm x 2 pieces
Z axis Ball screw Ø50mm x 1 piece
W axis Ball screw Ø40mm x 1 piece
Feed rate Rapid X / Y / Z / W axis 20M / 20M / 10M / 5M per minute
Cutting X / Y / Z / W feed 10M / 10M / 8M / 5M per minute
Minimum setting 0.001MM
Castings Dimension L / W / H X axis machine bed X axis travel + 5300mm / 1373mm / 420mm
Y axis machine column 1200mm / 1710mm / Y axis travel + 3355mm
Z axis sliding ram 3500mm / 460mm / 520mm
Boring Spindle ( W axis ) Diameter 160mm dia.
Taper & speed BT#50 & 3000 RPM
Torque ( 2 gearboxes ) 3300 Nm maximum at 180RPM
Automatic tool changer (optional) Tool stations 40, 60, 90, 120
Max. tool dia. / length / weight Ø150 mm / 300mm / 25kg
Location fixed on traveling column

Optional Tables


Optional Milling Heads
