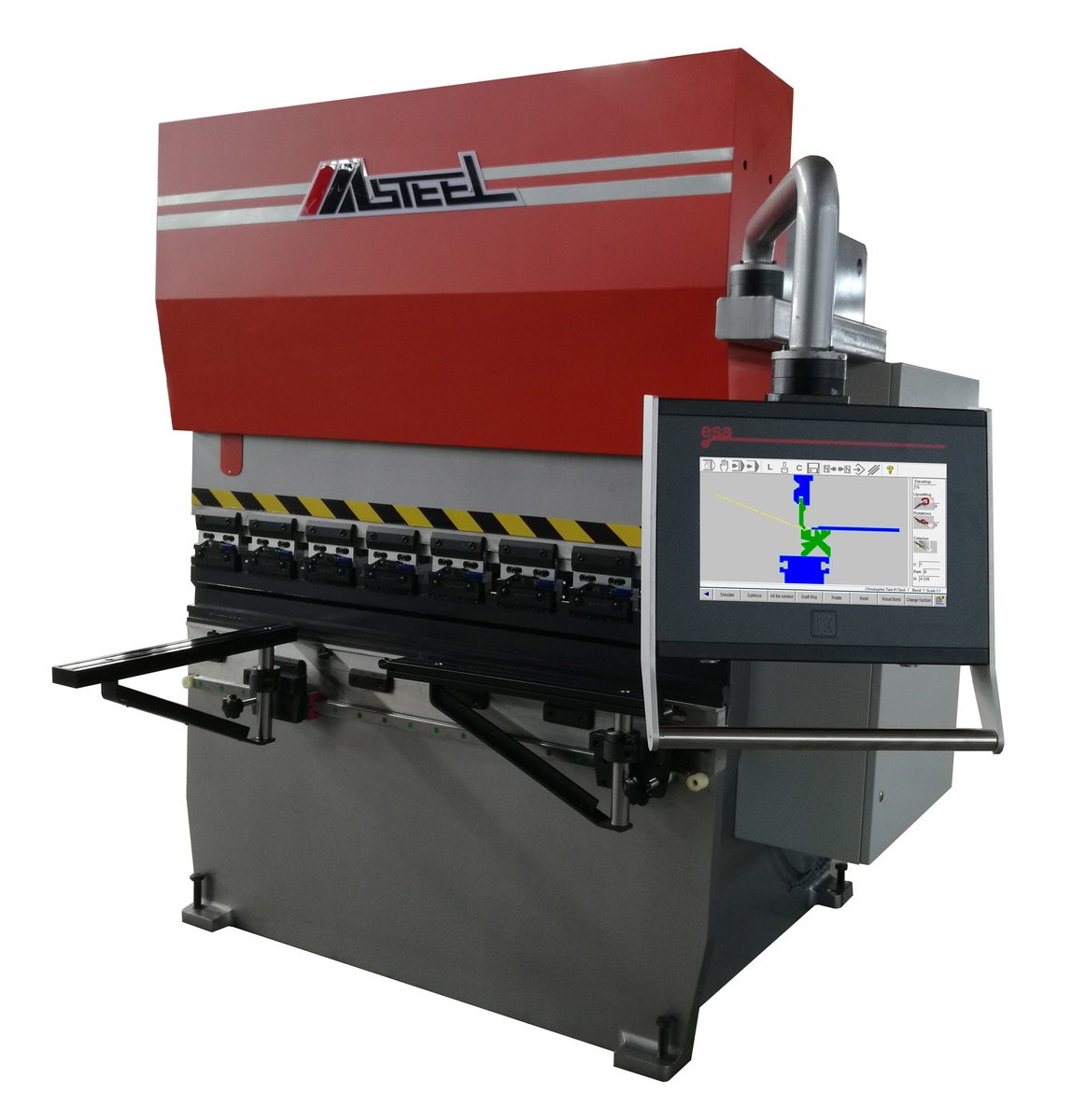

Small High Speed CNC Brake
STANDARD EQUIPMENT:
Two axis back gauge
One axis CNC control: X – axis
One axis manual adjustment: R – axis
Fully equipped with Masteel tooling and clamping system
Floating-adjustable die clamping system for various die applications
Hardened and precision ground tool steel gooseneck punch: 53-58RC;100Ton/M(33Ton/Ft) capacity
Hardened and precision ground Masteel 8 openings, 4-way die: HB190-260
2 - Front support arms
OPTIONAL EQUIPMENT:
CNC R axis , Central lubrication, Safety light curtain
Interlock Back Guard, Quick- set front sheet support (2 SETS)
Special top and bottom tools,
Special throat depth (500,600 and 750 mm)
440 or 600V Electrical, Laser protection system for die area
Hydraulic oil coolant, WILA Manuel Anti-Deflection system
Nema 12 Electrical Cabinet w/ Thermal Breaker Disconnect
WILA Hydraulic top and bottom tool holding system
WILA Anti-Deflection System which operates automatically with DNC unit according to tonnage applied
Multi axis control: R, Z1, Z2 up to 6 axis
Request Quote on This Model
Specifications
| Max. Capacity Tons | 60 |
| Max. Bending Length | 5' |
| Distance between Frames | 50.4" |
| Height of Bed | 34" |
| Depth of Throat | 10.24" |
| Length of Ram Stroke | 6.5" |
| Fast Approach Speed IPM | 275 |
| Press Speed IPM | 25 |
| Fast Return Speed IPM | 245 |
| Max. Open Height | 16.1" |
| Main Motor | 10 |
| Back gauge Travel | 28" |
| Weight Lbs | 7716 |
| Dimensions L x W x H | 65 x 51 x 92 |
Optional Three Position Punch clamps
